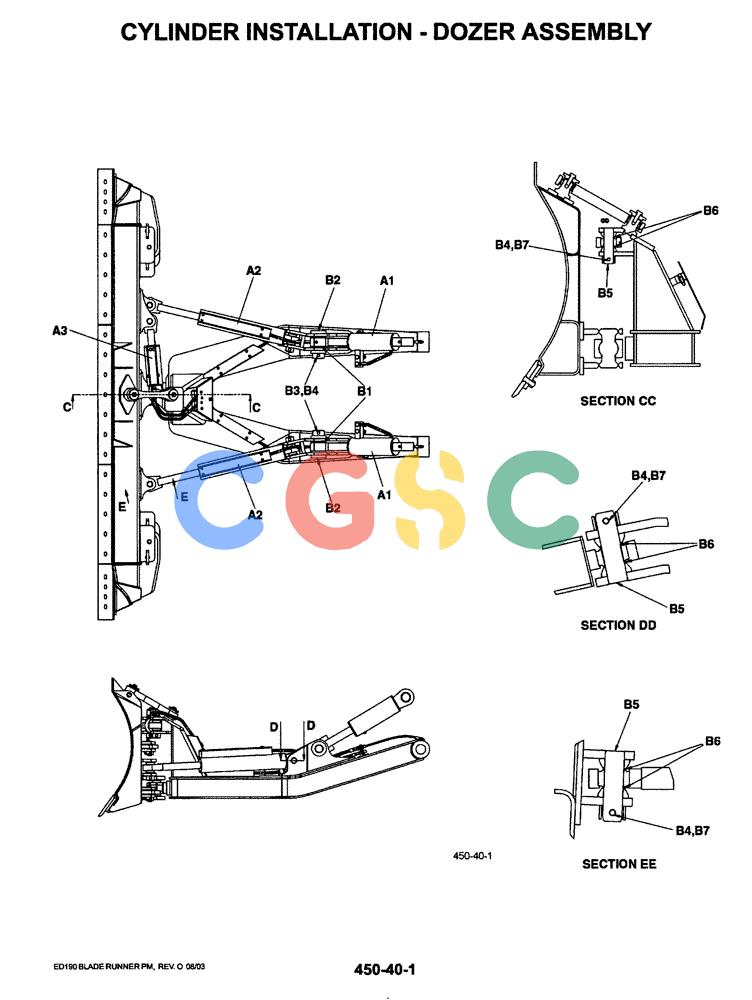

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (03-024) - CYLINDER INSTALLATION - DOZER ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YY01VU0001F1 | [2] | LIFT CYLINDER,Double Acting, 57.15mm Rod, 209.55mm Stroke | KOBCYLINDER, HYD. LIFT, Remarks: SEE CPM |
| A2. | YY01VU0003F1 | [2] | CYLINDER,Double Acting, 50.8mm Rod, 552.45mm Stroke | KOBCYLINDER, HYD. ANGLE, Remarks: SEE CPM |
| A3. | YY01VU0005F1 | [1] | CYLINDER,Double Acting, 50.8mm Rod, 127mm Stroke | KOBCYLINDER, HYD. TILT, Remarks: SEE CPM |
| B1. | YY51BU1070P1 | [6] | SHIM | KOB(1.6) |
| B2. | YY51BU1008P2 | [2] | PIN,63.4mm OD x 214mm L | KOBOD 63.4 x 214mm Long |
| B3. | ZS18C12120 | [2] | SCREW,Hex, M12 x 120mm | KOBM12x1.75x120mm |
| B4. | ZN18C12010 | [16] | NUT | KOBM12x1.75mm |
| B5. | YY51BU1010P2 | [6] | PIN,44.35mm OD x 164mm L | KOBOD 44.35 x 164mm Long |
| B6. | YY51BU1100P2 | [12] | SHIM | KOB(3.5) |
| B7. | ZS18C12085 | [6] | SCREW,Hex, M12 x 85mm | KOBM12x1.75x85mm |
![]()
