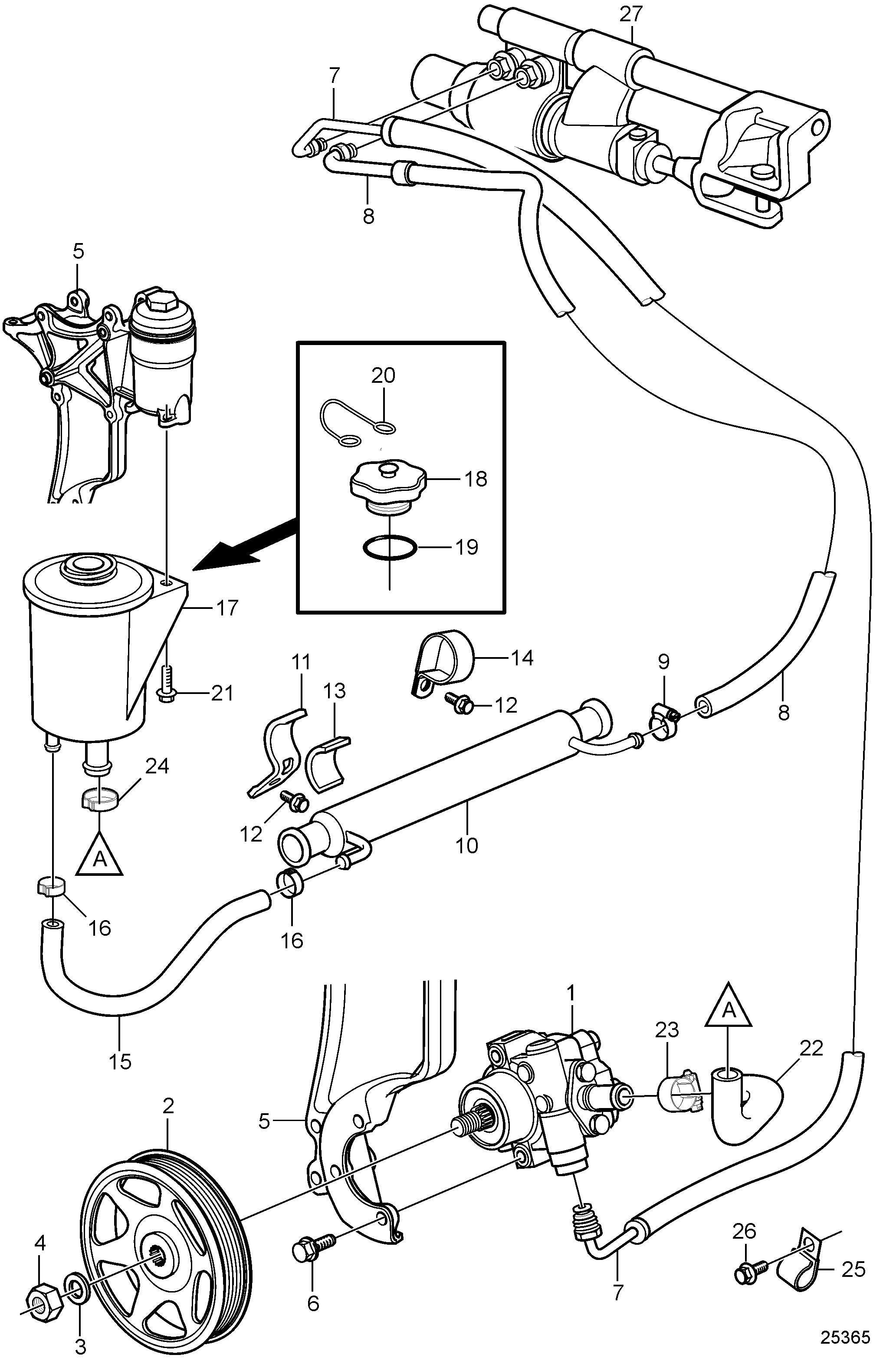

沃尔沃零件查询5.7GiE-300-R; 5.7GXiE-320-RSteering SystemPower SteeringEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3887373
|
[1] |
Servo pump
|
|
| 2. |
3889611
|
[1] |
Pulley
|
|
| 3. |
3889615
|
[1] |
Washer
|
|
| 4. |
3889613
|
[1] |
Nut
|
|
| 5. |
21573817
|
[1] |
Bracket
|
|
| 6. |
3595494
|
[3] |
Screw
|
|
| 7. |
3888739
|
[1] |
Hose assembly
|
|
| 8. |
21452588
|
[1] |
Hose assembly
|
|
| 9. |
3860413
|
[1] |
Hose clamp
|
|
| 10. |
21399019
|
[1] |
Hydraulic oil cooler
|
|
| 11. |
21434106
|
[1] |
Bracket
|
Replaced by 3852490
|
| 12. |
3853393
|
[1] |
Flange screw
|
|
| 13. |
21434108
|
[1] |
Support rubber
|
|
| 14. |
3852490
|
[1] |
Attaching clamp
|
|
| 15. |
21399023
|
[1] |
Hose
|
|
| 16. |
982663
|
[2] |
Hose clamp
|
|
| 17. |
3887375
|
[1] |
Reservoir
|
|
| 18. |
|
|
|
Not sold separately
|
| 19. |
|
|
|
Not sold separately
|
| 20. |
|
|
|
Not sold separately
|
| 21. |
946544
|
[2] |
Flange screw
|
|
| 22. |
21355283
|
[2] |
Hose
|
|
| 23. |
3853794
|
[2] |
Hose clamp
|
|
| 24. |
980038
|
[1] |
Hose clamp
|
Replaced by next part number
|
| 24. |
|
|
|
|
| 25. |
984038
|
[1] |
Clamp, J
|
|
| 26. |
3853557
|
[1] |
Flange screw
|
3/8-16 UNC, L=0.75'' (19mm)
|
| 27. |
|
|
|
See drive catalog
|
