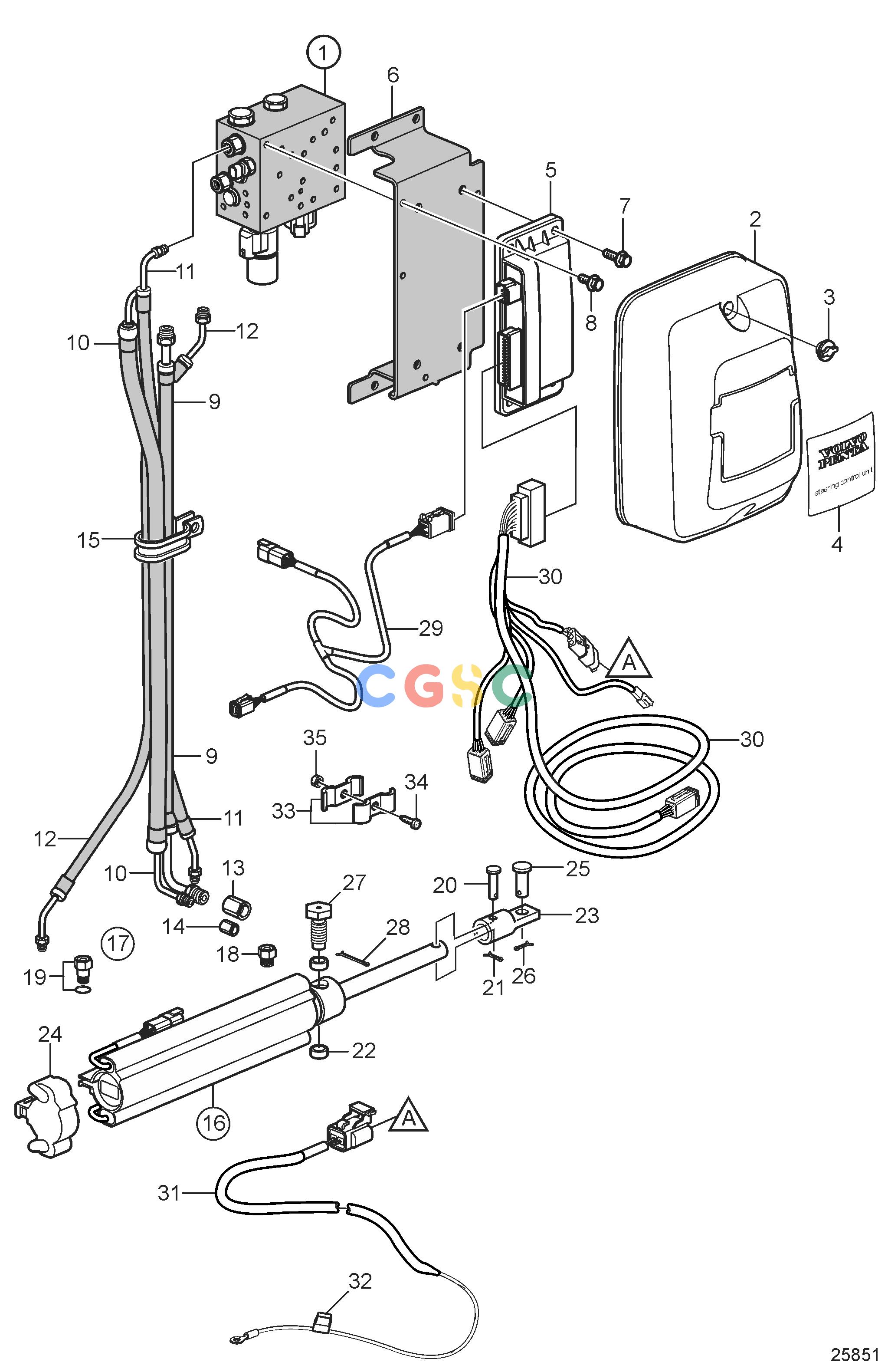

沃尔沃零件查询5.7GiE-300-R; 5.7GXiE-320-RSteering SystemElektronisk styrningEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Shaded parts show changes from earlier design.
|
| 1. |
47701920_050
|
|
Valve body
|
|
| 2. |
21198760
|
[1] |
Cover
|
|
| 3. |
3841608
|
[2] |
Wing nut
|
|
| 4. |
21199454
|
[1] |
Decal
|
|
| 5. |
21469067
|
[1] |
Control unit
|
SCU
|
| 5. |
3809286
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 5. |
3809285
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 6. |
21453160
|
[1] |
Bracket
|
changed from earlier design
|
| 7. |
995525
|
[4] |
Flange screw
|
|
| 8. |
946544
|
[3] |
Flange screw
|
|
| 9. |
21438496
|
[1] |
Hose, return
|
changed from earlier design, Replaced by next part number
|
| 9. |
22001321
|
[1] |
Hose
|
|
| 10. |
21438494
|
[1] |
Hose, pressure
|
changed from earlier design
|
| 11. |
21438492
|
[1] |
Hose, starboard
|
changed from earlier design
|
| 12. |
21438490
|
[1] |
Hose, port
|
changed from earlier design
|
| 13. |
984379
|
[1] |
Nipple
|
|
| 14. |
984378
|
[1] |
Nipple
|
|
| 15. |
3852837
|
[2] |
Clamp
|
Part not sold
|
| 16. |
21243557
|
[1] |
Steering cylinder
|
Replaced by next part number
|
| 16. |
21937825
|
[1] |
Steering cylinder
|
|
| 16. |
|
|
|
Not sold separately
|
| 17. |
21298577
|
[1] |
Kit, fittings
|
|
| 18. |
|
|
|
¼'' NPT, Not sold separately
|
| 19. |
|
|
|
Not sold separately
|
| 20. |
|
|
|
Not sold separately
|
| 21. |
|
|
|
Not sold separately
|
| 22. |
|
|
|
Not sold separately
|
| 23. |
|
|
|
Not sold separately
|
| 24. |
21277346
|
[1] |
Cap
|
|
| 25. |
21234062
|
[1] |
Clevis pin
|
|
| 26. |
967707
|
[1] |
Split pin
|
|
| 27. |
3850931
|
[2] |
Screw
|
|
| 28. |
3853376
|
[2] |
Split pin
|
|
| 29. |
3588972
|
[1] |
Cable kit, t
|
|
| 30. |
21292450
|
[1] |
Wiring harness
|
SCU
|
| 31. |
21292472
|
[1] |
Wiring harness
|
Power
|
| 32. |
|
|
|
10A
|
| 33. |
984329
|
[2] |
Clamp
|
|
| 34. |
963675
|
[1] |
Hex. socket screw
|
|
| 35. |
944456
|
[1] |
Hexagon nut
|
|
