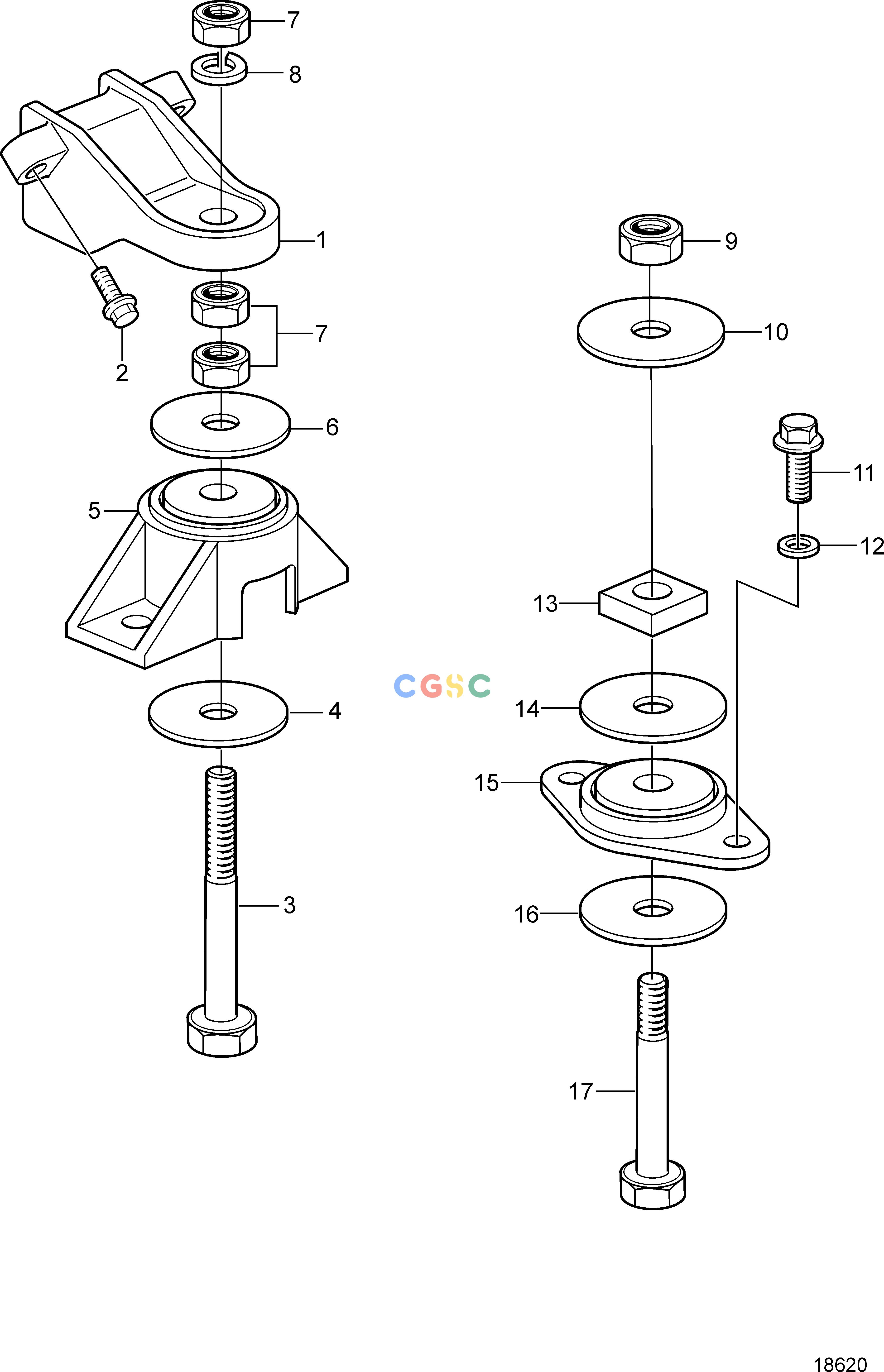

沃尔沃零件查询5.0GXi-F; 5.0GXi-FF; 5.0OSi-F; 5.0OSi-FFEngineEngine MountsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3818718
|
[2] |
Bracket
|
|
| 2. |
3860582
|
[6] |
Flange screw
|
|
| 3. |
3852566
|
[2] |
Bolt
|
|
| 4. |
3852428
|
[2] |
Washer
|
|
| 5. |
3853805
|
[2] |
Rubber cushion
|
|
| 6. |
3852433
|
[2] |
Washer
|
|
| 7. |
3852021
|
[6] |
Nut
|
|
| 8. |
3852090
|
[2] |
Spring washer
|
|
| 9. |
3862657
|
[2] |
Nut
|
|
| 10. |
3852540
|
[2] |
Washer
|
|
| 11. |
959968
|
[4] |
Hexagon screw
|
|
| 12. |
980933
|
[4] |
Washer
|
|
| 13. |
3852539
|
[2] |
Square nut
|
|
| 14. |
3852622
|
[2] |
Washer
|
|
| 15. |
3853806
|
[2] |
Rubber cushion
|
|
| 16. |
3852542
|
[2] |
Washer
|
|
| 17. |
3587962
|
[2] |
Hexagon screw
|
|
