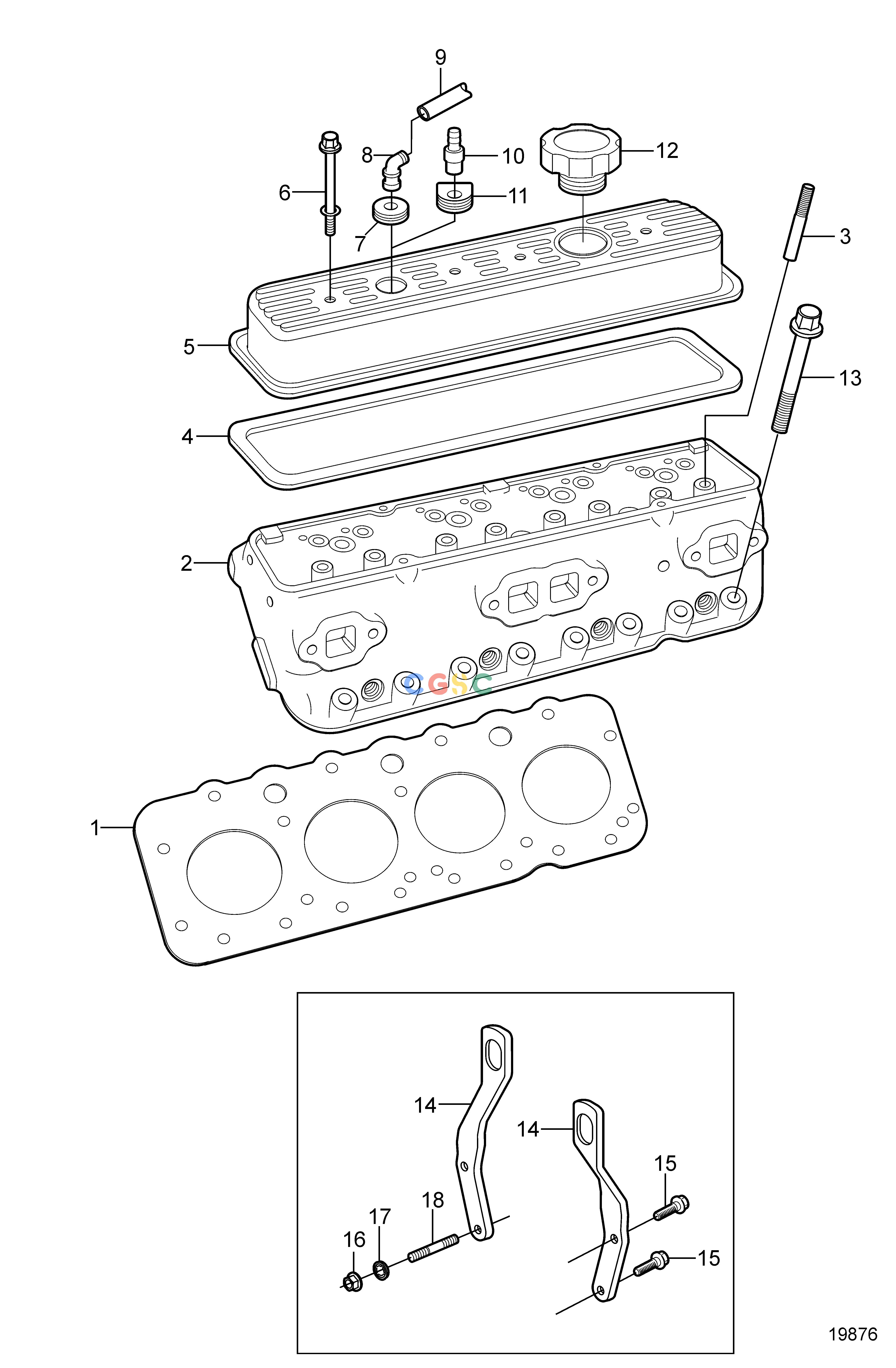

沃尔沃零件查询5.0GXi-F; 5.0GXi-FF; 5.0OSi-F; 5.0OSi-FFEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3853380
|
[2] |
Cylinder head gasket
|
|
| 2. |
3857663
|
[2] |
Cylinder head
|
|
| 3. |
|
|
|
Part not sold
|
| 3. |
3853146
|
[1] |
Stud
|
O.S=0.003'' (0.076mm)
|
| 3. |
3853147
|
[1] |
Stud
|
O.S=.013'' (0.330mm)
|
| 4. |
3852687
|
[2] |
Gasket
|
|
| 5. |
3856928
|
[1] |
Valve cover
|
Starboard
|
| 5. |
3856927
|
[1] |
Valve cover
|
Port
|
| 6. |
3856135
|
[8] |
Bolt
|
|
| 7. |
3852103
|
[1] |
Grommet
|
|
| 8. |
3852104
|
[1] |
Elbow
|
|
| 9. |
3852435
|
[1] |
Hose
|
|
| 10. |
3861989
|
[1] |
Valve
|
Crankcase ventilation
|
| 11. |
3862296
|
[1] |
Grommet
|
|
| 12. |
3854008
|
[1] |
Oil filler cap
|
|
| 13. |
3856122
|
[14] |
Bolt
|
L=3 51/64'' (96mm)
|
| 13. |
3856123
|
[4] |
Bolt
|
L=3 1/16'' (78mm)
|
| 13. |
3856124
|
[16] |
Bolt
|
L=1,62'' (41mm)
|
| 14. |
3862594
|
[2] |
Bracket
|
|
| 15. |
3853557
|
[2] |
Flange screw
|
|
| 16. |
3853404
|
[2] |
Nut
|
|
| 17. |
3860538
|
[2] |
Spring clip, speed
|
|
| 18. |
3860928
|
[2] |
Stud
|
|
