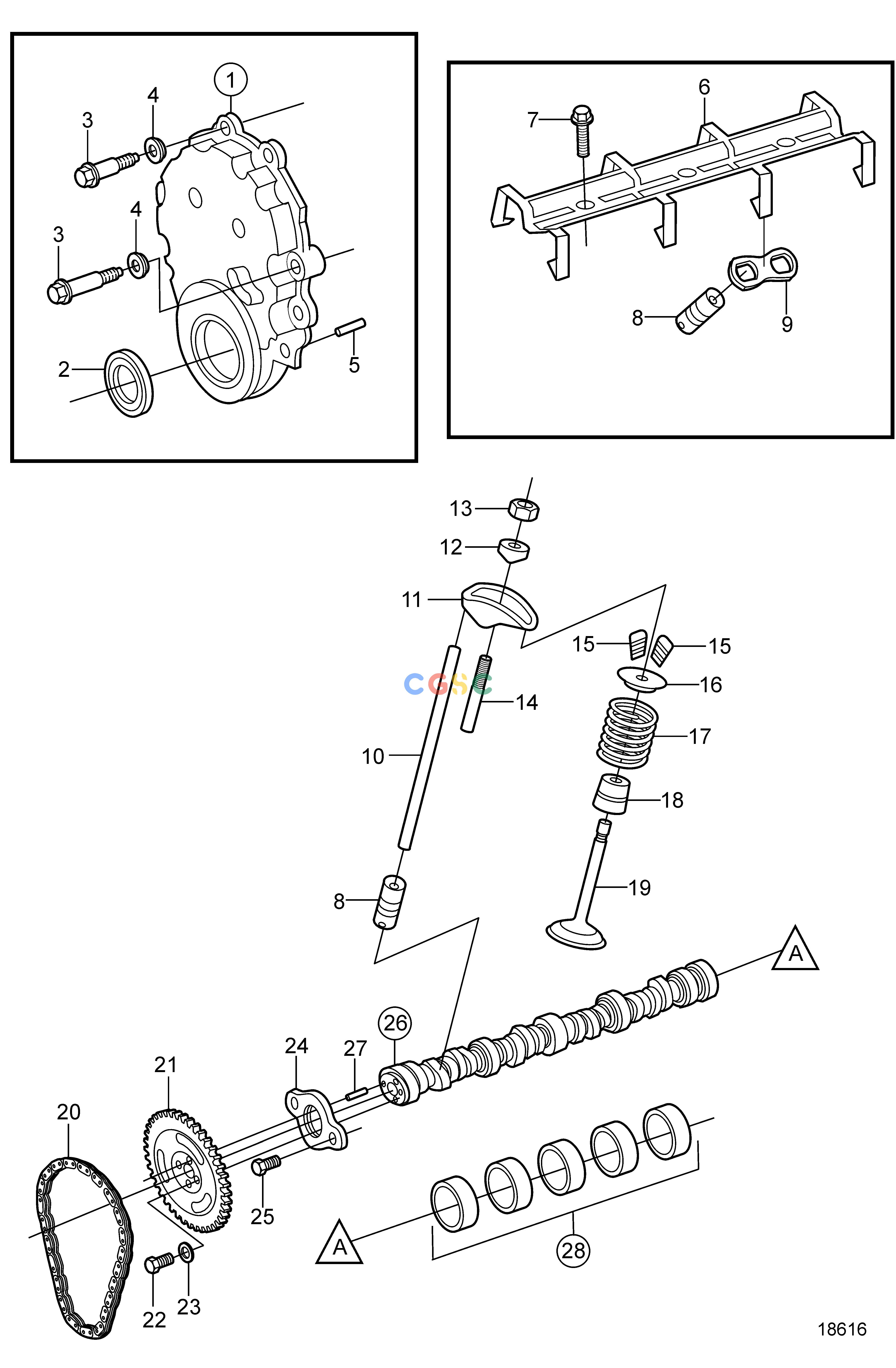

沃尔沃零件查询5.0GXi-F; 5.0GXi-FF; 5.0OSi-F; 5.0OSi-FFEngineCamshaft and Valve TrainEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3862263
|
[1] |
Timing gear cover
|
|
| 1. |
|
|
|
|
| 2. |
3862262
|
[1] |
Sealing
|
|
| 3. |
3855736
|
[2] |
Screw
|
|
| 3. |
3855737
|
[6] |
Screw
|
|
| 4. |
3855739
|
[8] |
Grommet
|
|
| 5. |
3855972
|
[2] |
Pin
|
|
| 6. |
3856144
|
[1] |
Retainer
|
|
| 7. |
|
|
|
|
| 8. |
3856127
|
[16] |
Tappet
|
|
| 9. |
3856139
|
[8] |
Guide
|
|
| 10. |
3856118
|
[16] |
Push rod
|
Replaced by 3863058
|
| 11. |
3853158
|
[16] |
Arm
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
3853146
|
[1] |
Stud
|
O.S=0.003'' (0.076mm)
|
| 14. |
3853147
|
[1] |
Stud
|
O.S=.013'' (0.330mm)
|
| 15. |
3855823
|
[32] |
Valve cotter
|
|
| 16. |
3855816
|
[16] |
Valve cap
|
|
| 17. |
3855815
|
[16] |
Valve spring
|
|
| 18. |
3855814
|
[8] |
Valve stem seal
|
Inlet
|
| 18. |
3862362
|
[8] |
Valve stem seal
|
Exhaust
|
| 19. |
3857666
|
[8] |
Valve, intake
|
Std
|
| 19. |
3855808
|
[8] |
Valve, exhaust
|
Std
|
| 20. |
3852685
|
[1] |
Chain
|
|
| 21. |
3856114
|
[1] |
Sprocket
|
|
| 22. |
3853173
|
[3] |
Bolt
|
|
| 23. |
3856151
|
[3] |
Washer
|
|
| 24. |
3855998
|
[1] |
Retainer
|
|
| 25. |
3853172
|
[2] |
Screw
|
|
| 26. |
3856119
|
[1] |
Camshaft
|
|
| 27. |
3855972
|
[1] |
Pin
|
|
| 28. |
3856162
|
[1] |
Kit
|
|
