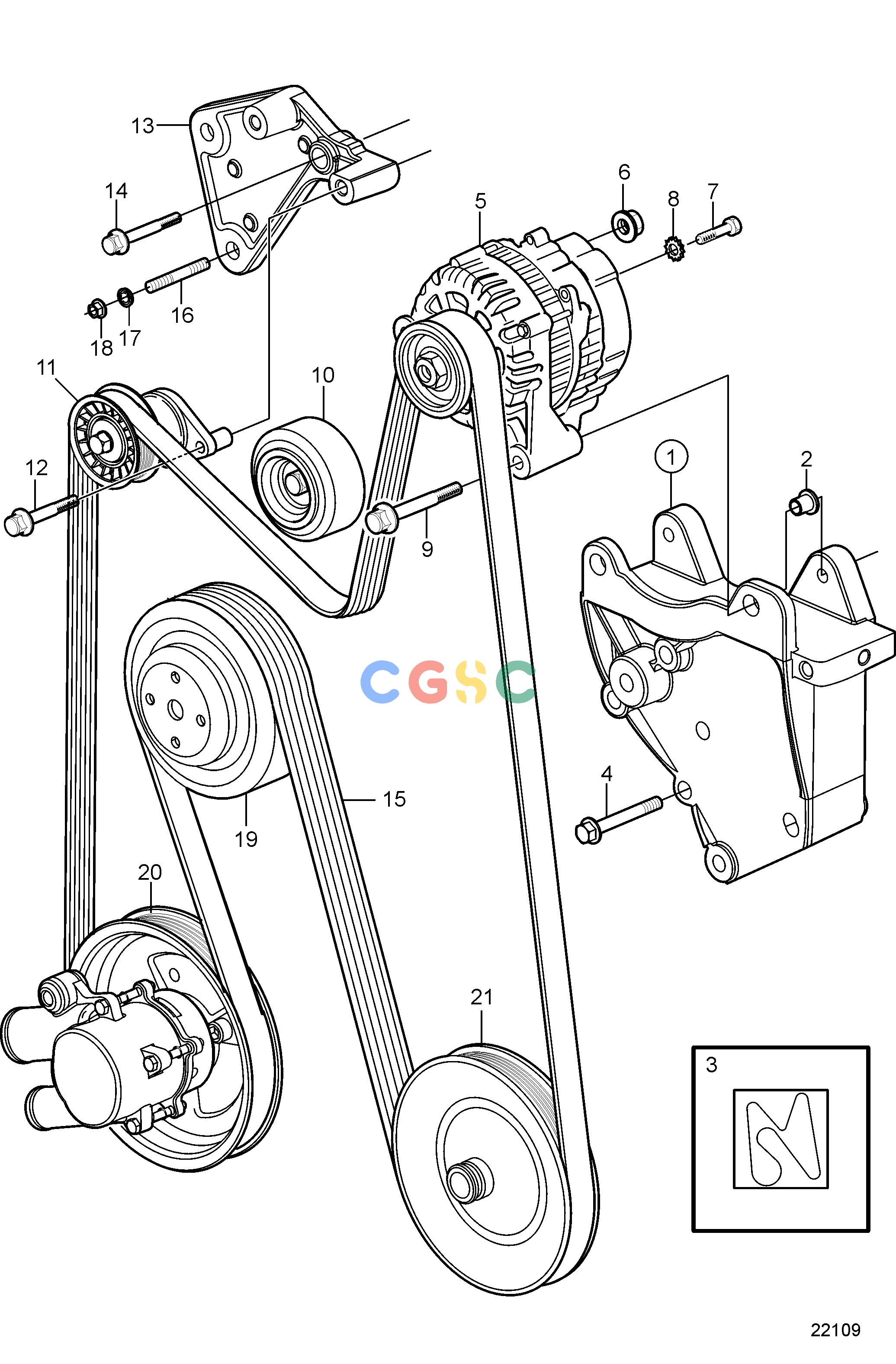

沃尔沃零件查询5.0GXi-F; 5.0GXi-FF; 5.0OSi-F; 5.0OSi-FFElectrical SystemSerpentine Belt and AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025,浏览:次

Pos. |
Part No |
Qty |
Parts name |
Comments |
1. |
3819030
|
[1] |
Bracket
|
|
2. |
3863175
|
[2] |
Bushing
|
|
3. |
3863274
|
[1] |
Decal
|
|
4. |
3860281
|
[3] |
Flange screw
|
|
5. |
3862665
|
[1] |
Alternator
|
|
6. |
945408
|
[1] |
Flange nut
|
|
7. |
3852208
|
[1] |
Screw
|
|
8. |
3852520
|
[1] |
Washer
|
|
9. |
947790
|
[2] |
Flange screw
|
|
10. |
3861009
|
[1] |
Pulley
|
|
11. |
3587858
|
[1] |
Belt tensioner
|
|
12. |
3841928
|
[2] |
Flange screw
|
|
13. |
3817292
|
[1] |
Bracket
|
|
14. |
3841928
|
[1] |
Flange screw
|
|
15. |
3817287
|
[1] |
Belt
|
|
16. |
3860928
|
[2] |
Stud
|
|
17. |
3860538
|
[2] |
Spring clip, speed
|
|
18. |
3853404
|
[2] |
Nut
|
|
19. |
|
|
|
|
20. |
|
|
|
|
21. |
|
|
|
|
