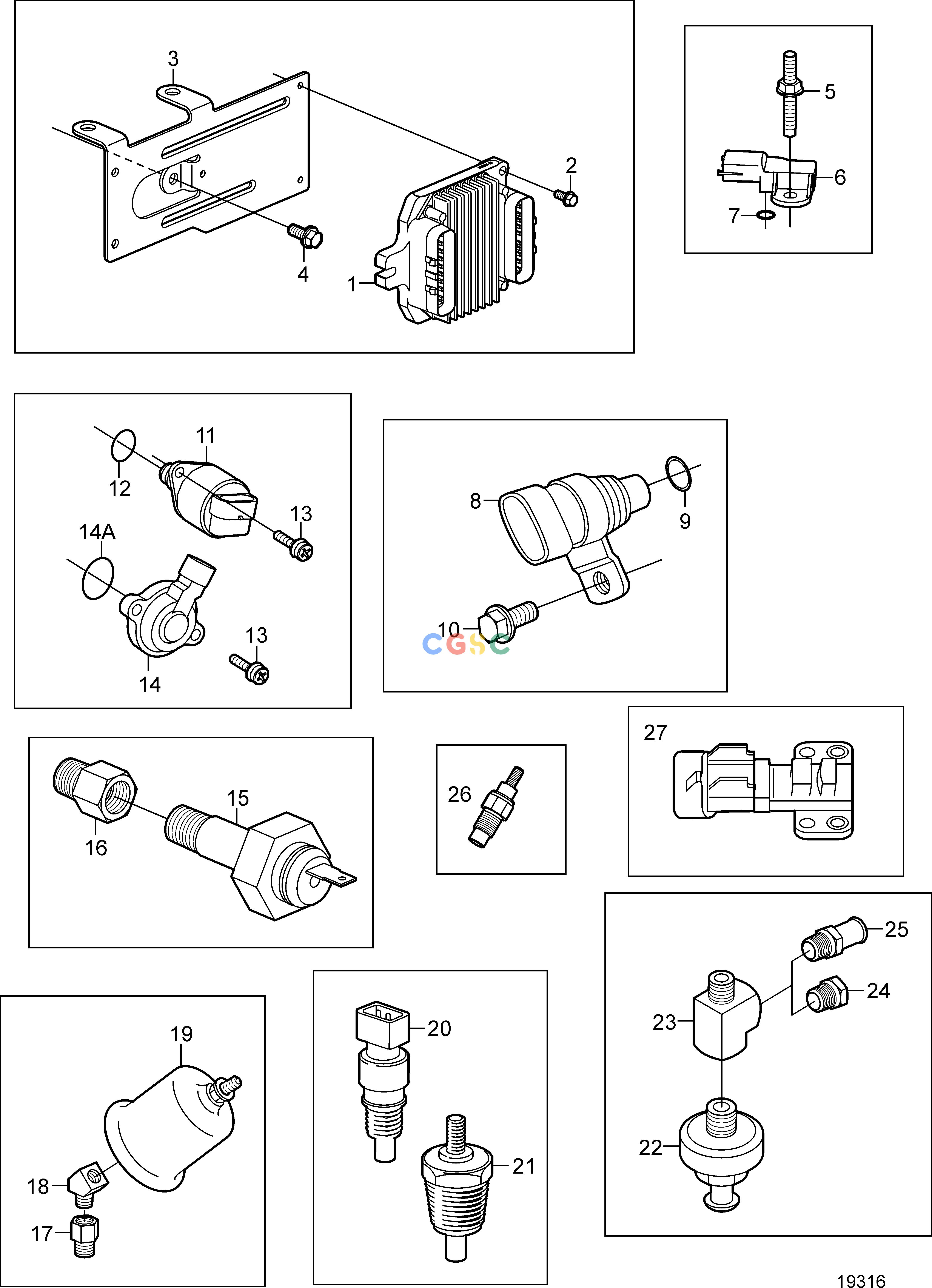

沃尔沃零件查询5.0GXi-B; 5.0GXi-BF; 5.0OSi-B; 5.0OSi-BF; 5.7Gi-B; 5.7Gi-BF; 5.7GXi-C; 5.7GXi-CF; 5.7GiI-B; 5.7GXiI-C; 5.7OSi-A; 5.7OSi-AF; 5.7OSXi-A; 5.7OSXIgnitionElectronic Engine ControlEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3861770
|
[1] |
Engine control unit
|
|
| 2. |
3852053
|
[3] |
Flange screw
|
|
| 3. |
3857815
|
[1] |
Bracket
|
|
| 4. |
3853398
|
[1] |
Flange screw
|
|
| 5. |
3858973
|
[1] |
Bolt
|
|
| 6. |
3858987
|
[1] |
Sensor, MAT/MAP
|
|
| 7. |
3858988
|
[1] |
Seal
|
|
| 8. |
3858979
|
[1] |
Sensor, crankshaft position
|
|
| 9. |
3859009
|
[1] |
O-ring
|
|
| 10. |
3858983
|
[1] |
Bolt
|
|
| 11. |
3843750
|
[1] |
Sensor, IAC
|
|
| 12. |
3858054
|
[1] |
O-ring
|
|
| 13. |
3857693
|
[1] |
Screw
|
|
| 14. |
3857487
|
[1] |
Sensor, throttle position
|
|
| 14. |
|
|
|
Not sold separately
|
| 15. |
3852215
|
[1] |
Sensor, oil pressure
|
|
| 16. |
3850660
|
[1] |
Fitting
|
|
| 17. |
3855776
|
[1] |
Adapter
|
|
| 18. |
3852503
|
[1] |
Elbow
|
|
| 19. |
3857532
|
[1] |
Oil pressure sensor, oil pressure
|
|
| 19. |
872064
|
[1] |
Pressure sensor, oil pressure
|
Dual station
|
| 20. |
3850397
|
[1] |
Switch
|
|
| 21. |
3852029
|
[1] |
Sensor, coolant temp.
|
|
| 21. |
872068
|
[1] |
Temperature sensor, coolant temp.
|
Dual station
|
| 22. |
3850357
|
[1] |
Knock sensor, knock
|
|
| 23. |
3850490
|
[1] |
Fitting
|
|
| 24. |
3850802
|
[1] |
Plug
|
|
| 25. |
3858501
|
[1] |
Nipple
|
|
| 26. |
3861997
|
[2] |
Temperature monitor
|
|
| 27. |
3863130
|
[1] |
Sensor, camshaft position
|
|
![]()
