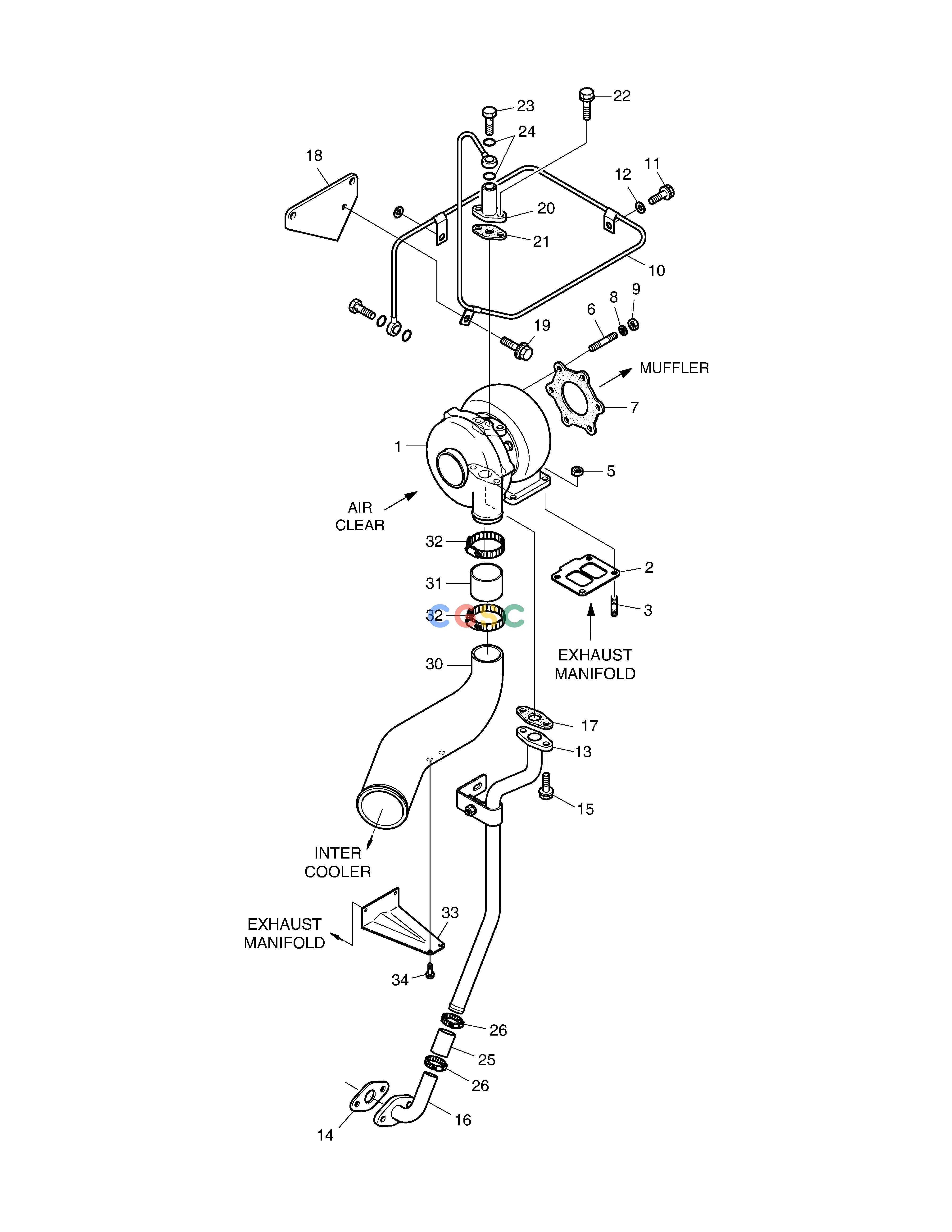

斗山零件查询TURBO CHARGER SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.09100-7073
|
[1] |
TURBOCHARGER ASS'Y
|
|
| 10. |
65.05701-5661
|
[1] |
PIPE;OIL
|
|
| 11. |
06.01943-3317
|
[2] |
BOLT ASS`Y M12X1.5X30
|
|
| 12. |
06.15010-2313
|
[2] |
WASHER;PLAIN
|
|
| 13. |
65.05701-5442
|
[1] |
PIPE;OIL
|
|
| 14. |
65.96601-0012
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 15. |
06.01913-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 16. |
65.05701-5443
|
[1] |
PIPE;OIL
|
|
| 17. |
65.96601-0045A
|
[1] |
GASKET
|
65.96601-0067
|
| 17. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 18. |
65.05740-5002
|
[1] |
BRACKET;OIL PIPE
|
|
| 19. |
06.01923-3114
|
[1] |
BOLT ASS`Y M8X22
|
|
| 2. |
65.09901-0025
|
[1] |
GASKET;TURBO CHARGER
|
65.09901-0033
|
| 2. |
65.09901-0033
|
[1] |
GASKET;TURBO CHARGER
|
|
| 20. |
65.98131-5008
|
[1] |
FLANGE;ADPTER
|
|
| 21. |
65.96601-0046A
|
[1] |
GASKET;OIL PIPE ADAPTER
|
65.96601-0046B
|
| 21. |
65.96601-0046B
|
[1] |
GASKET;OIL PIPE ADAPTER
|
|
| 22. |
06.01913-3113
|
[2] |
.. BOLT ASS`Y M8X20
|
|
| 23. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
| 24. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 25. |
65.96301-0327
|
[1] |
HOSE;RUBBER
|
65.96301-0327A
|
| 25. |
65.96301-0327A
|
[1] |
HOSE;RUBBER
|
|
| 26. |
06.67020-0106
|
[2] |
CLAMP;HOSE
|
|
| 3. |
06.06226-0808
|
[4] |
BOLT;STUD M10X30
|
65.90201-0076
|
| 3. |
65.90201-0076
|
[4] |
. BOLT;STUD
|
|
| 30. |
65.09411-5051
|
[1] |
INLET
|
|
| 31. |
65.96301-0268
|
[1] |
HOSE
|
|
| 32. |
06.67020-0112
|
[2] |
CLAMP;HOSE
|
|
| 33. |
65.09440-0007
|
[1] |
BRACKET
|
|
| 34. |
06.01923-3215
|
[2] |
BOLT ASS`Y M10X25
|
|
| 5. |
06.11063-8215
|
[4] |
NUT;HEX. M10
|
65.90535-0001
|
| 5. |
65.90535-0001
|
[4] |
NUT
|
|
| 6. |
65.90201-0181
|
[6] |
BOLT;STUD
|
|
| 7. |
65.08901-0063
|
[1] |
GASKET;EXHAUST ELBOW
|
|
| 8. |
06.16731-2108
|
[6] |
WASHER;SPRING
|
|
| 9. |
06.11063-8215
|
[6] |
NUT;HEX. M10
|
|
