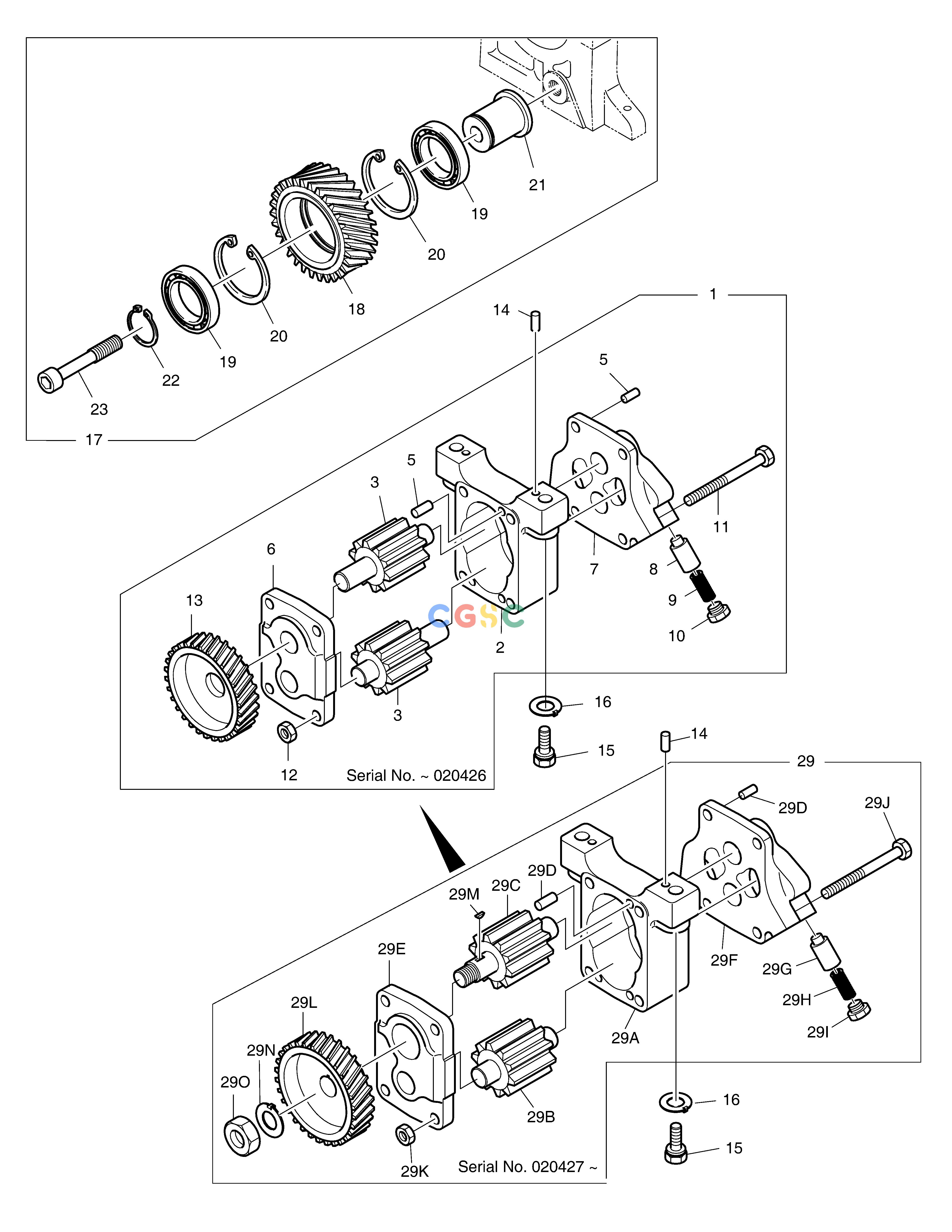

斗山零件查询OIL PUMP SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05100-6051
|
[1] |
OIL PUMP ASS'Y
|
65.05100-6044
|
| 10. |
65.90310-0104
|
[1] |
SCREW;PLUG
|
|
| 11. |
06.01013-9120
|
[4] |
BOLT;HEX M8X75
|
|
| 12. |
65.90510-0012
|
[4] |
NUT
|
|
| 13. |
65.05201-0010
|
[1] |
GEAR;OIL PUMP DRIVE
|
|
| 14. |
06.22022-0907
|
[2] |
. PIN;DOWEL
|
|
| 15. |
06.01013-9215
|
[2] |
BOLT;HEX. M10X50
|
|
| 16. |
65.90801-0018
|
[2] |
WASHER;LOCK
|
|
| 17. |
65.05200-6004A
|
[1] |
IDLE GEAR MOUNTING
|
|
| 18. |
65.05204-0003A
|
[1] |
GEAR;OIL PUMP IDLE
|
|
| 19. |
06.31420-0314
|
[2] |
BEARING;BALL
|
|
| 2. |
65.05102-0021
|
[1] |
HOUSING
|
|
| 20. |
06.29020-0132
|
[2] |
. SNAP RING
|
|
| 21. |
65.05205-0018
|
[1] |
PIN;IDLE GEAR
|
|
| 22. |
06.29010-0125
|
[1] |
RING;SNAP 30X2
|
|
| 23. |
65.90030-0009
|
[1] |
BOLT;SOCKET HEAD M10X60
|
|
| 29. |
65.05100-6044
|
[1] |
OIL PUMP ASS'Y
|
65.05100-6044A
|
| 29. |
65.05100-6044A
|
[1] |
OIL PUMP ASS'Y
|
|
| 29A. |
65.05102-0021
|
[1] |
HOUSING
|
|
| 29A. |
65.05102-0021A
|
[1] |
HOUSING
|
|
| 29B. |
65.05104-5006
|
[1] |
GEAR;OIL PUMP
|
|
| 29C. |
65.05104-5007
|
[1] |
GEAR;OIL PUMP
|
|
| 29D. |
06.22022-0907
|
[1] |
. PIN;DOWEL
|
|
| 29E. |
65.05103-5009
|
[1] |
COVER;OIL PUMP
|
|
| 29F. |
65.05103-5003
|
[1] |
COVER;OIL PUMP
|
|
| 29G. |
65.05410-0007
|
[1] |
PLUNGER;VALVE
|
|
| 29H. |
65.97601-0105
|
[1] |
SPRING;COMP.
|
|
| 29I. |
65.90310-0104
|
[1] |
SCREW;PLUG
|
|
| 29J. |
06.01013-9120
|
[4] |
BOLT;HEX M8X75
|
|
| 29K. |
65.90510-0012
|
[4] |
NUT
|
|
| 29L. |
65.05201-0008A
|
[1] |
GEAR;DRIVE
|
|
| 29M. |
06.29141-0207
|
[1] |
KEY;WOODRUFF
|
|
| 29N. |
06.16050-0311
|
[1] |
WASHER;LOCK
|
|
| 29O. |
06.11053-9217
|
[1] |
NUT;HEX.
|
|
| 3. |
65.05104-5009
|
[2] |
GEAR;OIL PUMP
|
|
| 5. |
06.22022-0909
|
[4] |
PIN;DOWEL 6M6X14
|
|
| 6. |
65.05103-0028
|
[1] |
OIL PUMP COVER(FRONT)
|
|
| 7. |
65.05103-0029
|
[1] |
OIL PUMP COVER(REAR)
|
|
| 8. |
65.05410-0007
|
[1] |
PLUNGER;VALVE
|
|
| 9. |
65.97601-0105
|
[1] |
SPRING;COMP.
|
|
