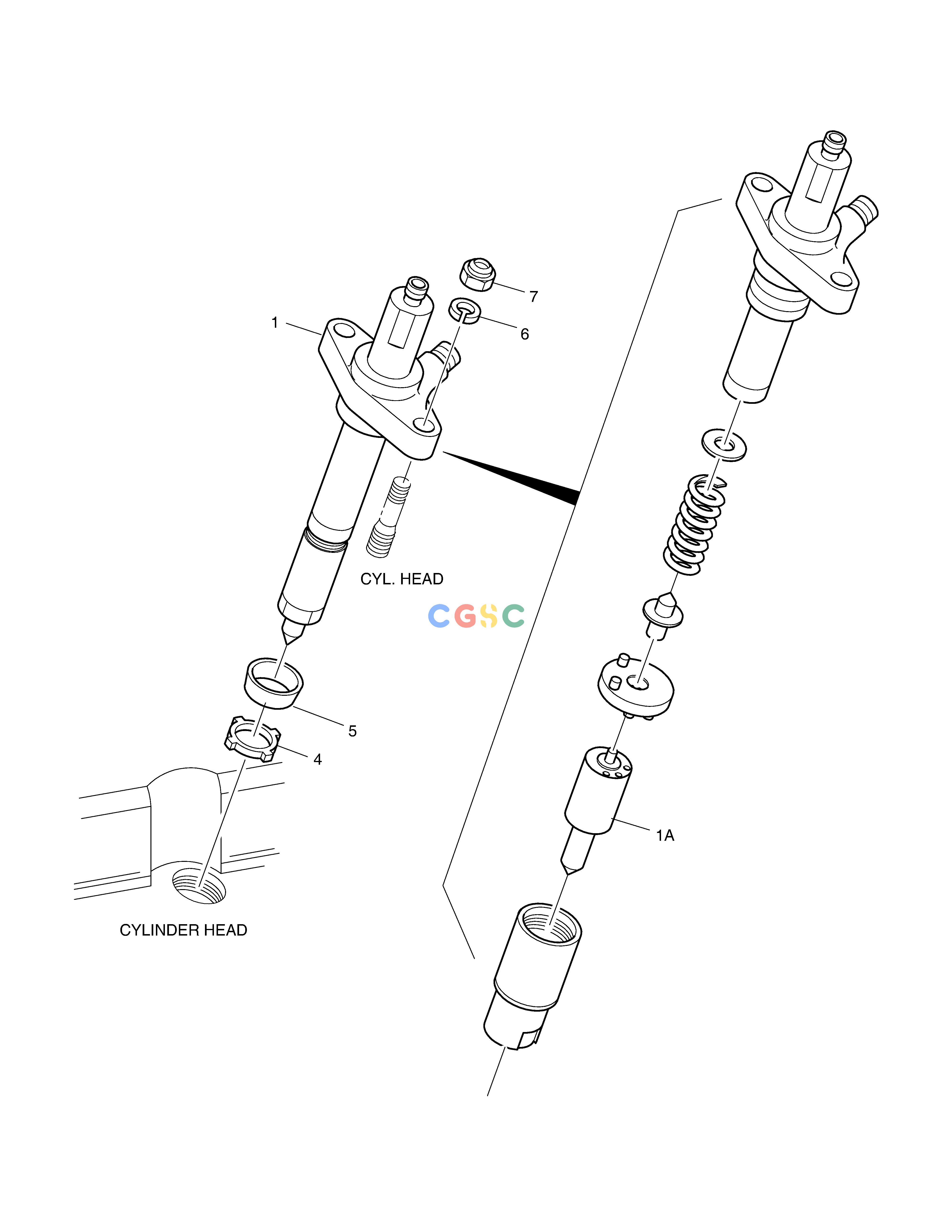

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 65.10101-7298 | [6] | NOZZLE & HOLDER ASS'Y | |
| 1. | 150118-00007 | [6] | ||
| 1A. | 65.10102-6053 | [6] | NOZZLE | |
| 1A. | 150118-00006 | [6] | ||
| 4. | 65.98701-0012 | [6] | SEAL;RING (TIER-II) | 65.98701-0012A |
| 4. | 65.98701-0012A | [6] | ||
| 4. | 400620-00004 | [6] | ||
| 5. | 65.96401-0012 | [6] | SEAL;DUST NOZZLE (TIER-II) | |
| 6. | 06.16731-2105 | [12] | . WASHER | |
| 7. | 65.90510-0011 | [12] | NUT | |
| 7. | 06.11063-8212 | [24] | NUT |
