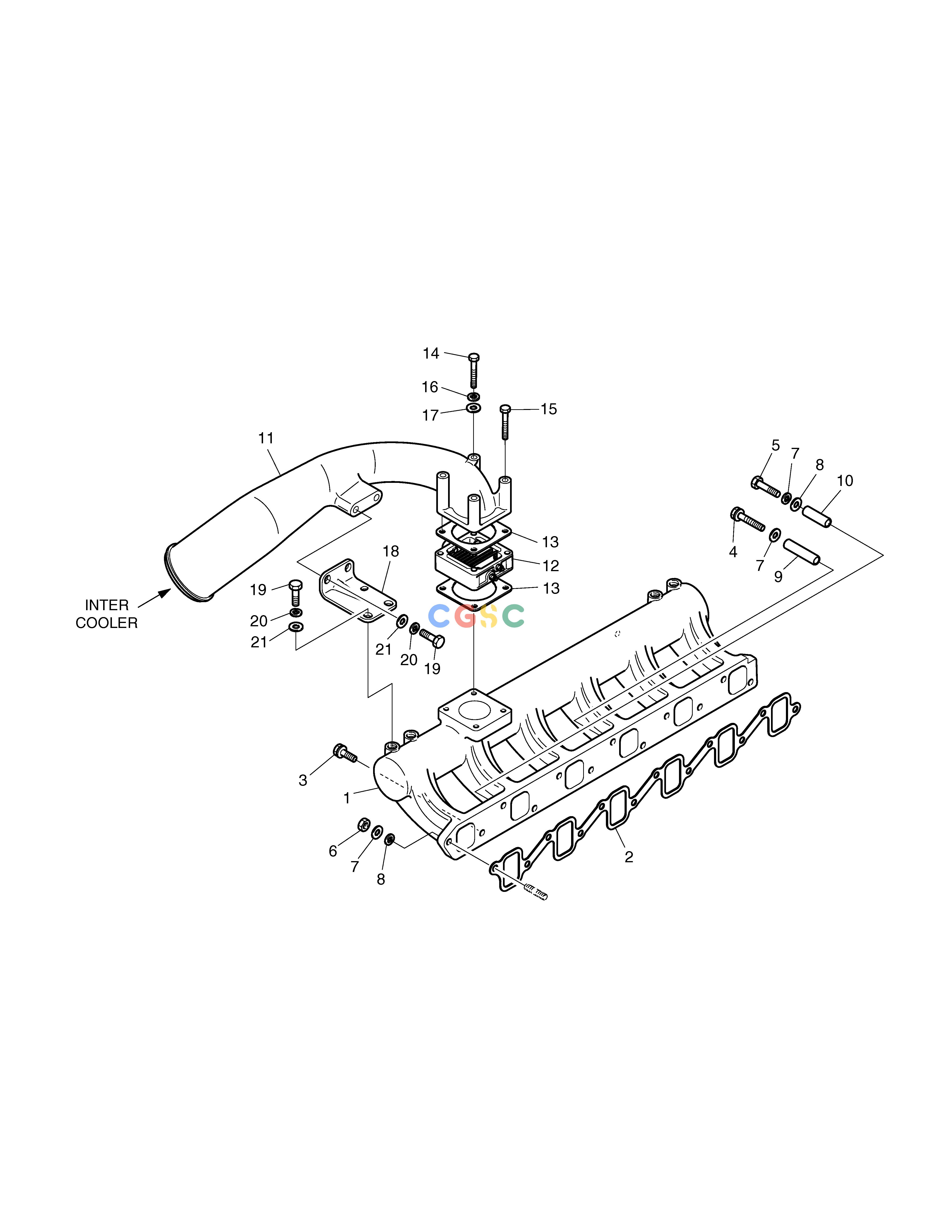

斗山零件查询INTAKE MANIFOLD SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.08201-5057
|
[1] |
MANIFOLD;INTAKE
|
240203-00050
|
| 1. |
240203-00050
|
[1] |
|
|
| 10. |
65.91701-0533
|
[1] |
SPACER(44mm)
|
|
| 10. |
110951-00349
|
[1] |
|
|
| 11. |
65.08202-5059
|
[1] |
STAKE;INTAKE
|
65.08202-5059A
|
| 11. |
65.08202-5059A
|
[1] |
STAKE;INTAKE
|
|
| 12. |
65.26803-7028
|
[1] |
HEATER;AIR
|
|
| 12. |
65.26803-7028A
|
[1] |
HEATER;AIR
|
65.26803-7028B
|
| 12. |
65.26803-7028B
|
[1] |
AIR HEATER
|
|
| 13. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
| 14. |
06.01013-9128
|
[2] |
BOLT;HEX. M8X130
|
|
| 15. |
06.01013-9127
|
[2] |
BOLT M8X120
|
|
| 16. |
06.16731-2107
|
[4] |
WASHER
|
|
| 17. |
06.15010-2311
|
[4] |
WASHER
|
|
| 18. |
65.08240-0026
|
[1] |
BRACKET;INTAKE STAKE
|
|
| 19. |
06.01733-4309
|
[4] |
BOLT;HEX. M12X1.5X25
|
|
| 2. |
65.08902-0025
|
[1] |
GASKET;INTAKE MANIFOLD
|
|
| 20. |
06.16731-2109
|
[4] |
WASHER;SPRING A12
|
|
| 21. |
06.15010-2313
|
[4] |
WASHER;PLAIN
|
|
| 3. |
06.01923-3218
|
[8] |
BOLT ASS`Y M10X35
|
|
| 4. |
06.01913-3234
|
[1] |
BOLT ASS`Y M10X130
|
|
| 4. |
06.01913-3235
|
[1] |
|
|
| 5. |
06.01013-9221
|
[1] |
BOLT;HEX. M10X80
|
|
| 6. |
06.11063-8215
|
[2] |
NUT;HEX. M10
|
|
| 7. |
06.16731-2108
|
[3] |
WASHER;SPRING
|
|
| 8. |
06.15010-2312
|
[4] |
WASHER;PLAIN
|
|
| 9. |
65.91701-0470
|
[1] |
SPACER(92mm)
|
|
| 9. |
110951-00348
|
[1] |
|
|
