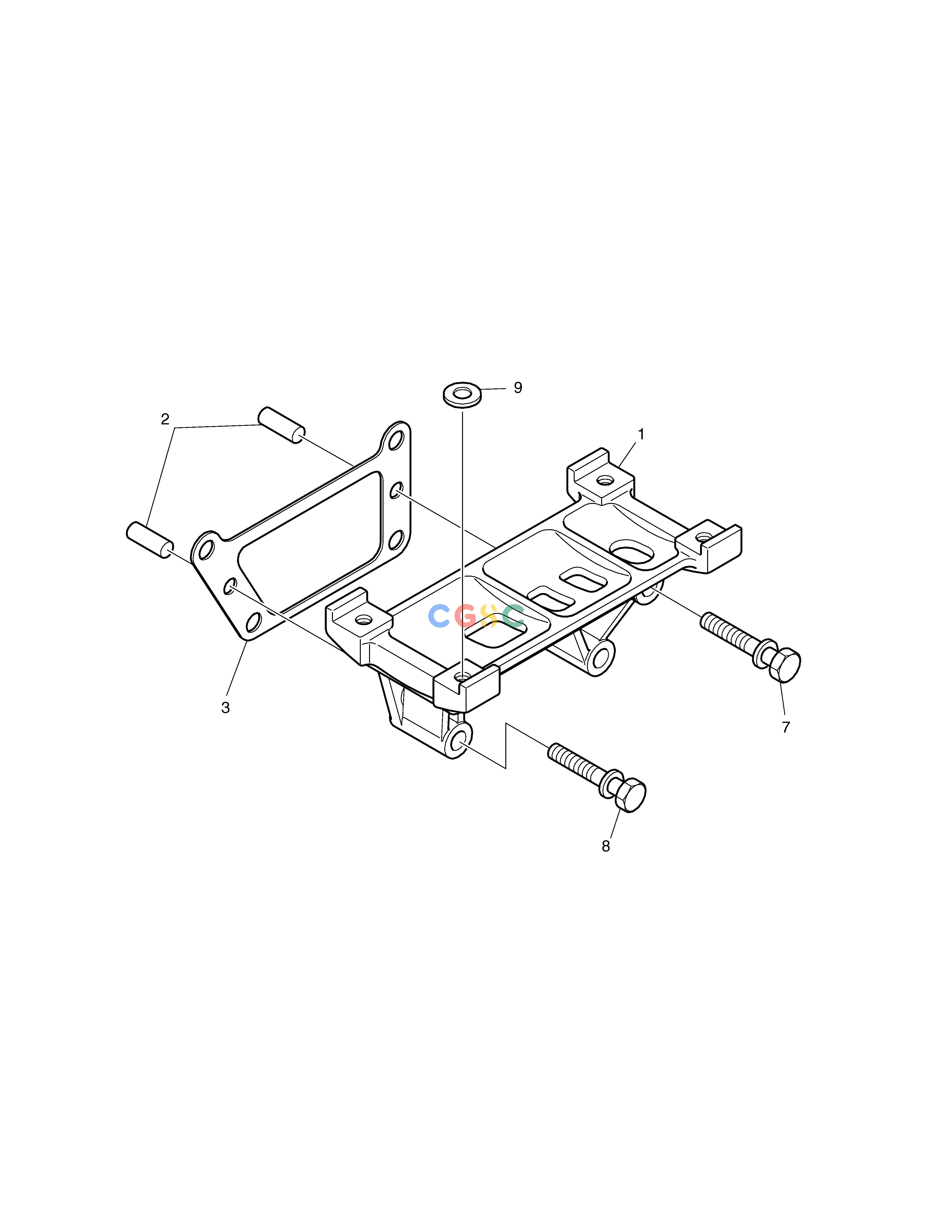

斗山零件查询INJECTION PUMP MOUNTING SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.11401-0033
|
[1] |
BRACKET;INJECTION PUMP
|
|
| 2. |
06.22022-1112
|
[2] |
PIN;DOWEL
|
|
| 3. |
65.11405-0005
|
[1] |
SHIM 0.10mm
|
|
| 3. |
65.11405-0006
|
[1] |
SHIM 0.15mm
|
|
| 3. |
65.11405-0007
|
[1] |
SHIM 0.20mm
|
|
| 3. |
65.11405-0008
|
[1] |
SHIM 0.50mm
|
|
| 7. |
06.01943-3332
|
[2] |
BOLT ASS'Y M12X1.5X110
|
|
| 8. |
06.01943-7324
|
[2] |
BOLT ASS'Y M12X65
|
|
| 9. |
65.11405-0009
|
[4] |
SHIM 0.10mm
|
|
| 9. |
65.11405-0013
|
[1] |
SHIM 0.20mm
|
|
| 9. |
65.11405-0010
|
[4] |
SHIM 0.30mm
|
|
