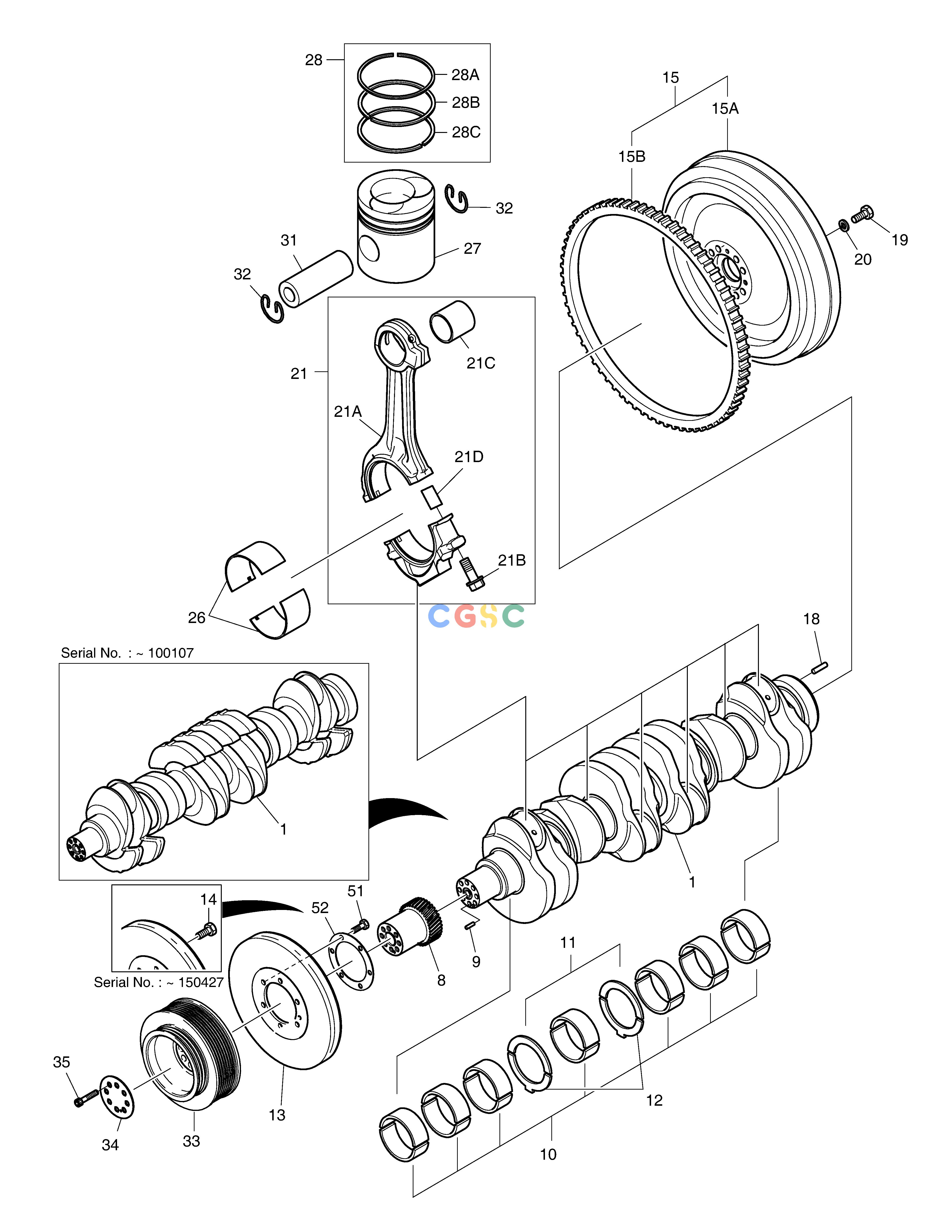

斗山零件查询DRIVING SYSTEM SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150107-00187
|
[1] |
|
|
| 1. |
65.02101-0060B
|
[1] |
SHAFT;CRANK
|
150107-00187
|
| 1. |
65.02101-0060A
|
[1] |
CRANK SHAFT ASS'Y
|
|
| 10. |
65.01110-6115
|
[7] |
BEARING;MAIN
|
|
| 10. |
65.01110-6116
|
[7] |
BEARING;MAIN 0.25
|
|
| 10. |
65.01110-6117
|
[7] |
BEARING;MAIN 0.50
|
|
| 11. |
65.01150-0017A
|
[2] |
WASHER;THRUST
|
|
| 11. |
65.01150-0048A
|
[2] |
WASHER;THRUST 0.25
|
|
| 11. |
65.01150-0049A
|
[2] |
WASHER;THRUST 0.50
|
|
| 12. |
65.01150-0018B
|
[2] |
WASHER;THRUST
|
|
| 12. |
65.01150-0052B
|
[2] |
WASHER;THRUST 0.25
|
|
| 12. |
65.01150-0053B
|
[2] |
WASHER;THRUST 0.50
|
|
| 13. |
65.02201-7033
|
[1] |
DAMPER;VISCOUS
|
|
| 13. |
65.02201-7032
|
[1] |
DAMPER;VIBRATION
|
65.02201-7033
|
| 14. |
06.01914-3215
|
[6] |
BOLT ASS'Y M10X25
|
65.90020-0062B
|
| 14. |
65.90020-0062B
|
[6] |
BOLT;HEX M10X20
|
|
| 15. |
150111-00031
|
[1] |
|
|
| 15. |
65.02301-5121
|
[1] |
FLYWHEEL
|
|
| 15A. |
65.02301-0266
|
[1] |
FLYWHEEL
|
|
| 15B. |
65.02310-0014
|
[1] |
|
|
| 15B. |
65.02310-0011A
|
[1] |
GEAR;STARTER RING
|
|
| 18. |
06.22022-1010
|
[1] |
PIN ; DOWEL
|
|
| 19. |
65.90001-0084
|
[8] |
BOLT;HEX. M14X1.5X40
|
|
| 20. |
06.16731-2110
|
[8] |
WASHER;SPRING
|
|
| 21. |
65.02401-6017
|
[6] |
CONNECTING ROD ASS'Y
|
65.02401-6017A
|
| 21. |
65.02401-6017A
|
[6] |
CONNECTING ROD ASS'Y
|
65.02401-6017B
|
| 21. |
65.02401-6017B
|
[6] |
CONNECTING ROD ASS'Y
|
65.02401-6017C
|
| 21. |
65.02401-6017C
|
[6] |
CONNECTING ROD ASS'Y
|
65.02401-6017D
|
| 21. |
65.02401-6017D
|
[6] |
|
|
| 21A. |
65.02401-0045E
|
[1] |
ROD;CONNECTING
|
|
| 21A. |
65.02401-0045F
|
[1] |
ROD;CONNECTING
|
65.02401-0045G
|
| 21A. |
65.02401-0045G
|
[1] |
ROD;CONNECTING
|
|
| 21A. |
65.02401-0045H
|
[1] |
|
|
| 21B. |
65.90020-0010E
|
[2] |
BOLT;CON-ROD
|
|
| 21C. |
65.02405-1010
|
[1] |
BUSH;CON-ROD
|
65.02405-0011
|
| 21C. |
65.02405-0011
|
[1] |
BUSH;CON-ROD
|
|
| 21D. |
65.91301-0010
|
[2] |
PIN;DOWEL
|
|
| 26. |
65.02410-6108
|
[6] |
BEARING;CON-ROD 0.50
|
|
| 26. |
65.02410-6109
|
[6] |
BEARING;CON-ROD 0.75
|
|
| 26. |
65.02410-6106
|
[6] |
BEARING;CON-ROD
|
|
| 26. |
65.02410-6107
|
[6] |
BEARING;CON-ROD 0.25
|
|
| 27. |
65.02501-0232
|
[6] |
PISTON
|
65.02501-0601
|
| 27. |
65.02501-0601
|
[6] |
PISTON
|
65.02501-0601A
|
| 27. |
65.02501-0601A
|
[6] |
PISTON
|
65.02501-0601B
|
| 27. |
65.02501-0601B
|
[6] |
PISTON
|
|
| 28. |
65.02503-8237
|
[1] |
|
|
| 28A. |
65.02503-0674
|
[6] |
RING;TOP
|
|
| 28B. |
65.02503-0097
|
[6] |
RING;2ND
|
|
| 28C. |
65.02503-0675B
|
[6] |
RING;OIL
|
|
| 31. |
65.02502-0013
|
[6] |
PIN;PISTON
|
|
| 32. |
06.29020-0127
|
[12] |
RING;SNAP 45X1.75
|
|
| 33. |
65.02601-0192
|
[1] |
PULLEY;V-BELT
|
|
| 34. |
65.90701-0088
|
[1] |
WASHER
|
|
| 35. |
06.02106-0622
|
[8] |
BOLT;SOCKET HEAD
|
|
| 51. |
120121-00071
|
[6] |
BOLT
|
|
| 52. |
120808-00786
|
[1] |
|
|
| 8. |
65.02115-0008B
|
[1] |
GEAR;CRANK SHAFT
|
|
| 9. |
06.22022-0912
|
[1] |
PIN;DOWEL
|
|
