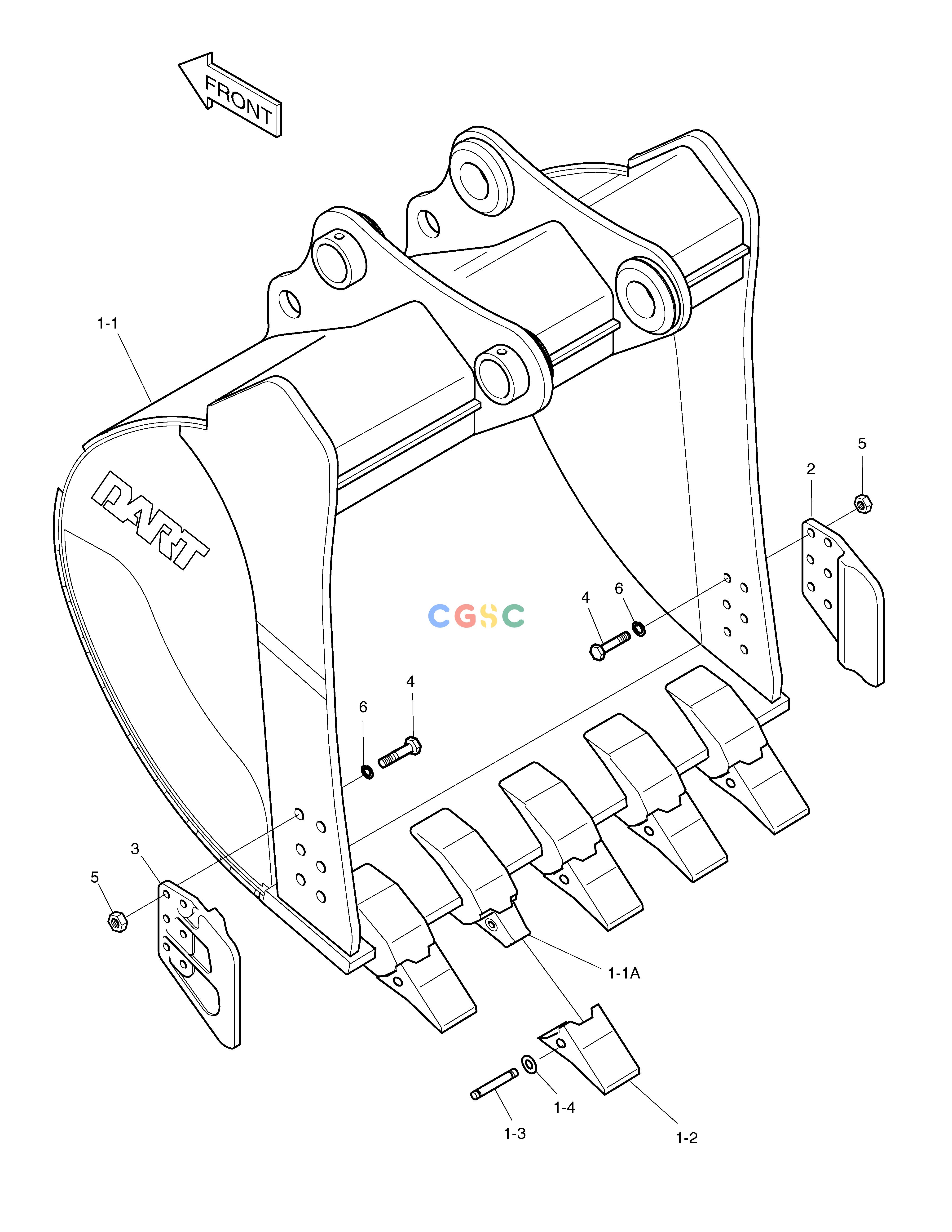

斗山零件查询BUCKET-1.14㎥(48")-SIDE PIN SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2704-1628A
|
[1] |
BUCKET ASS'Y-1.14㎥(H.D)
|
|
| 1. |
2704-1606A
|
[1] |
BUCKET SUB ASS'Y-1.14㎥
|
|
| 1-1. |
*NA00213
|
[1] |
. BUCKET;WELD
|
|
| 1-1A. |
2713-1220
|
[5] |
ADAPTER;TOOTH
|
|
| 1-2. |
2713-1270
|
[5] |
POINT;TOOTH
|
713-00026
|
| 1-2. |
713-00026
|
[5] |
POINT;TOOTH
|
|
| 1-3. |
2705-1021
|
[5] |
PIN;LOCKING
|
|
| 1-4. |
2114-1849A
|
[5] |
WASHER;LOCKING
|
|
| 2. |
2713-6034
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 2. |
2713-6034A
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 3. |
2713-6035
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 3. |
2713-6035A
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 4. |
S0570461
|
[12] |
BOLT M20X2.5X80
|
|
| 4. |
S0574961
|
[12] |
BOLT M24X3.0X80
|
|
| 5. |
S4013133
|
[12] |
NUT
|
|
| 5. |
S4013333
|
[12] |
. NUT
|
|
| 6. |
2114-9012
|
[12] |
WASHER;HARDEN
|
|
| 6. |
2114-1831
|
[12] |
WASHER;HARDEN
|
|
