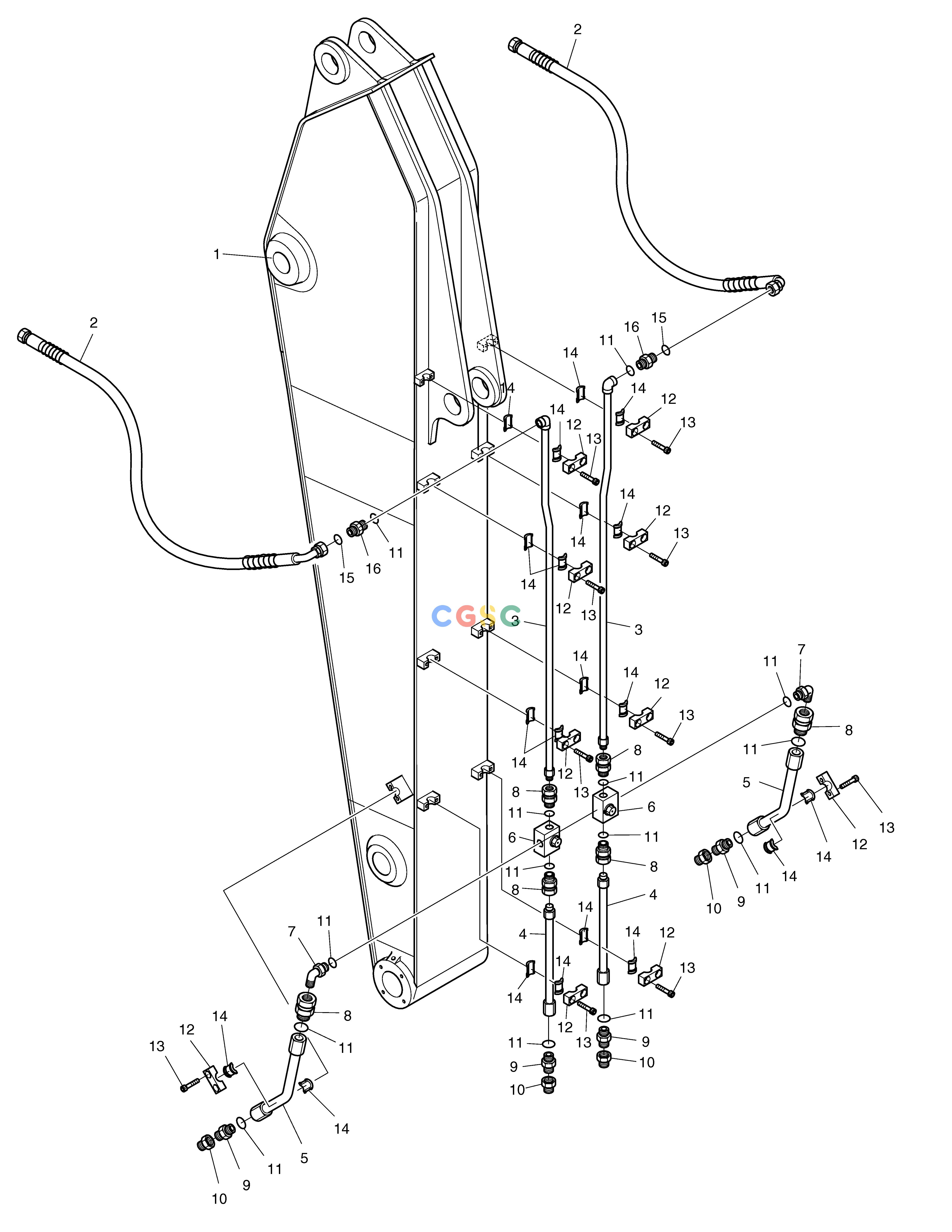

斗山零件查询ARM PIPING(3.1m)-ROTATION & TILTING SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00840
|
[-] |
ARM PIPING 3.1m
|
|
| 1. |
701-00406
|
[1] |
ARM;ROTATION&TILTING
|
|
| 10. |
2181-2820D3
|
[4] |
PLUG
|
|
| 11. |
S8000181
|
[2] |
O-RING
|
|
| 12. |
124-00204A
|
[10] |
CLAMP
|
|
| 13. |
S2212066
|
[20] |
BOLT
|
|
| 14. |
161-00313
|
[20] |
RUBBER
|
|
| 15. |
S8030081
|
[2] |
O-RING
|
|
| 16. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 2. |
DS2013358
|
[2] |
HOSE ORS1/2-1400L
|
|
| 3. |
140-01090
|
[2] |
PIPE;ARM
|
|
| 4. |
140-01115A
|
[2] |
PIPE;TILTING
|
|
| 5. |
193-00625A
|
[2] |
PIPE;ROTATING
|
|
| 6. |
420-00277
|
[2] |
VALVE;SWITCH
|
|
| 7. |
2181-1702D2
|
[2] |
ELBOW
|
|
| 8. |
111-00031D1
|
[6] |
ADAPTER;UNION PFO1/2-PF1/2
|
|
| 9. |
2181-1126D6
|
[4] |
ADAPTER
|
|
