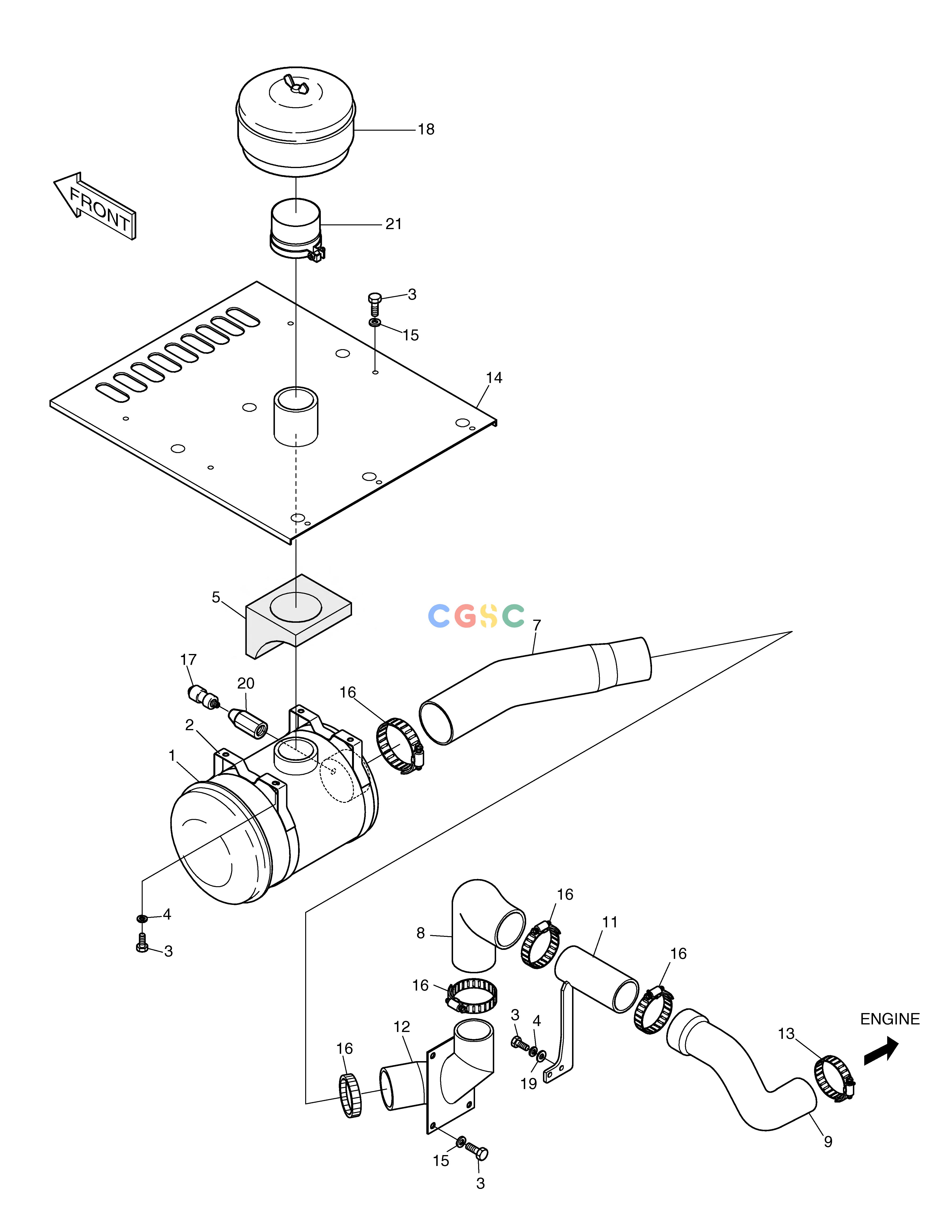

斗山零件查询AIR CLEANER ASS'Y-JAPAN SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025,浏览:次

Pos. |
Part No |
Qty |
Parts name |
Comments |
-. |
204-00020
|
[-] |
AIR CLEANER ASS'Y
|
|
1. |
2204-2012A
|
[1] |
AIR CLEANER
|
|
11. |
2193-1385B
|
[1] |
PIPE;AIR
|
|
12. |
2193-1386A
|
[1] |
PIPE;AIR
|
|
13. |
S8450066
|
[1] |
CLAMP;HOSE
|
|
14. |
2621-3706C
|
[1] |
COVER
|
|
15. |
2114-1058D10
|
[10] |
WASHER
|
|
16. |
S8450127
|
[5] |
CLAMP;HOSE
|
|
17. |
2170-9005
|
[1] |
INDICATOR
|
|
18. |
2204-9014A
|
[1] |
CLEANER;PRE
|
|
19. |
S5102603
|
[2] |
. WASHER
|
|
1A. |
2474-9051
|
[1] |
ELEMENT;OUTER
|
|
1B. |
2474-9057
|
[1] |
ELEMENT;INNER
|
|
2. |
2124-1552
|
[2] |
BAND;AIR CLEANER
|
2124-1552A
|
2. |
2124-1552A
|
[2] |
BAND;AIR CLEANER
|
|
20. |
2181-2690
|
[1] |
ADAPTER;FILTER
|
|
21. |
2204-9015A
|
[1] |
EXTENSION
|
|
3. |
S0512053
|
[16] |
BOLT
|
|
4. |
S5010613
|
[6] |
WASHER
|
|
5. |
2161-2190A
|
[1] |
SPONGE
|
|
7. |
2185-1656
|
[1] |
HOSE;AIR
|
|
8. |
2185-1657
|
[1] |
HOSE;AIR
|
|
9. |
2185-1658
|
[1] |
HOSE;AIR
|
|
