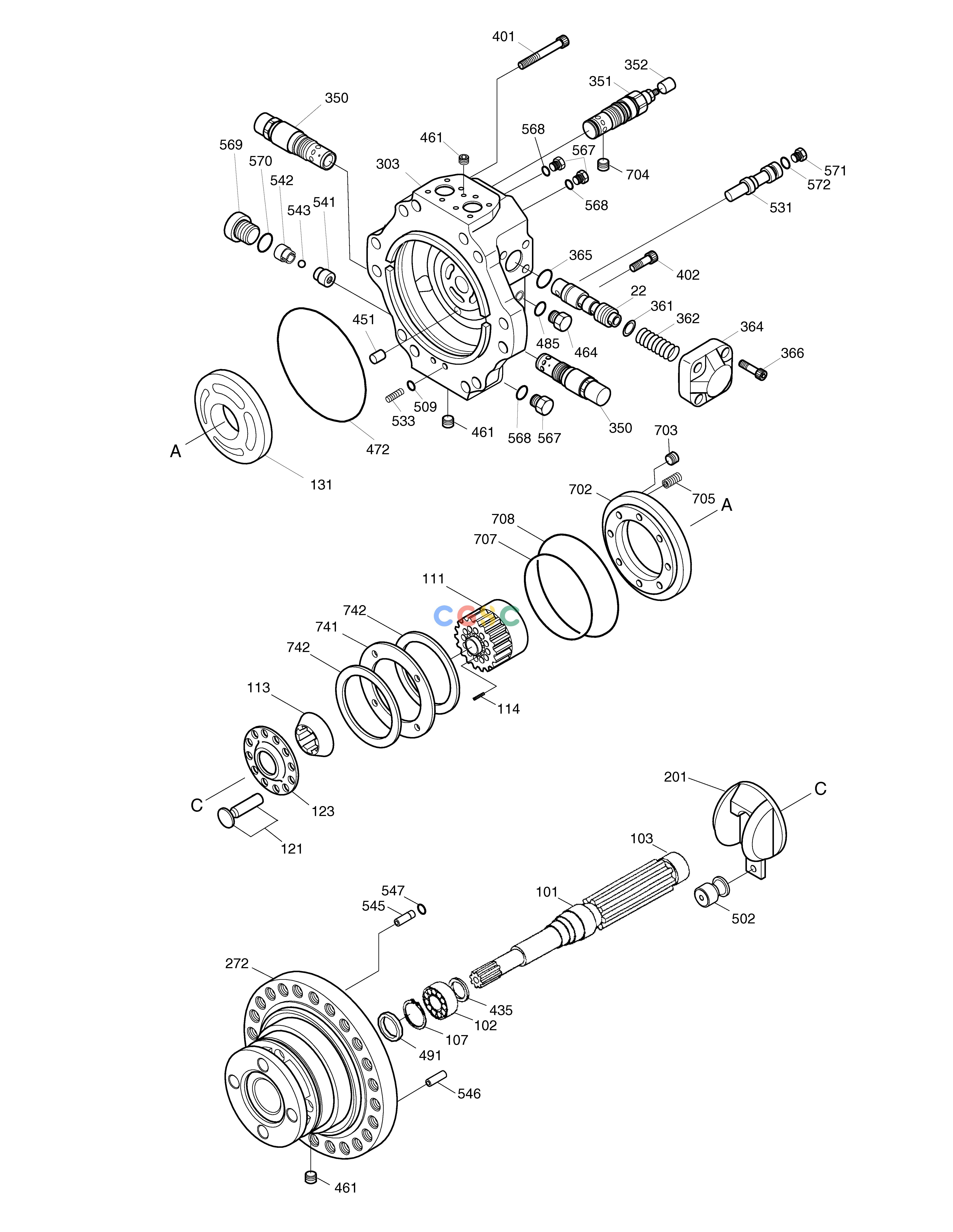

斗山零件查询TRAVEL MOTOR-DNB50D SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
2401-9264KT
|
[1] |
SEAL KIT;MOTOR
|
OSK2548
|
| -. |
2401-9269
|
[2] |
TRAVEL DEVICE
|
|
| -. |
717732
|
[1] |
TRAVEL MOTOR
|
|
| 101. |
135286
|
[1] |
DRIVE SHAFT
|
3324250-0299
|
| 102. |
232063
|
[1] |
ROLLER BEARING
|
PNUP2210
|
| 103. |
232064
|
[1] |
NEEDLE BEARING
|
PNK365528
|
| 107. |
232060
|
[1] |
STOP RING
|
OSR50
|
| 111. |
135279
|
[1] |
CYLINDER BLOCK
|
3324370-0204
|
| 113. |
135281
|
[1] |
BUSH;SPHERICAL
|
3724610-0025
|
| 114. |
232056
|
[9] |
SPRING;CYLINDER
|
2953802061
|
| 121. |
718808
|
[1] |
PISTON & SHOE ASS'Y
|
3324530-0121
|
| 123. |
135287
|
[1] |
PLATE;SET
|
3724110-0005
|
| 131. |
135288
|
[1] |
VALVE PLATE
|
|
| 201. |
135282
|
[1] |
SWASH PLATE
|
3324150-0093
|
| 22. |
718810
|
[1] |
COUNTER BALANCE SPOOL
|
VZ40103067
|
| 272. |
135284
|
[1] |
CASING;SHAFT
|
3323190-0032
|
| 303. |
135280
|
[1] |
CASING A
|
|
| 350. |
718812
|
[2] |
RELIEF VALVE ASS'Y
|
V8911248179
|
| 351. |
718811
|
[1] |
REDUCING VALVE ASS'Y
|
V9511178128
|
| 352. |
135300
|
[1] |
ADJUST COVER
|
VZ991-004
|
| 361. |
135295
|
[2] |
WASHER;COUNTER BALANCE
|
5A250010-3310
|
| 362. |
235028
|
[2] |
SPRING;COUNTER BALANCE
|
3350800152
|
| 364. |
135285
|
[2] |
COVER;COUNTER BALANCE
|
3350800150
|
| 365. |
201664
|
[2] |
O-RING(SPOOL)
|
OORBG45
|
| 366. |
232062
|
[8] |
BOLT;SOCKET
|
OSBM1245
|
| 401. |
232061
|
[2] |
BOLT;SOCKET
|
OSBM20100
|
| 402. |
221796
|
[4] |
BOLT;SOCKET
|
OSBM2050
|
| 435. |
221014
|
[1] |
STOP RING
|
ORR90
|
| 451. |
135294
|
[1] |
PIN2;VALVE PLATE
|
PJR1014
|
| 461. |
218562
|
[13] |
PLUG
|
PBP116-2403
|
| 464. |
108843
|
[2] |
PLUG;VP
|
OVP12
|
| 472. |
232067
|
[1] |
O-RING
|
OORWG47
|
| 485. |
216292
|
[2] |
O-RING
|
|
| 491. |
232065
|
[1] |
OIL SEAL
|
PTCV48V
|
| 502. |
718809
|
[1] |
TILTING PISTON & SHOE ASS'Y
|
3324530-0099
|
| 504. |
135293
|
[2] |
BALL;PIVOT
|
3324760-0008
|
| 509. |
212346
|
[1] |
O-RING
|
OORBP16
|
| 531. |
135302
|
[1] |
TILTING SPOOL
|
3303320-1209
|
| 533. |
232059
|
[1] |
SPRING;TILTING
|
3350800154
|
| 541. |
135296
|
[1] |
SEAT
|
3333180-0125
|
| 542. |
135297
|
[1] |
STOPPER
|
2933260-0018
|
| 543. |
200166
|
[1] |
BALL;STEEL
|
ODW732
|
| 545. |
135289
|
[1] |
ORIFICE
|
OTRS116A15
|
| 546. |
135301
|
[1] |
ORIFICE
|
OTRS116A10
|
| 547. |
201685
|
[2] |
O-RING 1BP10
|
OORBP10
|
| 564. |
206699
|
[2] |
PLUG;PT
|
OBP14
|
| 567. |
108844
|
[4] |
PLUG;VP
|
OVP14
|
| 568. |
201689
|
[4] |
O-RING 1BP11
|
OORBP11
|
| 569. |
108877
|
[2] |
PLUG
|
OROH14
|
| 570. |
201689
|
[2] |
O-RING 1BP11
|
OORBP11
|
| 571. |
108883
|
[1] |
PLUG
|
OROH38
|
| 572. |
207424
|
[1] |
O-RING 1BP14
|
OORBP14
|
| 702. |
135283
|
[1] |
PISTON;BRAKE
|
3324510-0016
|
| 703. |
135290
|
[1] |
ORIFICE
|
OTRM4406
|
| 704. |
135299
|
[1] |
ORIFICE
|
OYRM5510
|
| 705. |
232057
|
[14] |
SPRING;BRAKE PISTON
|
3753700453
|
| 707. |
212009
|
[1] |
O-RING
|
OORWG44
|
| 708. |
232066
|
[1] |
O-RING
|
OORWG49
|
| 741. |
135292
|
[3] |
PLATE;SEPARATOR
|
3743700413
|
| 742. |
135291
|
[2] |
PLATE;FRICTION
|
3743700449
|
