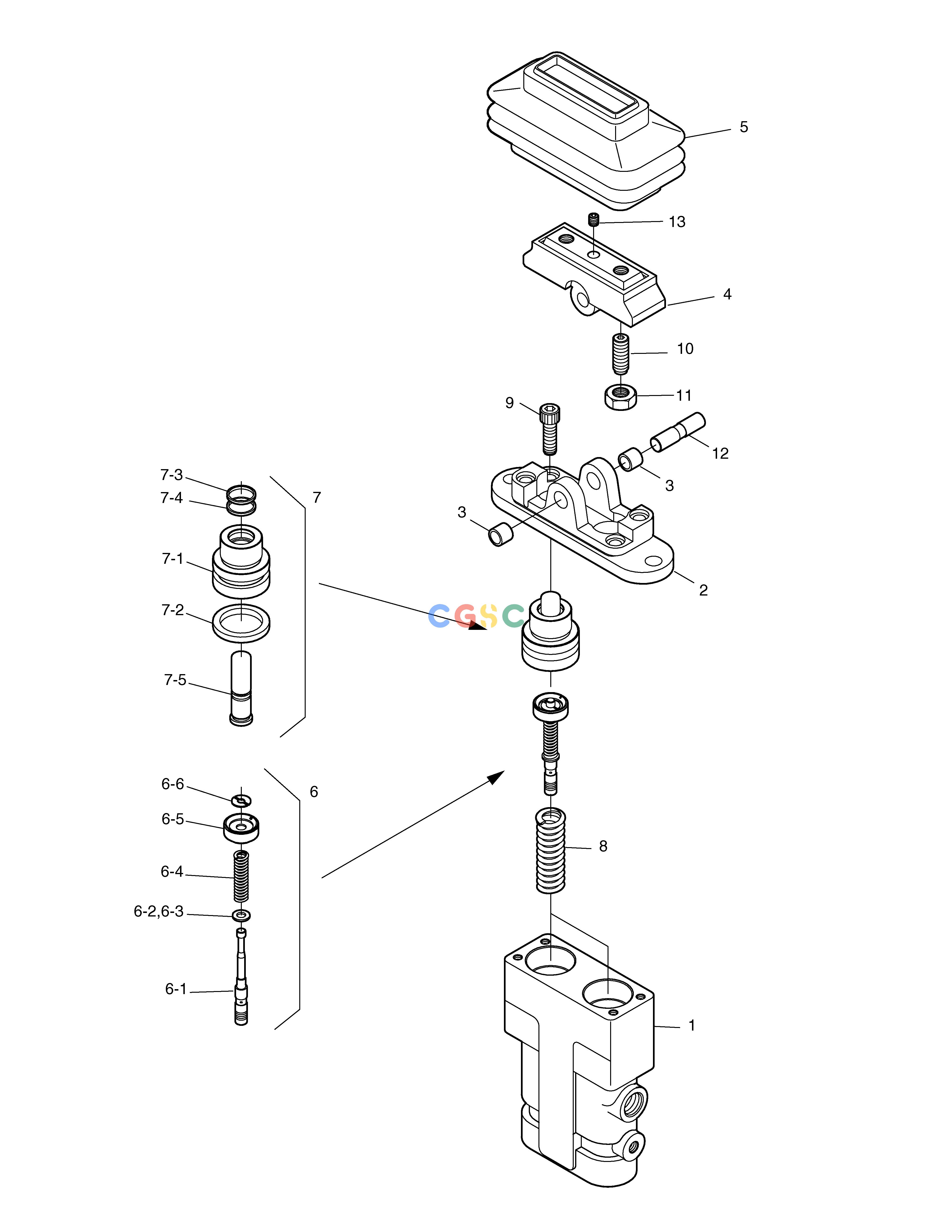

斗山零件查询PEDAL VALVE-BREAKER SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00160
|
[1] |
VALVE;PEDAL
|
|
| -. |
420-00347
|
[1] |
VALVE;PEDAL
|
|
| 1. |
*NA00342
|
[1] |
CASING
|
|
| 10. |
J24D2015
|
[2] |
SCREW;SET
|
|
| 11. |
S4014633
|
[2] |
. NUT
|
|
| 12. |
J24D2016
|
[1] |
SHAFT;CAM
|
|
| 13. |
S3523601
|
[1] |
. SCREW;SET M8X12
|
|
| 2. |
*NA00392
|
[1] |
COUVERCLE
|
|
| 3. |
DU1010
|
[2] |
BUSHING
|
|
| 4. |
J24D2005
|
[1] |
CAM
|
|
| 5. |
J24D2006
|
[1] |
BELLOWS
|
|
| 6. |
JA1E1001
|
[2] |
SPOOL ASS'Y
|
|
| 6-1. |
*NA01161
|
[1] |
. SPOOL
|
|
| 6-2. |
*NA01133
|
[1] |
. SHIM
|
|
| 6-3. |
*NA01111
|
[1] |
. SEAT;SPRING
|
|
| 6-4. |
*NA01182
|
[1] |
. SPRING
|
|
| 6-5. |
*NA01111
|
[1] |
. SEAT;SPRING
|
|
| 6-6. |
*NA01233
|
[1] |
. STOPPER
|
|
| 7. |
J98D3007
|
[2] |
PLUG ASS'Y
|
|
| 7-1. |
*NA00843
|
[1] |
PLUG
|
|
| 7-2. |
*NA00643
|
[1] |
. O-RING
|
|
| 7-3. |
*NA01082
|
[1] |
. SEAL
|
|
| 7-4. |
*NA01097
|
[1] |
. SEAL;ROD
|
|
| 7-5. |
*NA01013
|
[1] |
ROD;PUSH
|
|
| 8. |
J98D3003
|
[2] |
SPRING
|
|
| 8. |
J99M7003
|
[2] |
SPRING
|
|
| 9. |
S2209261
|
[2] |
BOLT
|
|
