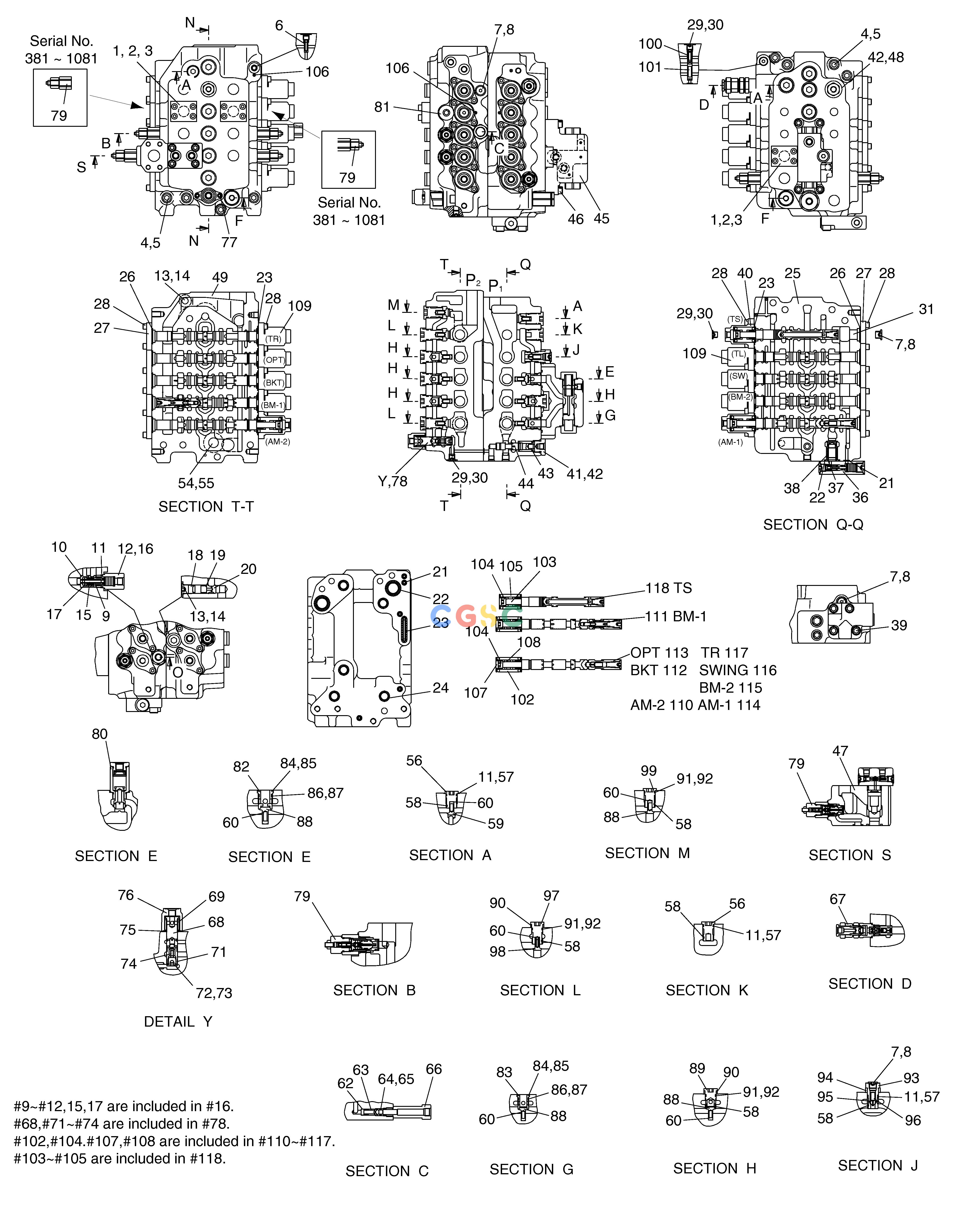

斗山零件查询CONTROL VALVE(B) SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
2426-1198KT
|
[1] |
SEAL KIT
|
|
| -. |
2426-1218B
|
[1] |
VALVE;CONTROL
|
|
| -. |
2426-1218C
|
[1] |
VALVE;CONTROL
|
|
| 1. |
2181-2434
|
[3] |
FLANGE
|
0879-019
|
| 10. |
2425-1032A
|
[1] |
SLEEVE
|
|
| 100. |
2129-1389
|
[1] |
SPRING
|
3590-436
|
| 101. |
2424-1100
|
[1] |
SPOOL;TS
|
3510-685
|
| 102. |
2129-1468
|
[9] |
SPRING
|
|
| 103. |
2430-1060
|
[1] |
CAP;PLUNGER
|
|
| 104. |
2429-1043A
|
[20] |
GUIDE;SP
|
|
| 105. |
2129-1385
|
[1] |
SPRING;G1
|
|
| 106. |
2181-2432
|
[8] |
PLUG
|
|
| 107. |
2430-1104
|
[9] |
CAP;PLUNGER
|
|
| 108. |
2114-1913
|
[9] |
SPACER
|
3597-237
|
| 109. |
2430-1105
|
[9] |
COVER
|
3503-241
|
| 11. |
S8000211
|
[5] |
O-RING
|
|
| 110. |
2424-1270
|
[1] |
PLUNGER;A14 ASS'Y
|
3511-859
|
| 111. |
2424-1267
|
[1] |
PLUNGER;B10 ASS'Y
|
3511-858
|
| 112. |
2424-1271
|
[1] |
PLUNGER;C5 ASS'Y
|
3511-857
|
| 113. |
2424-1275
|
[1] |
PLUNGER;D ASS'Y
|
3511-856
|
| 114. |
2424-1269
|
[1] |
PLUNGER;A13 ASS'Y
|
2424-1269A
|
| 114. |
2424-1269A
|
[1] |
PLUNGER;A13 ASS'Y
|
|
| 115. |
2424-1268
|
[1] |
PLUNGER;D10 ASS'Y
|
3511-854
|
| 116. |
2424-1272
|
[1] |
PLUNGER;T3 ASS'Y
|
3511-853
|
| 117. |
2424-1273
|
[1] |
PLUNGER;M3 ASS'Y
|
3511-852
|
| 118. |
2424-1274
|
[1] |
PLUNGER;G1 ASS'Y
|
3511-595
|
| 12. |
2430-1103
|
[1] |
CAP
|
|
| 13. |
2430-1050
|
[1] |
CAP
|
|
| 14. |
S8000181
|
[1] |
O-RING
|
|
| 15. |
2424-1265
|
[1] |
SPOOL;REGEN
|
|
| 16. |
2420-1223
|
[1] |
AM REGEN ASS'Y
|
3537-419
|
| 16. |
2420-1223A
|
[1] |
AM REGEN ASS'Y
|
|
| 17. |
2129-1467
|
[1] |
SPRING;REGEN
|
|
| 18. |
2416-1020
|
[1] |
STOPPER
|
3599-111
|
| 19. |
2129-1377
|
[1] |
SPRING
|
3590-208
|
| 2. |
2180-1217D109
|
[3] |
O-RING
|
0201-109
|
| 20. |
2420-1156
|
[1] |
CHECK
|
3513-212
|
| 21. |
S8000101
|
[7] |
O-RING
|
8202-007
|
| 22. |
S8000341
|
[3] |
O-RING
|
8202-026
|
| 23. |
2180-1217D67
|
[11] |
O-RING
|
0201-067
|
| 24. |
S8000221
|
[5] |
O-RING
|
8202-017
|
| 25. |
2423-1491
|
[1] |
HOUSING
|
3501-783
|
| 25. |
2423-1491B
|
[1] |
HOUSING(L.H.)
|
|
| 25. |
2423-1491A
|
[1] |
HOUSING(L.H.)
|
|
| 26. |
2180-1217D63
|
[10] |
O-RING
|
0201-063
|
| 27. |
2229-1064
|
[10] |
RETAINER
|
|
| 28. |
S2212061
|
[40] |
BOLT;SOCKET M10X1.5X25
|
|
| 29. |
2430-1051
|
[3] |
CAP
|
0824-051
|
| 3. |
S2212361
|
[12] |
BOLT;SOCKET M10X1.5X35
|
|
| 30. |
S8000111
|
[3] |
O-RING
|
8202-009
|
| 31. |
2424-1145
|
[1] |
PLUNGER;G1
|
|
| 36. |
2430-1064
|
[1] |
COVER ASS'Y
|
3535-060
|
| 36. |
2430-1064A
|
[1] |
AM HOLDING V/V ASS'Y
|
|
| 37. |
2129-1412
|
[1] |
SPRING
|
3590-457
|
| 38. |
2426-1165
|
[1] |
POPPET
|
3513-269
|
| 39. |
S2215261
|
[4] |
WASHER,HARD(M11)
|
|
| 4. |
2120-1487
|
[8] |
BOLT;SOCKET M14X100
|
|
| 40. |
2430-1068A
|
[1] |
COVER
|
3503-182
|
| 41. |
2430-1038
|
[1] |
CAP
|
3526-372
|
| 42. |
S8000291
|
[1] |
O-RING
|
8202-023
|
| 43. |
2129-1388
|
[1] |
SPRING
|
3590-435
|
| 44. |
2424-1156A
|
[1] |
SPOOL;BC
|
2424-1332
|
| 44. |
2424-1332
|
[1] |
SPOOL;BC
|
|
| 45. |
2182-1689
|
[1] |
MANIFOLD ASS'Y
|
3509-058
|
| 46. |
S2212461
|
[4] |
BOLT;SOCKET
|
|
| 47. |
2420-1209
|
[1] |
BM HOLDING VALVE
|
3537-352A
|
| 48. |
2430-1057
|
[1] |
CAP
|
|
| 49. |
2423-1483A
|
[1] |
HOUSING(R)
|
3501-784
|
| 5. |
S5110801
|
[8] |
WASHER;SPRING
|
S5100802
|
| 5. |
S5100802
|
[8] |
WASHER;SPRING M14
|
|
| 54. |
2430-1067
|
[1] |
CAP
|
0824-054
|
| 55. |
S8000231
|
[1] |
O-RING
|
0207-001
|
| 56. |
2430-1040
|
[4] |
CAP
|
3526-337
|
| 57. |
S8060211
|
[5] |
RING;BACK UP
|
0859-181
|
| 58. |
2420-1138
|
[12] |
NYLON CHIP
|
1099-000
|
| 59. |
2420-1136
|
[3] |
CHECK
|
3513-108
|
| 6. |
2415-1012
|
[1] |
ORIFICE
|
3518-029
|
| 6. |
2415-1012A
|
[1] |
ORIFICE
|
|
| 60. |
2129-1374
|
[12] |
SPRING
|
3390-101
|
| 62. |
2129-1383
|
[1] |
SPRING
|
3590-358
|
| 63. |
2420-1133
|
[1] |
CHECK
|
3513-211
|
| 64. |
2180-1217D50
|
[1] |
O-RING
|
0201-050
|
| 65. |
2180-1208
|
[1] |
RING;BACK UP
|
0859-251
|
| 66. |
2430-1052
|
[1] |
CAP
|
3526-517
|
| 67. |
2420-1225
|
[1] |
MAIN RELIEF ASS'Y
|
3537-358
|
| 68. |
2424-1263A
|
[1] |
SPOOL;BP
|
|
| 69. |
2129-1465
|
[1] |
SPRING
|
|
| 7. |
2430-1058
|
[4] |
CAP
|
0824-052
|
| 71. |
2129-1466
|
[1] |
SPRING
|
|
| 72. |
2430-1061
|
[1] |
CAP
|
|
| 73. |
2180-1218
|
[1] |
O-RING
|
|
| 74. |
2420-1221
|
[1] |
CHECK
|
|
| 75. |
2180-1217D24
|
[1] |
O-RING
|
0201-024
|
| 76. |
2430-1102
|
[1] |
COVER
|
3503-247
|
| 77. |
S2204861
|
[2] |
BOLT
|
|
| 78. |
2420-1224
|
[1] |
BP ASS'Y
|
3537-422
|
| 78. |
2420-1224A
|
[1] |
BP ASS'Y
|
|
| 79. |
2420-1226
|
[7] |
O/L RELIEF ASS'Y
|
3537-357
|
| 79. |
2420-1226
|
[5] |
O/L RELIEF ASS'Y
|
3537-357
|
| 8. |
S8000141
|
[4] |
O-RING
|
8202-011
|
| 80. |
2420-1222
|
[2] |
FOOT RELIEF ASS'Y
|
3537-200
|
| 81. |
181-00115
|
[2] |
PLUG ASS'Y;OVER LOAD
|
|
| 82. |
2425-1031
|
[1] |
SLEEVE
|
3516-231
|
| 83. |
2425-1015B
|
[1] |
SLEEVE
|
3516-210
|
| 84. |
2180-1217D103
|
[2] |
O-RING
|
0201-103
|
| 85. |
2180-1282
|
[2] |
RING;BACK UP
|
0859-324
|
| 86. |
2180-1209
|
[2] |
RING;BACK UP
|
0859-171
|
| 87. |
2180-1217D55
|
[2] |
O-RING
|
0201-055
|
| 88. |
2420-1142
|
[6] |
CHECK
|
3513-157
|
| 89. |
2430-1046A
|
[4] |
CAP
|
3526-513
|
| 9. |
2409-1059
|
[1] |
PISTON
|
|
| 90. |
2114-1691
|
[6] |
SPACER
|
3597-220
|
| 91. |
S8060261
|
[7] |
RING;BACK UP
|
0859-229
|
| 92. |
S8000261
|
[7] |
O-RING
|
8202-021
|
| 93. |
2430-1048
|
[1] |
CAP
|
3526-516
|
| 94. |
2114-1693
|
[1] |
SPACER
|
3597-219
|
| 95. |
2420-1147
|
[1] |
CHECK
|
3513-245
|
| 96. |
2129-1373
|
[1] |
SPRING
|
3590-061
|
| 97. |
2430-1045
|
[2] |
CAP
|
3526-514
|
| 98. |
2420-1139
|
[3] |
CHECK
|
3513-207
|
| 99. |
2430-1049
|
[1] |
CAP
|
3526-435
|
![]()
