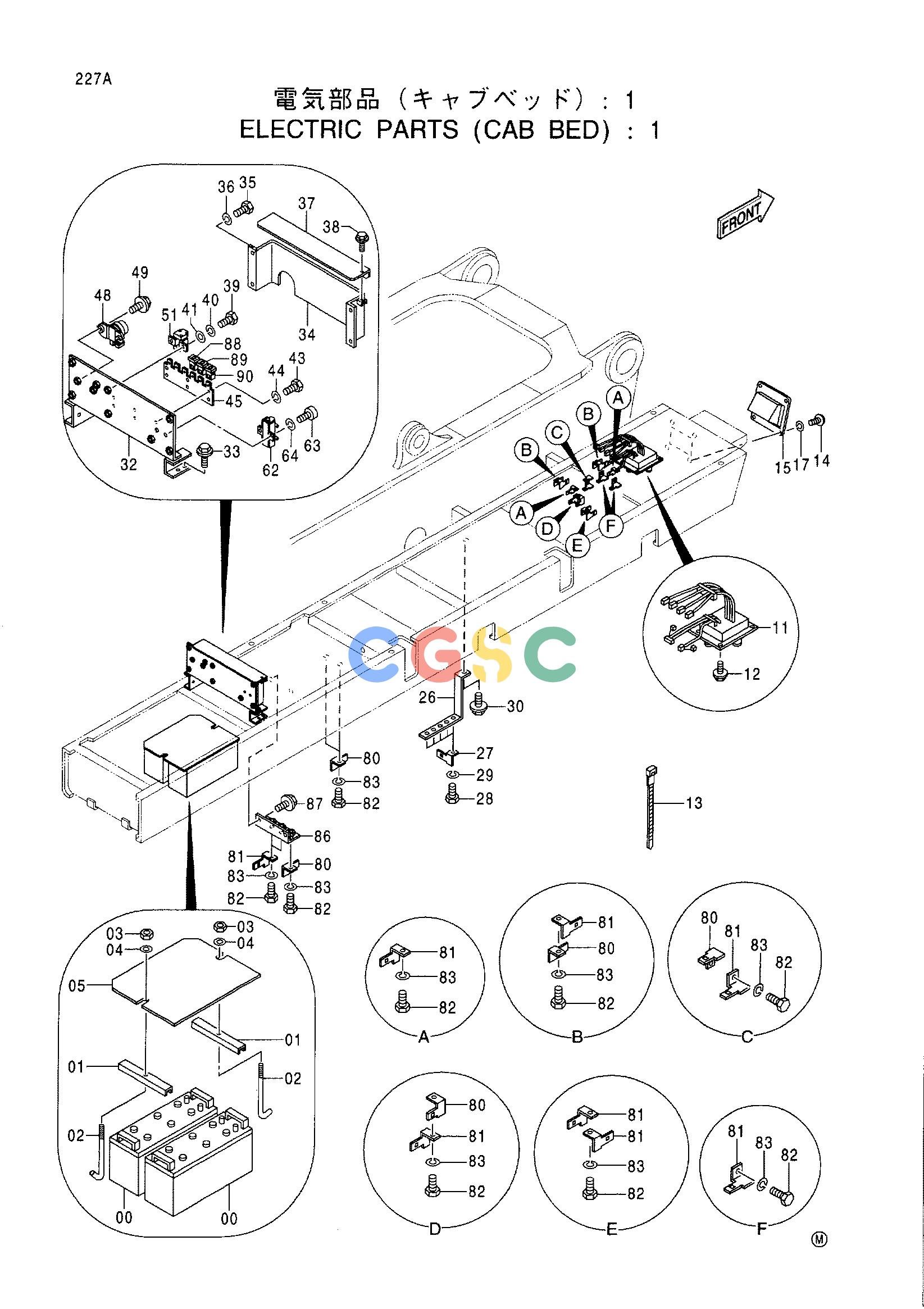

日立零件查询（CX1100）ELECTRIC PARTS (CAB BED):1 Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4192421 | [2] | BATTERY | |
| 01. | 445214 | [2] | SUPPORT | |
| 02. | 4257034 | [2] | BOLT;HOOK | |
| 03. | J950010 | [2] | NUT | |
| 04. | A590110 | [2] | WASHER;PLANE | |
| 05. | 8069686 | [1] | COVER | |
| 11. | 4403196 | [1] | BOX;TERMINAL | |
| 12. | J011030 | [4] | BOLT;SEMS | |
| 13. | 4055311 | [14] | CLIP;BAND | |
| 14. | 4345743 | [4] | BOLT | |
| 15. | 7036209 | [1] | BRACKET | |
| 17. | A590910 | [4] | WASHER;SPRING | |
| 26. | 4395595 | [1] | BRACKET | |
| 27. | 4252767 | [5] | BRACKET | |
| 28. | J900610 | [5] | BOLT | |
| 29. | A590906 | [5] | WASHER;SPRING | |
| 30. | J021025 | [1] | BOLT;SEMS | |
| 32. | 8081816 | [1] | BRACKET | |
| 33. | J021025 | [4] | BOLT;SEMS | |
| 34. | 8083384 | [1] | COVER | |
| 35. | J901020 | [4] | BOLT | |
| 36. | A590910 | [4] | WASHER;SPRING | |
| 37. | 8084608 | [1] | COVER | |
| 38. | J011025 | [1] | BOLT;SEMS | |
| 39. | J900820 | [2] | BOLT | |
| 40. | A590908 | [2] | WASHER;SPRING | |
| 41. | A590108 | [2] | WASHER;PLANE | |
| 43. | M430410 | [6] | SCREW | |
| 44. | A590904 | [6] | WASHER;SPRING | |
| 45. | 3069887 | [1] | BRACKET | |
| 48. | 4031771 | [1] | RELAY;BATTERY | |
| 49. | J020825 | [2] | BOLT;SEMS | |
| 51. | 4279835 | [1] | RELAY;SAFETY | |
| 62. | 4158761 | [1] | RESISTOR | |
| 63. | M430510 | [2] | SCREW | |
| 64. | A590905 | [2] | WASHER;SPRING | |
| 80. | 4257159 | [7] | BRACKET | |
| 81. | 4336875 | [12] | BRACKET | |
| 82. | J901020 | [13] | BOLT | |
| 83. | A590910 | [13] | WASHER;SPRING | |
| 86. | 9750586 | [1] | BRACKET | |
| 87. | J021025 | [2] | BOLT;SEMS | |
| 88. | 4423418 | [2] | FUSIBLE-LINK (65A) | |
| 89. | 4315323 | [2] | FUSIBLE-LINK (45A) | |
| 90. | 4423417 | [2] | FUSIBLE-LINK (30A) | |
