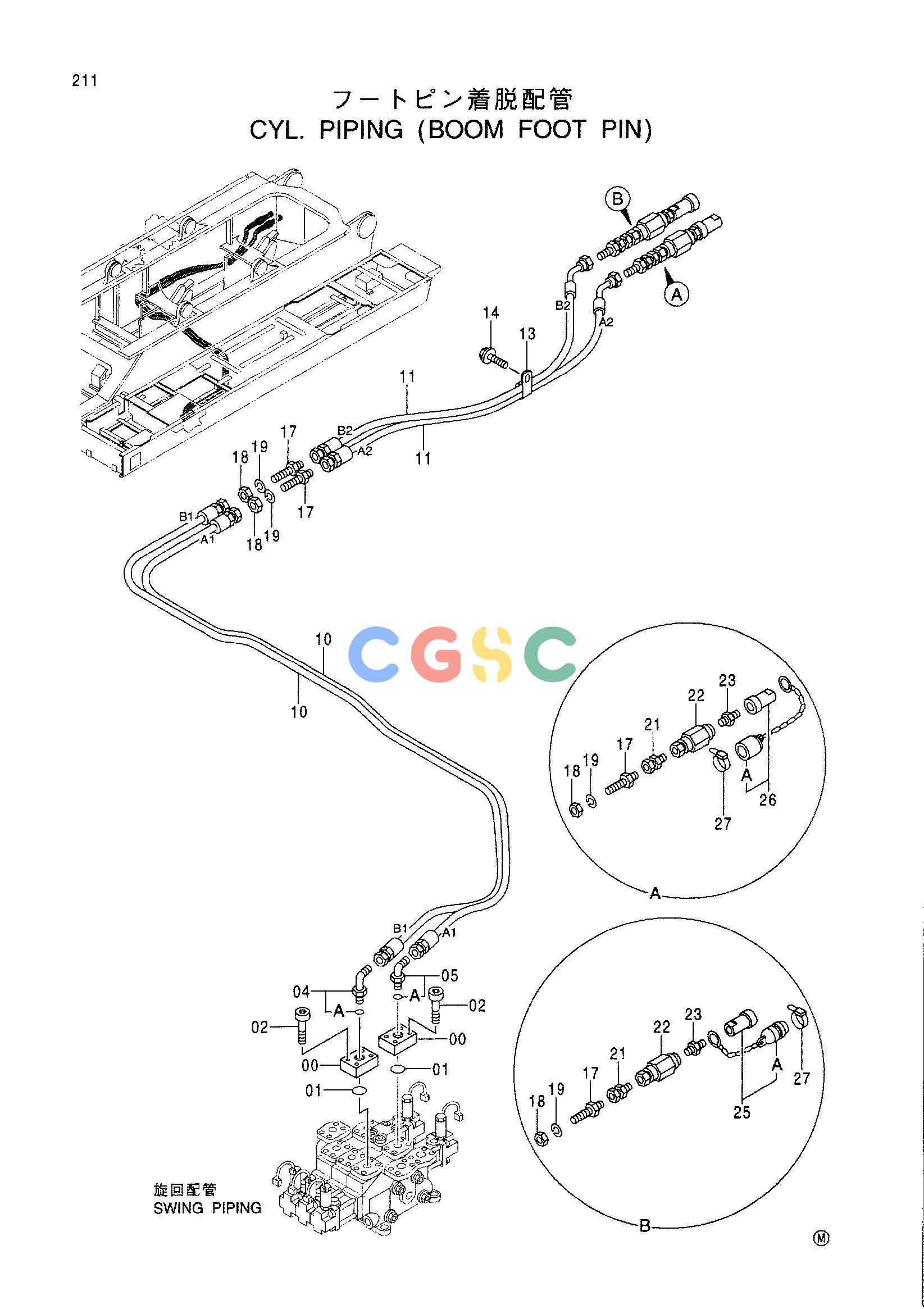

日立零件查询（CX1100）CYL.PIPING (BOOM FOOT PIN) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4368151 | [2] | BLOCK | |
| 01. | A811035 | [2] | O-RING | |
| 02. | M341036 | [8] | BOLT;SOCKET | |
| 04. | 4277650 | [1] | ELBOW;S | |
| 04A. | 4509180 | [1] | O-RING | |
| 05. | 4154671 | [1] | ELBOW;S | |
| 05A. | 4509180 | [1] | O-RING | |
| 10. | 4407355 | [2] | HOSE (A1,B1) | |
| 11. | 4407354 | [2] | HOSE (A2,B2) | |
| 13. | 4190266 | [1] | CLIP | |
| 14. | J011020 | [1] | BOLT;SEMS | |
| 17. | 4317426 | [4] | ADAPTER;S | |
| 18. | 4202531 | [4] | NUT | |
| 19. | A590916 | [4] | WASHER;SPRING | |
| 21. | 4215477 | [2] | ADAPTER | |
| 22. | 4188602 | [2] | VALVE;SLOWRETER | |
| 23. | 94-1702 | [2] | ADAPTER;S | |
| 25. | 4022907 | [1] | JOINT;SELF-SEAL | |
| 25A. | 4072595 | [1] | CAP | |
| 26. | 4022908 | [1] | JOINT;SELF-SEAL | |
| 26A. | 4072596 | [1] | CAP | |
| 27. | 4044883 | [2] | CLAMP | |
