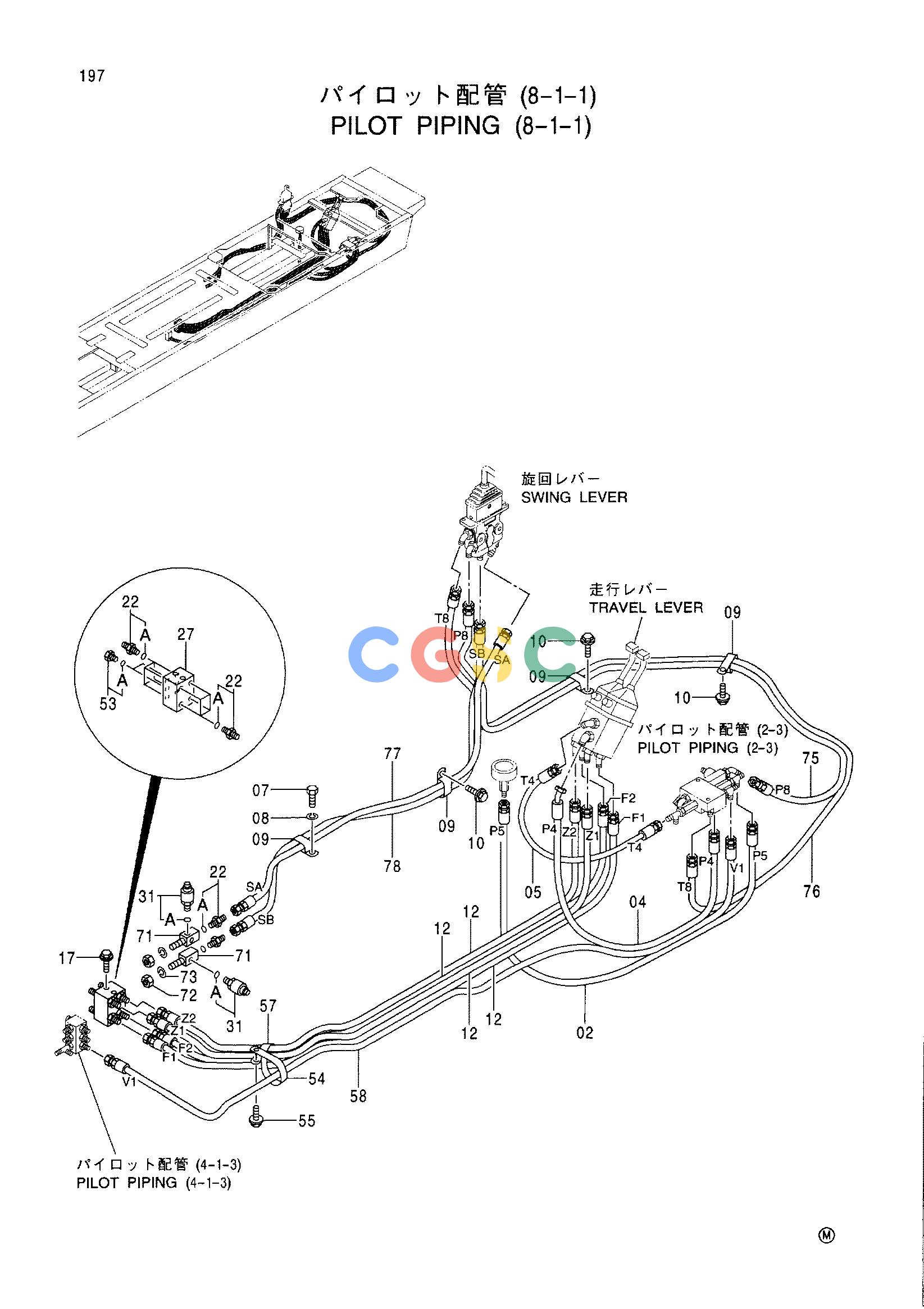

日立零件查询（CX1100）PILOT PIPING (8-1-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 4319353 | [1] | HOSE;NYLON (P5) | |
| 04. | 4207384 | [1] | HOSE;NYLON (P4) | |
| 05. | 4247577 | [1] | HOSE;NYLON (T4) | |
| 07. | J901020 | [1] | BOLT | |
| 08. | A590910 | [1] | WASHER;SPRING | |
| 09. | 4190292 | [4] | CLIP | |
| 10. | J011020 | [3] | BOLT;SEMS | |
| 12. | 4369302 | [4] | HOSE | |
| 17. | J011020 | [2] | BOLT;SEMS | |
| 22. | 4200467 | [10] | ADAPTER;S | |
| 22A. | 957366 | [1] | O-RING | |
| 27. | 4314477 | [1] | VALVE;SHUTTLE | |
| 31. | 4254563 | [2] | SWITCH;PRESSURE | |
| 31A. | 4113154 | [1] | O-RING | |
| 53. | 4093624 | [2] | PLUG | |
| 53A. | 957366 | [1] | O-RING | |
| 54. | 4190264 | [1] | CLIP | |
| 55. | J011025 | [1] | BOLT;SEMS | |
| 57. | 4204136 | [1] | CLIP | |
| 58. | 4383989 | [1] | HOSE (V1) | |
| 71. | 4403351 | [2] | REDUCER | |
| 72. | 4202531 | [2] | NUT | |
| 73. | A590916 | [2] | WASHER;SPRING | |
| 75. | 4357989 | [1] | HOSE (P8) | |
| 76. | 4391698 | [1] | HOSE (T8) | |
| 77. | 4374926 | [1] | HOSE (SA) | |
| 78. | 4371523 | [1] | HOSE (SB) | |
![]()
