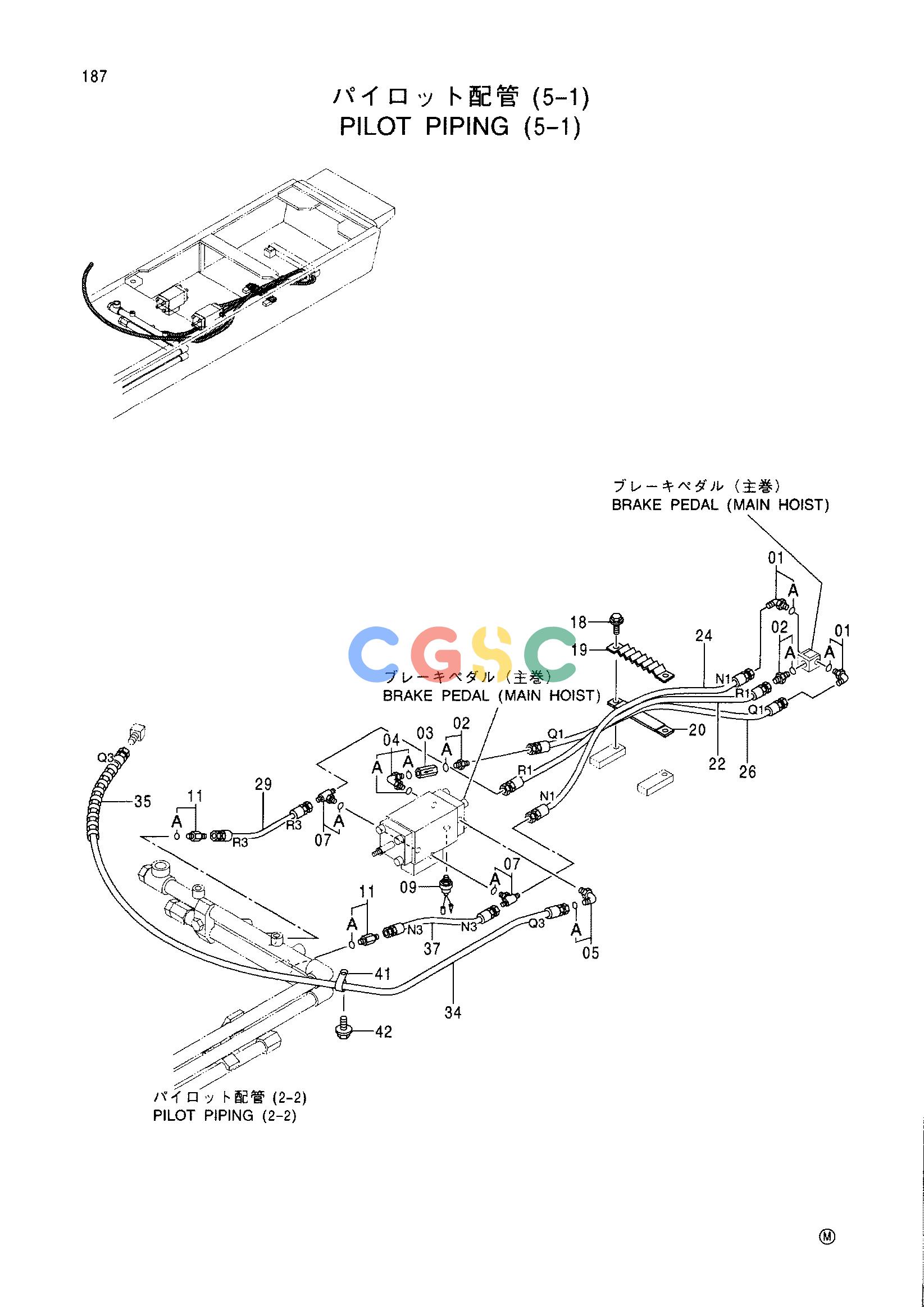

日立零件查询（CX1100）PILOT PIPING (5-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4154670 | [2] | ELBOW;S | |
| 01A. | 957366 | [1] | O-RING | |
| 02. | 4200465 | [2] | ADAPTER;S | |
| 02A. | 957366 | [1] | O-RING | |
| 03. | 4354795 | [1] | VALVE;CHECK | |
| 04. | 4314099 | [1] | ELBOW | |
| 04A. | 957366 | [2] | O-RING | |
| 05. | 4416599 | [1] | ELBOW;S | |
| 05A. | 4506418 | [1] | O-RING | |
| 07. | 4226388 | [2] | TEE;S | |
| 07A. | 957366 | [1] | O-RING | |
| 09. | 4317118 | [1] | SWITCH;PRES. | |
| 11. | 4276965 | [2] | ADAPTER;S | |
| 11A. | 4509180 | [1] | O-RING | |
| 18. | J021025 | [2] | BOLT;SEMS | |
| 19. | 9727639 | [1] | CLAMP;HOSE | |
| 20. | 9727637 | [1] | PLATE | |
| 22. | 4249354 | [1] | HOSE (R1) | |
| 24. | 4269802 | [1] | HOSE (N1) | |
| 26. | 4269799 | [1] | HOSE (Q1) | |
| 29. | 4357773 | [1] | HOSE (R3) | |
| 34. | 4352230 | [1] | HOSE (Q3) | |
| 35. | 4327294 | [2] | PROTECTOR | |
| 37. | 4299147 | [1] | HOSE (N3) | |
| 41. | 4190263 | [1] | CLIP | |
| 42. | J011022 | [1] | BOLT;SEMS | |
![]()
