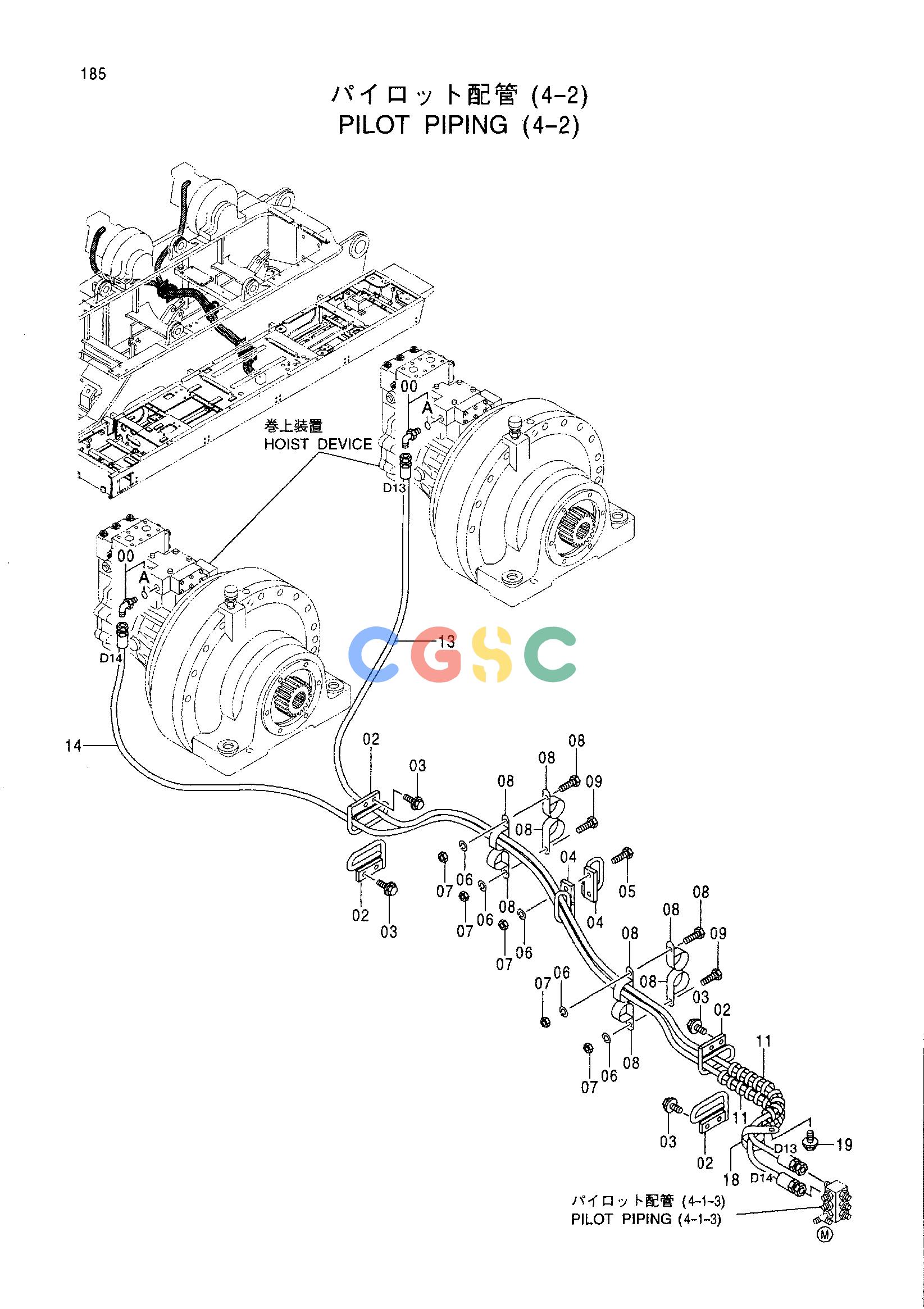

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 4156434 | [2] | ELBOW;S | |
| 00A. | 957366 | [1] | O-RING | |
| 02. | 8071965 | [4] | SUPPORT | |
| 03. | J011230 | [8] | BOLT;SEMS | |
| 04. | 8030483 | [2] | SUPPORT | |
| 05. | J901035 | [2] | BOLT | |
| 06. | A590910 | [6] | WASHER;SPRING | |
| 07. | J950010 | [6] | NUT | |
| 08. | 4193816 | [8] | CLIP | |
| 09. | J901025 | [4] | BOLT | |
| 11. | 4327294 | [2] | PROTECTOR | |
| 13. | 4357991 | [1] | HOSE (D13) | |
| 14. | 4357991 | [1] | HOSE (D14) | |
| 18. | 4190264 | [1] | CLIP | |
| 19. | J011020 | [1] | BOLT;SEMS |
