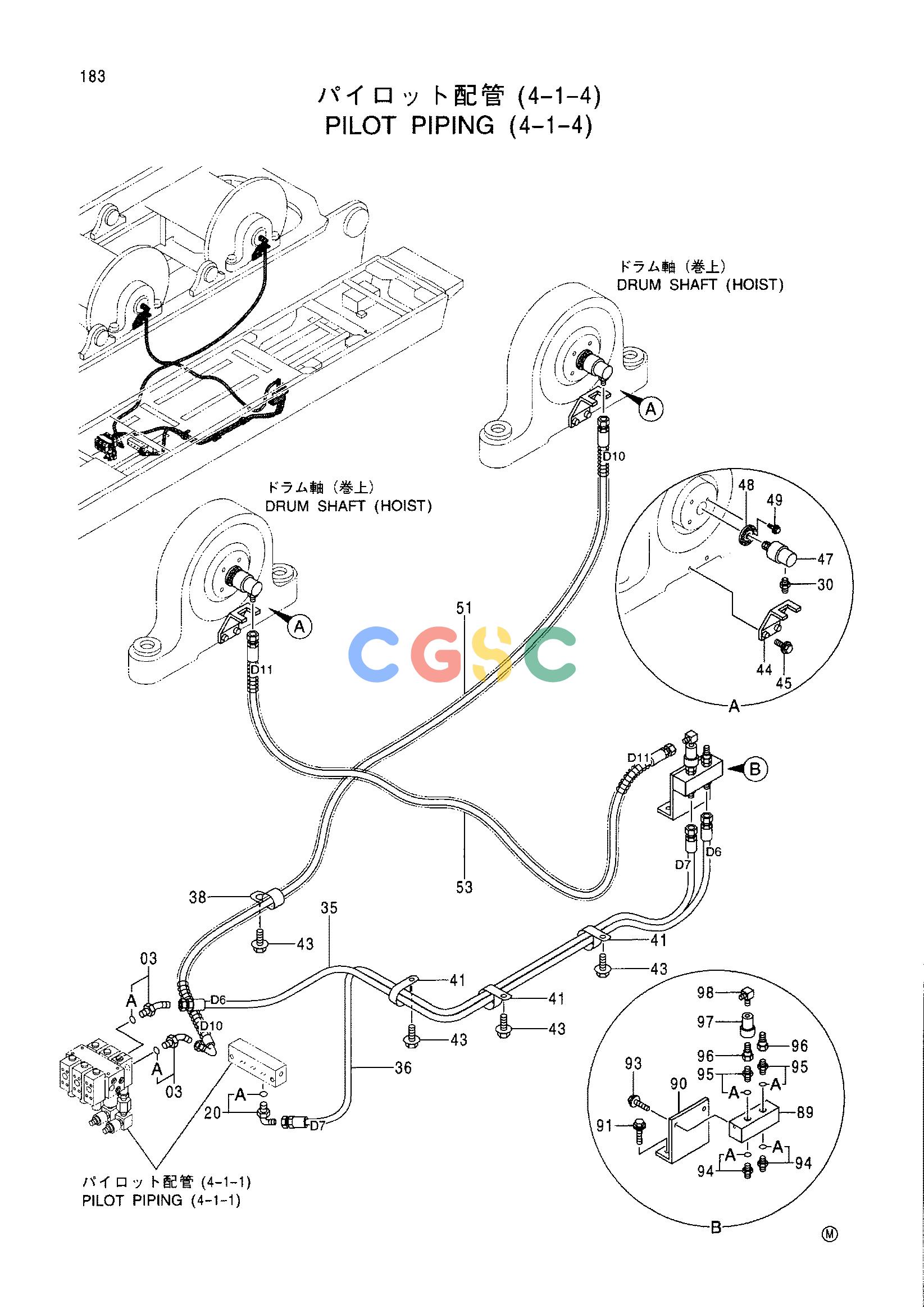

日立零件查询（CX1100）PILOT PIPING (4-1-4) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 03. | 4190244 | [2] | ELBOW;S | |
| 03A. | 4509180 | [1] | O-RING | |
| 20. | 4156434 | [1] | ELBOW;S | |
| 20A. | 957366 | [1] | O-RING | |
| 30. | 4215648 | [2] | ADAPTER;S | |
| 35. | 4357986 | [1] | HOSE (D6) | |
| 36. | 4319154 | [1] | HOSE (D7) | |
| 38. | 4190263 | [1] | CLIP | |
| 41. | 4190264 | [3] | CLIP | |
| 43. | J011016 | [4] | BOLT;SEMS | |
| 44. | 4242227 | [2] | BRACKET | |
| 45. | J011225 | [4] | BOLT;SEMS | |
| 47. | 4024286 | [2] | JOINT | |
| 48. | 4142263 | [2] | PLATE;LOCK | |
| 49. | J010610 | [2] | BOLT;SEMS | |
| 51. | 4407739 | [1] | HOSE (D10) | |
| 53. | 4407740 | [1] | HOSE (D11) | |
| 89. | 4338546 | [1] | MANIFOLD | |
| 90. | 4197312 | [1] | BRACKET | |
| 91. | J011030 | [2] | BOLT;SEMS | |
| 93. | J011020 | [2] | BOLT;SEMS | |
| 94. | 4200469 | [2] | ADAPTER;S | |
| 94A. | 4506418 | [1] | O-RING | |
| 95. | 4234652 | [2] | ADAPTER;S | |
| 95A. | 4506418 | [1] | O-RING | |
| 96. | 4033129 | [2] | JOINT;SELF-SEAL | |
| 97. | 4033130 | [1] | JOINT;SELF-SEAL | |
| 98. | 4207744 | [1] | ELBOW;S | |
![]()
