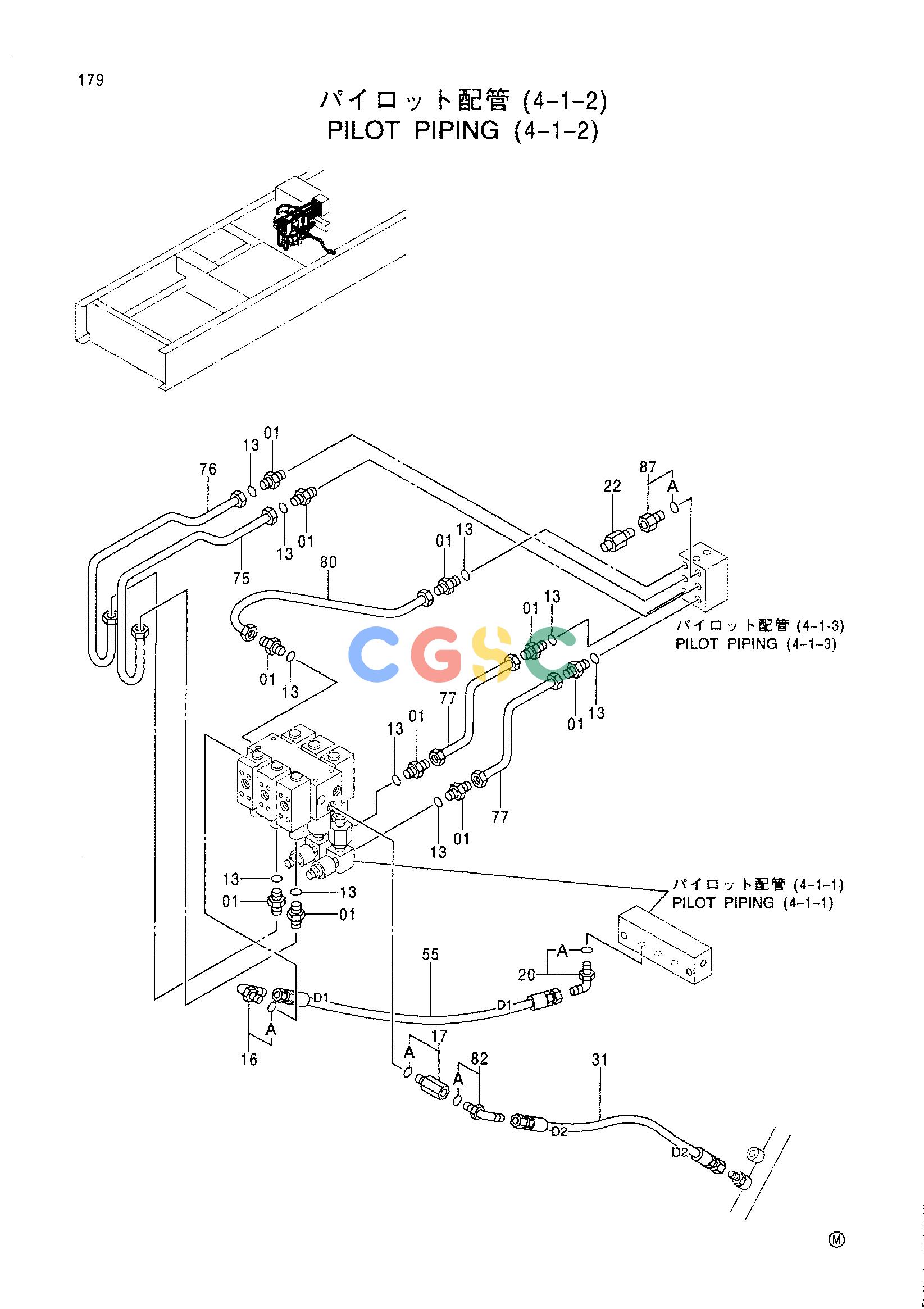

日立零件查询（CX1100）PILOT PIPING (4-1-2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4317623 | [10] | FITTING;PIPE | |
| 13. | 957366 | [10] | O-RING | |
| 16. | 4154671 | [1] | ELBOW;S | |
| 16A. | 4509180 | [1] | O-RING | |
| 17. | 4261357 | [1] | ADAPTER;S | |
| 17A. | 4509180 | [1] | O-RING | |
| 20. | 4156434 | [1] | ELBOW;S | |
| 20A. | 957366 | [1] | O-RING | |
| 22. | 4331359 | [1] | SWITCH;PRES. | |
| 31. | 4385325 | [1] | HOSE | |
| 55. | 4386956 | [1] | HOSE (D1) | |
| 75. | 3082724 | [1] | PIPE | |
| 76. | 3082725 | [1] | PIPE | |
| 77. | 4403475 | [2] | PIPE | |
| 80. | 3082726 | [1] | PIPE | |
| 80. | 4219345 | [1] | ELBOW;S | |
| 82. | 4219345 | [1] | ELBOW;S | |
| 82A. | 4509180 | [1] | O-RING | |
| 87. | 4138898 | [1] | ADAPTER;S | |
| 87A. | 957366 | [1] | O-RING | |
![]()
