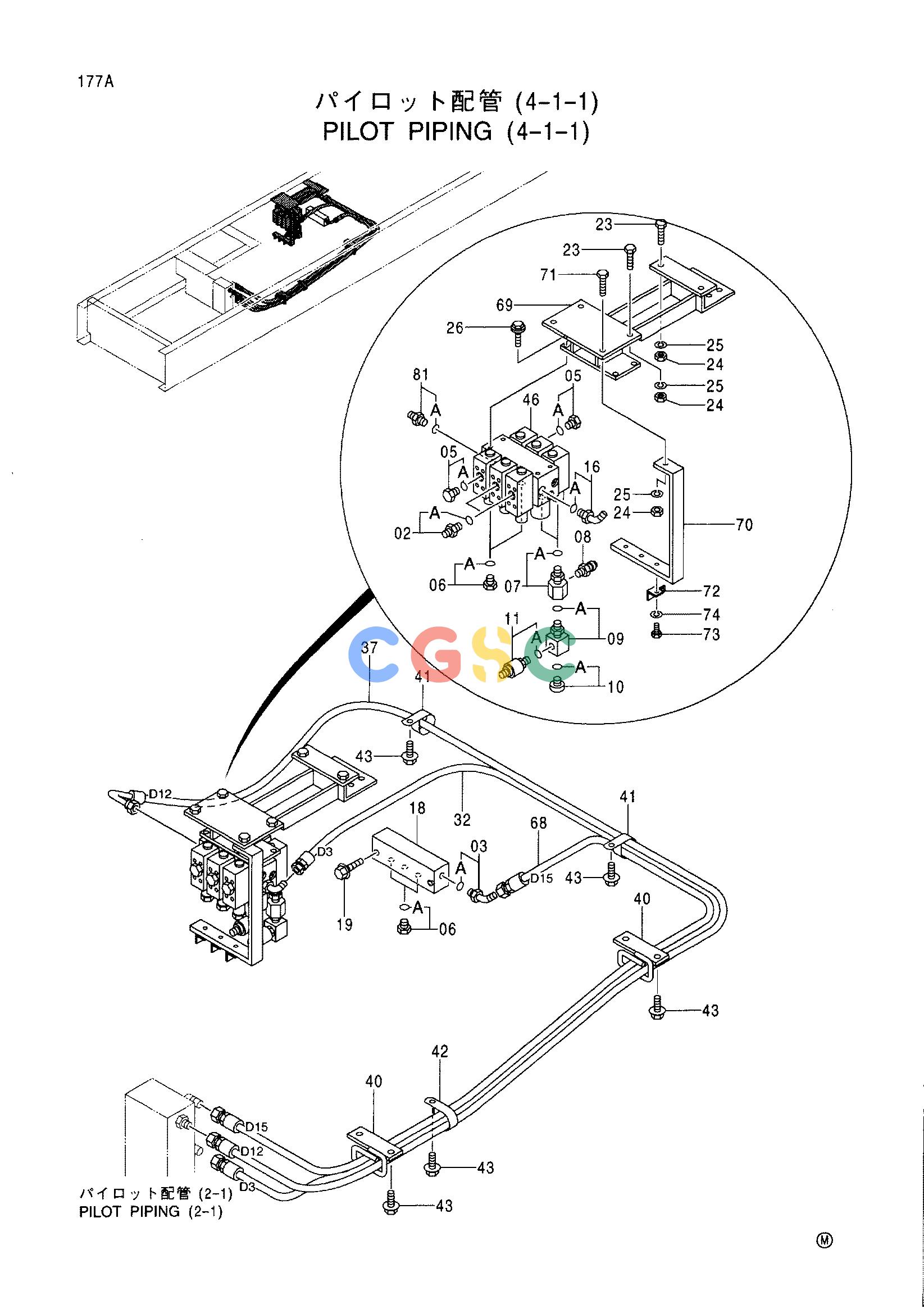

日立零件查询（CX1100）PILOT PIPING (4-1-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 4200466 | [4] | ADAPTER;S | |
| 02A. | 4509180 | [1] | O-RING | |
| 03. | 4190244 | [1] | ELBOW;S | |
| 03A. | 4509180 | [1] | O-RING | |
| 05. | 4092534 | [2] | PLUG | |
| 05A. | 4509180 | [1] | O-RING | |
| 06. | 4093624 | [4] | PLUG | |
| 06A. | 957366 | [1] | O-RING | |
| 07. | 4350510 | [2] | ADAPTER;S | |
| 07A. | 957366 | [1] | O-RING | |
| 08. | 4346128 | [2] | FITTING | |
| 09. | 4376071 | [2] | REDUCER;S | |
| 09A. | 957366 | [1] | O-RING | |
| 10. | 4299028 | [2] | PLUG | |
| 10A. | 4506408 | [1] | O-RING | |
| 11. | 4254563 | [2] | SWITCH;PRESSURE | |
| 11A. | 4113154 | [1] | O-RING | |
| 16. | 4154671 | [1] | ELBOW;S | |
| 16A. | 4509180 | [1] | O-RING | |
| 18. | 3035921 | [1] | MANIFOLD | |
| 19. | J011060 | [2] | BOLT;SEMS | |
| 23. | J901025 | [5] | BOLT | |
| 24. | J950010 | [6] | NUT | |
| 25. | A590910 | [6] | WASHER;SPRING | |
| 26. | J011020 | [4] | BOLT;SEMS | |
| 32. | 4391698 | [1] | HOSE (D3) | |
| 37. | 4334456 | [1] | HOSE (D12) | |
| 40. | 8030483 | [2] | SUPPORT | |
| 41. | 4190264 | [2] | CLIP | |
| 42. | 4190265 | [1] | CLIP | |
| 43. | J011016 | [7] | BOLT;SEMS | |
| 46. | 4374200 | [1] | VALVE;PILOT | |
| 68. | 4369302 | [1] | HOSE (D15) | |
| 69. | 8072628 | [1] | BRACKET | |
| 70. | 4390673 | [1] | BRACKET | |
| 71. | J901030 | [1] | BOLT | |
| 72. | 4252767 | [3] | BRACKET | |
| 73. | J900610 | [3] | BOLT | |
| 74. | A590906 | [3] | WASHER;SPRING | |
| 81. | 4221290 | [1] | ADAPTER;S | |
| 81A. | 4509180 | [1] | O-RING | |
![]()
