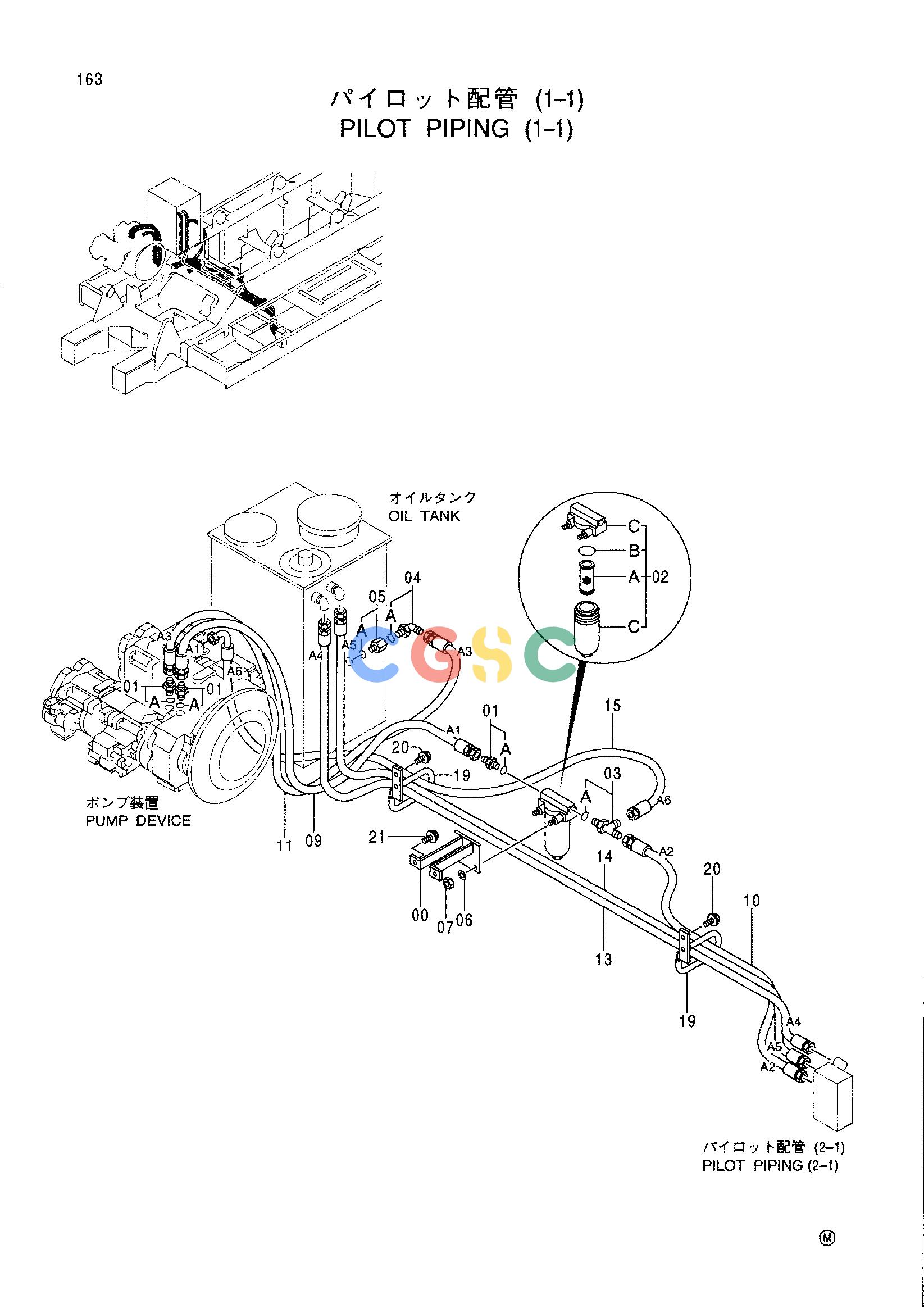

日立零件查询（CX1100）PILOT PIPING (1-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 9750398 | [1] | BRACKET | |
| 01. | 4210361 | [3] | ADAPTER;S | |
| 01A. | 4506418 | [1] | O-RING | |
| 02. | 4365906 | [1] | FILTER;LINE | |
| 02A. | 4378988 | [1] | ELEMENT;FILTER | |
| 02B. | 4422443 | [1] | O-RING | |
| 02C. | +++++++ | [1] | BODY | |
| 03. | 4303003 | [1] | TEE;S | |
| 03A. | 4506418 | [1] | O-RING | |
| 04. | 4154672 | [1] | ELBOW;S | |
| 04A. | 4506418 | [1] | O-RING | |
| 05. | 4263450 | [1] | REDUCER;S | |
| 05A. | 4506424 | [1] | O-RING | |
| 06. | A590910 | [2] | WASHER;SPRING | |
| 07. | J950010 | [2] | NUT | |
| 09. | 4305134 | [1] | HOSE (A1) | |
| 10. | 4252860 | [1] | HOSE (A2) | |
| 11. | 4305139 | [1] | HOSE (A3) | |
| 13. | 4382944 | [1] | HOSE (A4) | |
| 14. | 4382944 | [1] | HOSE (A5) | |
| 15. | 4375319 | [1] | HOSE (A6) | |
| 19. | 9756855 | [2] | SUPPORT | |
| 20. | J011235 | [4] | BOLT;SEMS | |
| 21. | J011225 | [2] | BOLT;SEMS | |
![]()
