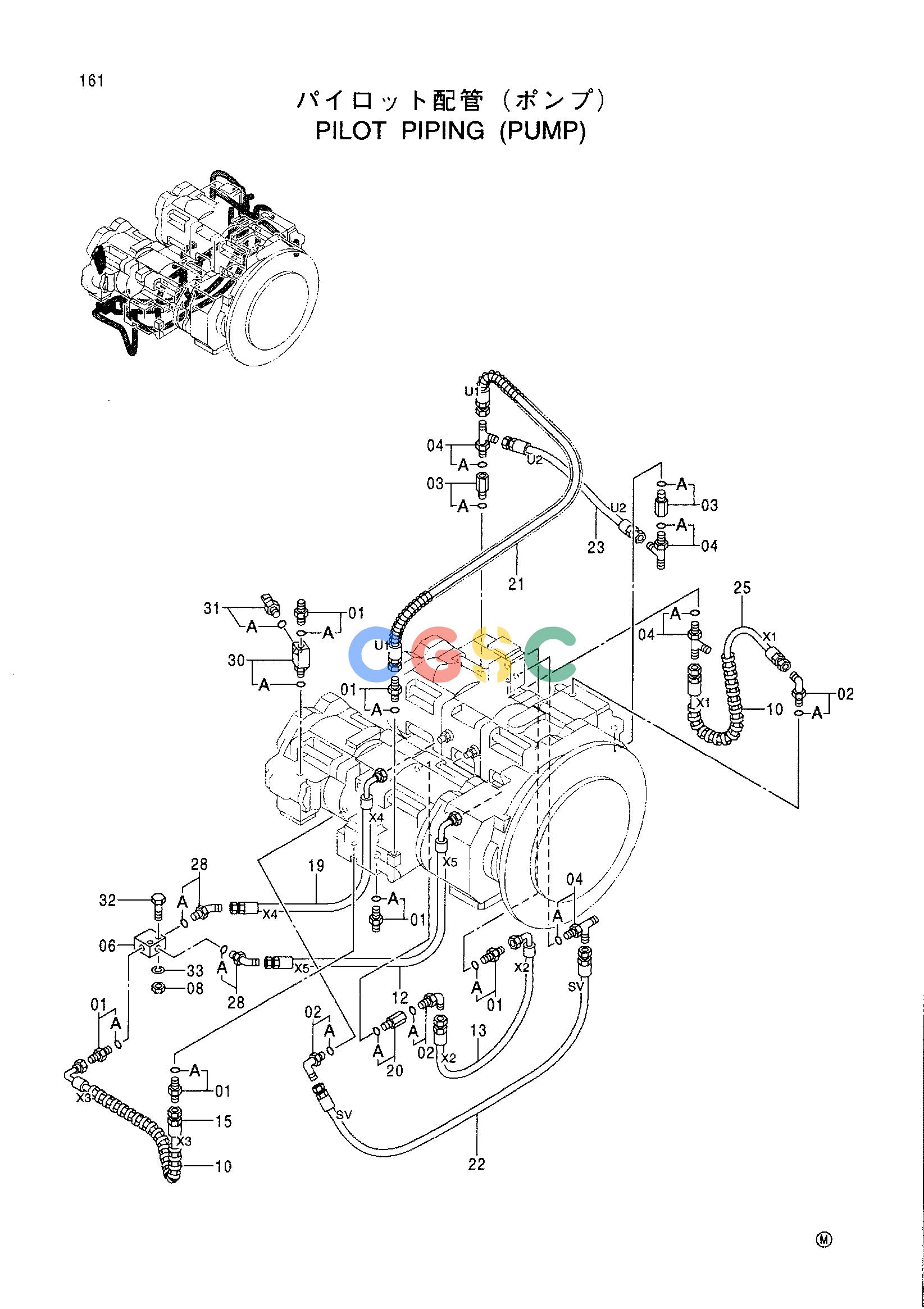

日立零件查询（CX1100）PILOT PIPING (PUMP) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4200467 | [6] | ADAPTER;S | |
| 01A. | 957366 | [1] | O-RING | |
| 02. | 4156434 | [3] | ELBOW;S | |
| 02A. | 957366 | [1] | O-RING | |
| 03. | 4202565 | [2] | ADAPTER;S | |
| 03A. | 957366 | [1] | O-RING | |
| 04. | 4207300 | [4] | TEE;S | |
| 04A. | 957366 | [1] | O-RING | |
| 06. | 3077199 | [1] | MANIFOLD | |
| 08. | M500807 | [2] | NUT | |
| 10. | 4327294 | [2] | PROTECTOR | |
| 12. | 4293016 | [1] | HOSE (X5) | |
| 13. | 4386559 | [1] | HOSE (X2) | |
| 15. | 4406142 | [1] | HOSE (X3) | |
| 19. | 4282052 | [1] | HOSE (X4) | |
| 20. | 4386522 | [1] | ADAPTER;S | |
| 20A. | 957366 | [1] | O-RING | |
| 21. | 4403409 | [1] | HOSE (U1) | |
| 22. | 4333393 | [1] | HOSE (SV) | |
| 23. | 4385504 | [1] | HOSE (U2) | |
| 25. | 4362378 | [1] | HOSE (X1) | |
| 28. | 4200472 | [2] | ELBOW;S | |
| 28A. | 957366 | [1] | O-RING | |
| 30. | 4392463 | [1] | REDUCER;S | |
| 30A. | 957366 | [1] | O-RING | |
| 31. | 4326876 | [1] | SENSOR;PRES. | |
| 31A. | 4150302 | [1] | O-RING | |
| 32. | J900850 | [2] | BOLT | |
| 33. | A590908 | [2] | WASHER;SPRING | |
![]()
