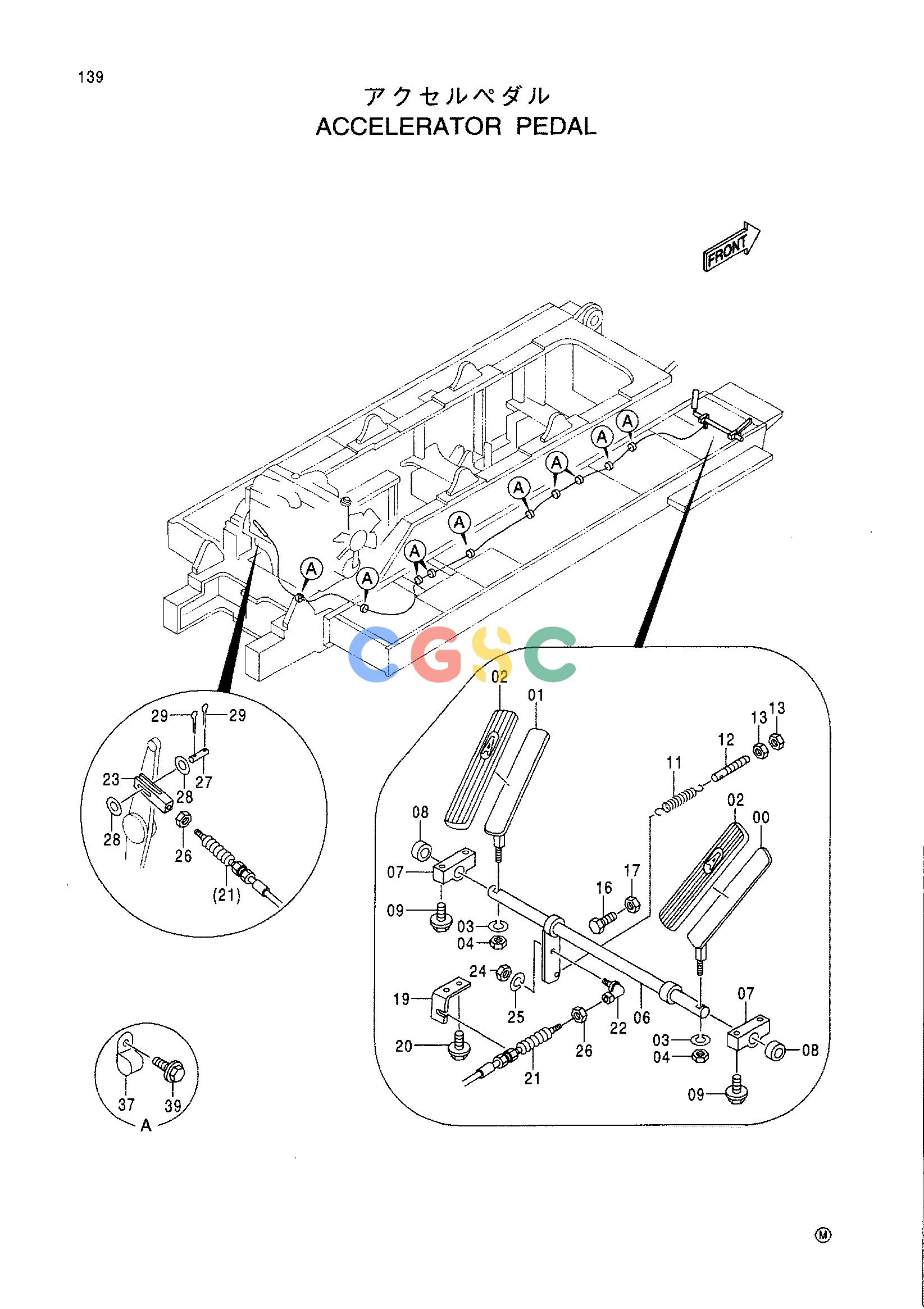

日立零件查询(CX1100)ACCELERATOR PEDAL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025,浏览:次

Pos. | Part No | Qty | Parts name | Comments |
00. | 8056197 | [1] | PEDAL;ACCEL. | |
01. | 8056320 | [1] | PEDAL;ACCEL. | |
02. | 4262540 | [2] | COVER | |
03. | A590910 | [2] | WASHER;SPRING | |
04. | J950010 | [2] | NUT | |
06. | 8058878 | [1] | AXLE | |
07. | 4320283 | [2] | PEDESTAL | |
08. | 4319508 | [2] | BUSHING | |
09. | J011050 | [4] | BOLT;SEMS | |
11. | 423 | [1] | SPRING | |
12. | 4165467 | [1] | ROD | |
13. | J950010 | [2] | NUT | |
16. | J901035 | [1] | BOLT | |
17. | J950010 | [1] | NUT | |
19. | 4331753 | [1] | BRACKET | |
20. | J011020 | [2] | BOLT;SEMS | |
21. | 4391307 | [1] | CABLE;CONTROL | |
22. | 4317626 | [1] | JOINT;BALL | |
23. | 4331751 | [1] | END;FORK | |
24. | M500807 | [1] | NUT | |
25. | A590908 | [1] | WASHER;SPRING | |
26. | M500605 | [2] | NUT | |
27. | 4331752 | [1] | PIN | |
28. | A590106 | [2] | WASHER;PLANE | |
29. | A761610 | [2] | PIN;SPLIT | |
37. | 4190261 | [10] | CLIP | |
39. | J011020 | [10] | BOLT;SEMS | |
