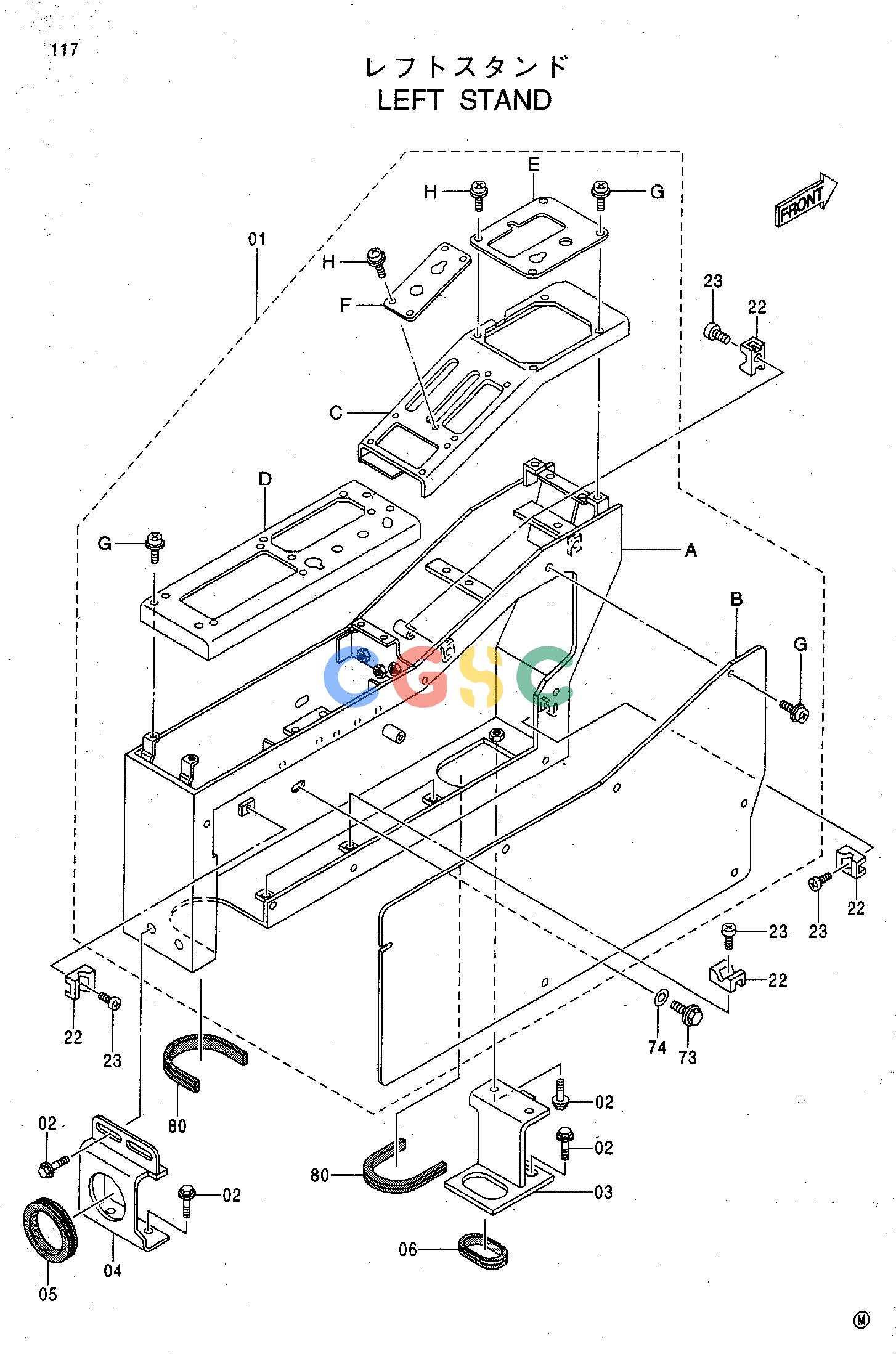

日立零件查询（CX1100）LEFT STAND Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 7038442 | [1] | STAND | |
| 01A. | 6018102 | [1] | STAND | |
| 01B. | 4371051 | [1] | COVER | |
| 01C. | 6017448 | [1] | PANEL;LF | |
| 01D. | 6017447 | [1] | PANEL;LR | |
| 01E. | 3082693 | [1] | COVER | |
| 01F. | 3082694 | [1] | COVER | |
| 01G. | J680616 | [13] | SCREW;SEMS | |
| 01H. | J680412 | [6] | SCREW;SEMS | |
| 02. | J021030 | [8] | BOLT;SEMS | |
| 03. | 8066344 | [1] | BRACKET | |
| 04. | 9742360 | [1] | BRACKET | |
| 05. | 4087462 | [1] | BUSHING;RUBBER | |
| 06. | 4357608 | [1] | BUSHING;RUBBER | |
| 22. | 4196829 | [7] | GUIDE;BAND | |
| 23. | M430610 | [7] | SCREW | |
| 73. | J010820 | [2] | BOLT;SEMS | |
| 74. | A590108 | [2] | WASHER;PLANE | |
| 80. | 4382039 | [2] | RUBBER | |
![]()
