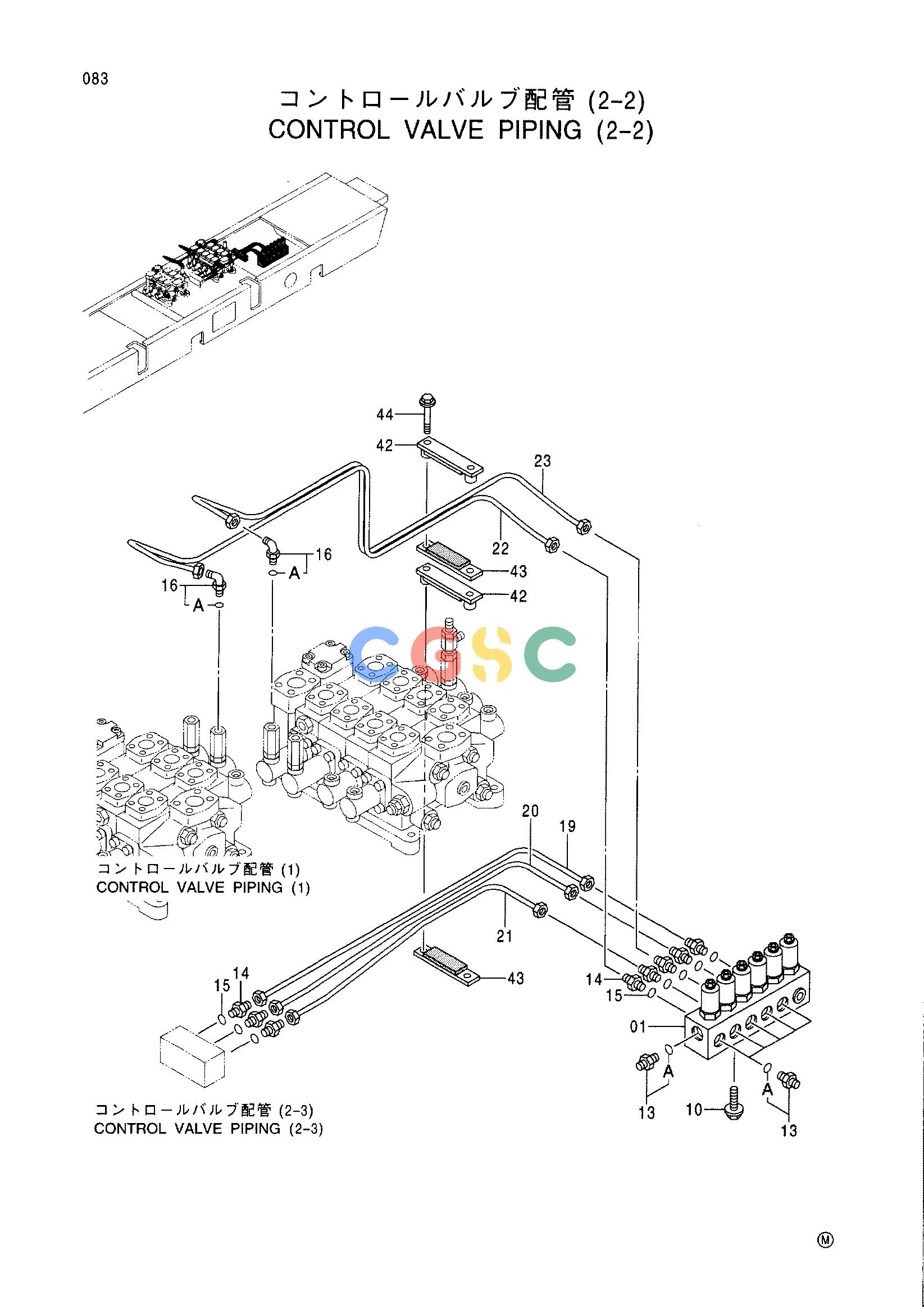

日立零件查询(CX1100)CONTROL VALVE PIPING (2-2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025,浏览:次

Pos. | Part No | Qty | Parts name | Comments |
01. | 4384478 | [1] | VALVE;SOLENOID | |
10. | J010816 | [2] | BOLT;SEMS | |
13. | 4200467 | [6] | ADAPTER;S | |
13A. | 957366 | [1] | O-RING | |
14. | 4317623 | [8] | FITTING;PIPE | |
15. | 964255 | [8] | O-RING | |
16. | 4317622 | [2] | FITTING;PIPE | |
16A. | 957366 | [1] | O-RING | |
19. | 4439314 | [1] | PIPE | |
20. | 4439313 | [1] | PIPE | |
21. | 4439312 | [1] | PIPE | |
22. | 4439315 | [1] | PIPE | |
23. | 4439316 | [1] | PIPE | |
42. | 9740681 | [2] | CLAMP | |
43. | 9741175 | [2] | CLAMP | |
44. | J011045 | [2] | BOLT;SEMS | |
