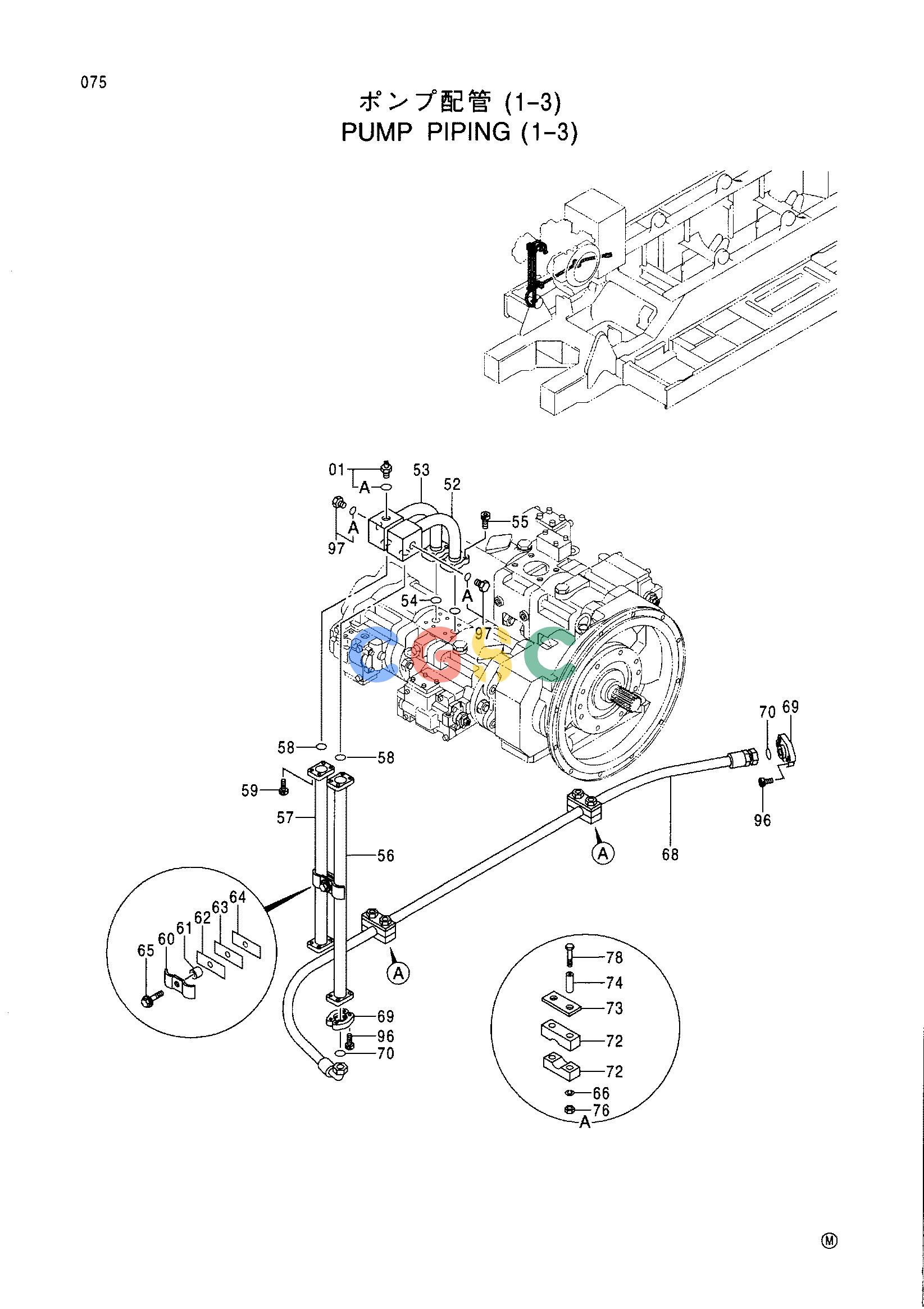

日立零件查询（CX1100）PUMP PIPING (1-3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4339754 | [1] | SENSOR;PRES. | |
| 01A. | 4150302 | [1] | O-RING | |
| 52. | 8072617 | [1] | PIPE | |
| 53. | 8072616 | [1] | PIPE | |
| 54. | A811035 | [2] | O-RING | |
| 55. | M341236 | [8] | BOLT;SOCKET | |
| 56. | 8065742 | [1] | PIPE | |
| 57. | 8065740 | [1] | PIPE | |
| 58. | A811035 | [2] | O-RING | |
| 59. | M341236 | [8] | BOLT;SOCKET | |
| 60. | 4367900 | [1] | CLAMP;PIPE | |
| 61. | 4367908 | [1] | SPACER | |
| 62. | 4367906 | [2] | SHIM | |
| 63. | 4367905 | [1] | SHIM | |
| 64. | 4367907 | [2] | SHIM | |
| 65. | J011260 | [1] | BOLT;SEMS | |
| 66. | A590912 | [4] | WASHER;SPRING | |
| 68. | 4367885 | [1] | HOSE | |
| 69. | 4085560 | [4] | FLANGE;SPLIT | |
| 70. | 966993 | [2] | O-RING | |
| 72. | 4341808 | [4] | CLAMP;HOSE | |
| 73. | 4341803 | [2] | PLATE | |
| 74. | 4205614 | [4] | SPACER | |
| 76. | J950012 | [4] | NUT | |
| 78. | J901285 | [4] | BOLT | |
| 96. | M341245 | [8] | BOLT;SOCKET | |
| 97. | 4092534 | [2] | PLUG | |
| 97A. | 4509180 | [1] | O-RING | |
![]()
