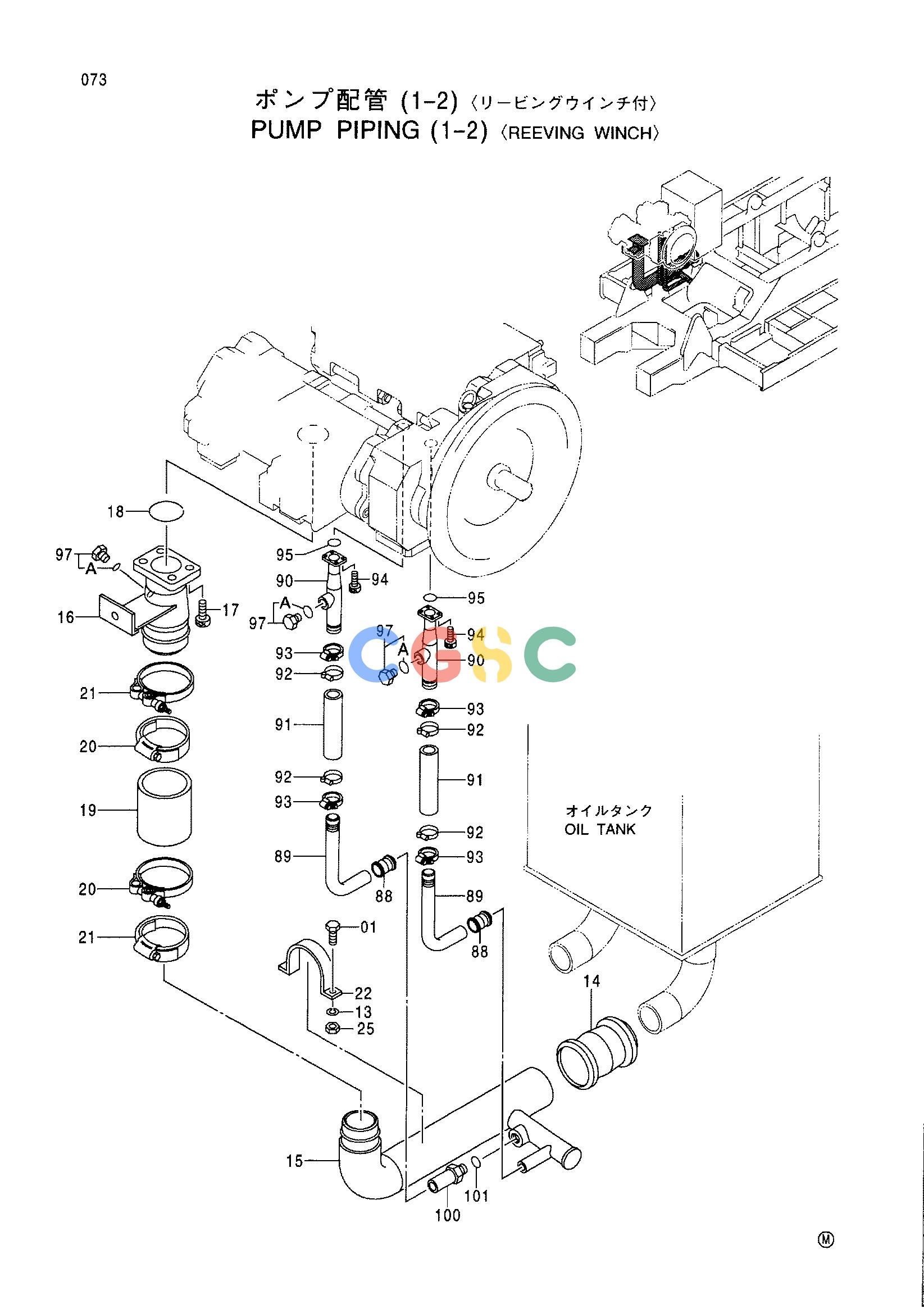

日立零件查询（CX1100）PUMP PIPING (1-2) <REEVING WINCH> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | J901030 | [2] | BOLT | |
| 13. | A590910 | [2] | WASHER;SPRING | |
| 14. | 4196160 | [1] | COUPLING;PIPE | |
| 15. | 7031553 | [1] | PIPE;SUCTION | |
| 16. | 8065841 | [1] | PIPE;SUCTION | |
| 17. | M341640 | [4] | BOLT;SOCKET | |
| 18. | A811090 | [1] | O-RING | |
| 19. | 4367902 | [1] | HOSE;RUBBER | |
| 20. | 4282491 | [2] | CLAMP;HOSE | |
| 21. | 4245194 | [2] | CLAMP;HOSE | |
| 22. | 4207010 | [1] | CLAMP;PIPE | |
| 25. | J950010 | [2] | NUT | |
| 88. | 4071213 | [2] | COUPLING | |
| 89. | 9746425 | [2] | PIPE | |
| 90. | 9746421 | [2] | PIPE | |
| 91. | 4084123 | [2] | HOSE;RUBBER | |
| 92. | 4296063 | [4] | CLAMP;HOSE | |
| 93. | 4011675 | [4] | CLAMP;HOSE | |
| 94. | M341036 | [8] | BOLT;SOCKET | |
| 95. | A811030 | [2] | O-RING | |
| 97. | 4092534 | [3] | PLUG | |
| 97A. | 4509180 | [1] | O-RING | |
| 100. | 4395706 | [1] | ADAPTER;S | |
| 101. | 4506429 | [1] | O-RING | |
