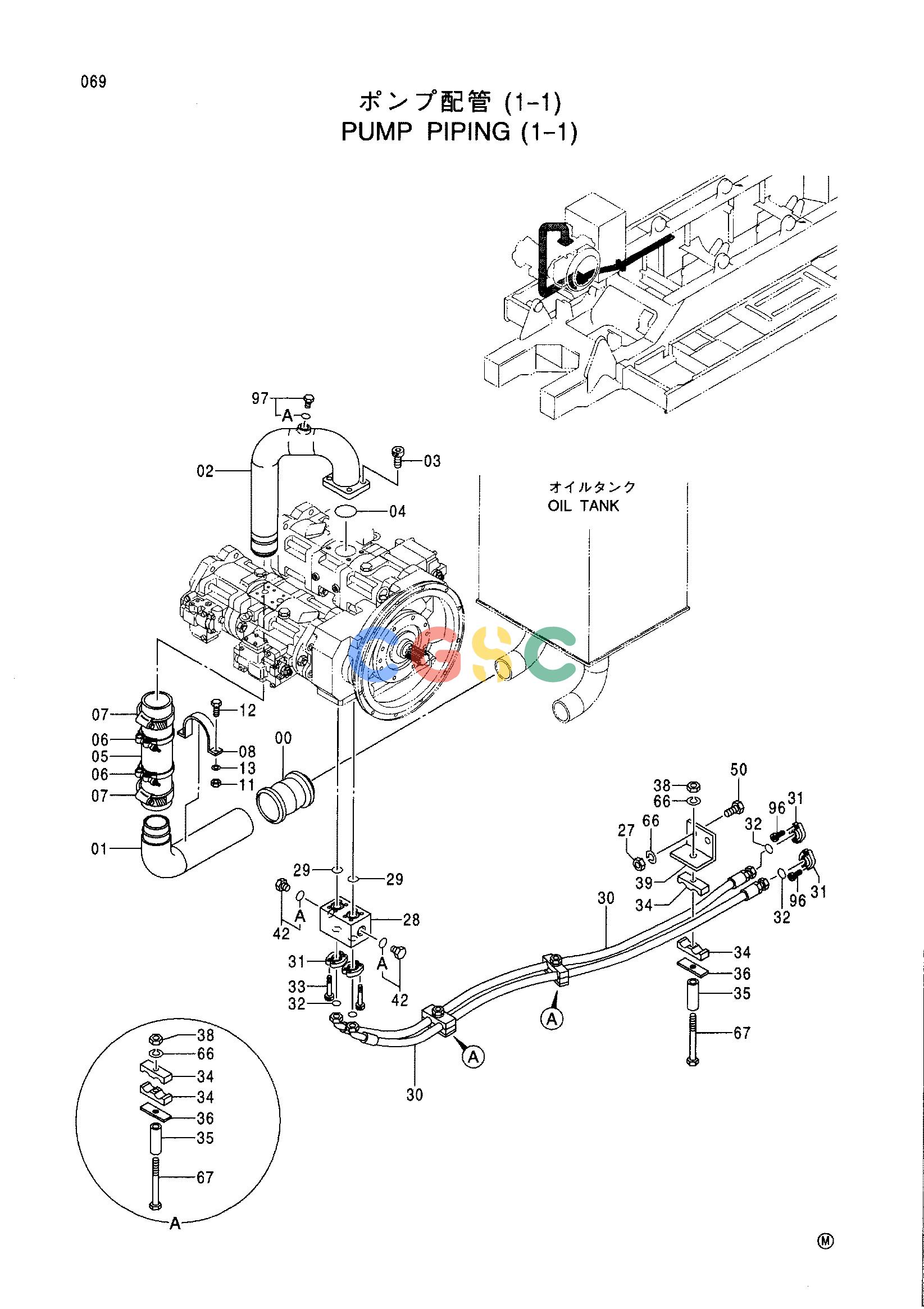

日立零件查询（CX1100）PUMP PIPING (1-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4202560 | [1] | COUPLING;PIPE | |
| 01. | 9746382 | [1] | PIPE;SUCTION | |
| 02. | 7031505 | [1] | PIPE;SUCTION | |
| 03. | M341640 | [4] | BOLT;SOCKET | |
| 04. | A811090 | [1] | O-RING | |
| 05. | 4367901 | [1] | HOSE;RUBBER | |
| 06. | 4282488 | [2] | CLAMP;HOSE | |
| 07. | 4512716 | [2] | CLAMP;HOSE | |
| 08. | 4186854 | [1] | CLAMP;PIPE | |
| 11. | J950010 | [2] | NUT | |
| 12. | J901030 | [2] | BOLT | |
| 13. | A590910 | [2] | WASHER;SPRING | |
| 27. | J950012 | [2] | NUT | |
| 28. | 3075591 | [1] | MANIFOLD | |
| 29. | A811040 | [2] | O-RING | |
| 30. | 4367884 | [2] | HOSE | |
| 31. | 4085560 | [8] | FLANGE;SPLIT | |
| 32. | 966993 | [4] | O-RING | |
| 33. | M341203 | [8] | BOLT;SOCKET | |
| 34. | 4205615 | [6] | CLAMP;HOSE | |
| 35. | 4205614 | [3] | SPACER | |
| 36. | 4224002 | [3] | PLATE | |
| 38. | J950012 | [3] | NUT | |
| 39. | 4372429 | [1] | BRACKET | |
| 42. | 4113926 | [2] | PLUG | |
| 42A. | 4506429 | [1] | O-RING | |
| 50. | J901230 | [2] | BOLT | |
| 66. | A590912 | [5] | WASHER;SPRING | |
| 67. | J901295 | [3] | BOLT | |
| 96. | M341245 | [8] | BOLT;SOCKET | |
| 97. | 4092534 | [1] | PLUG | |
| 97A. | 4509180 | [1] | O-RING | |
