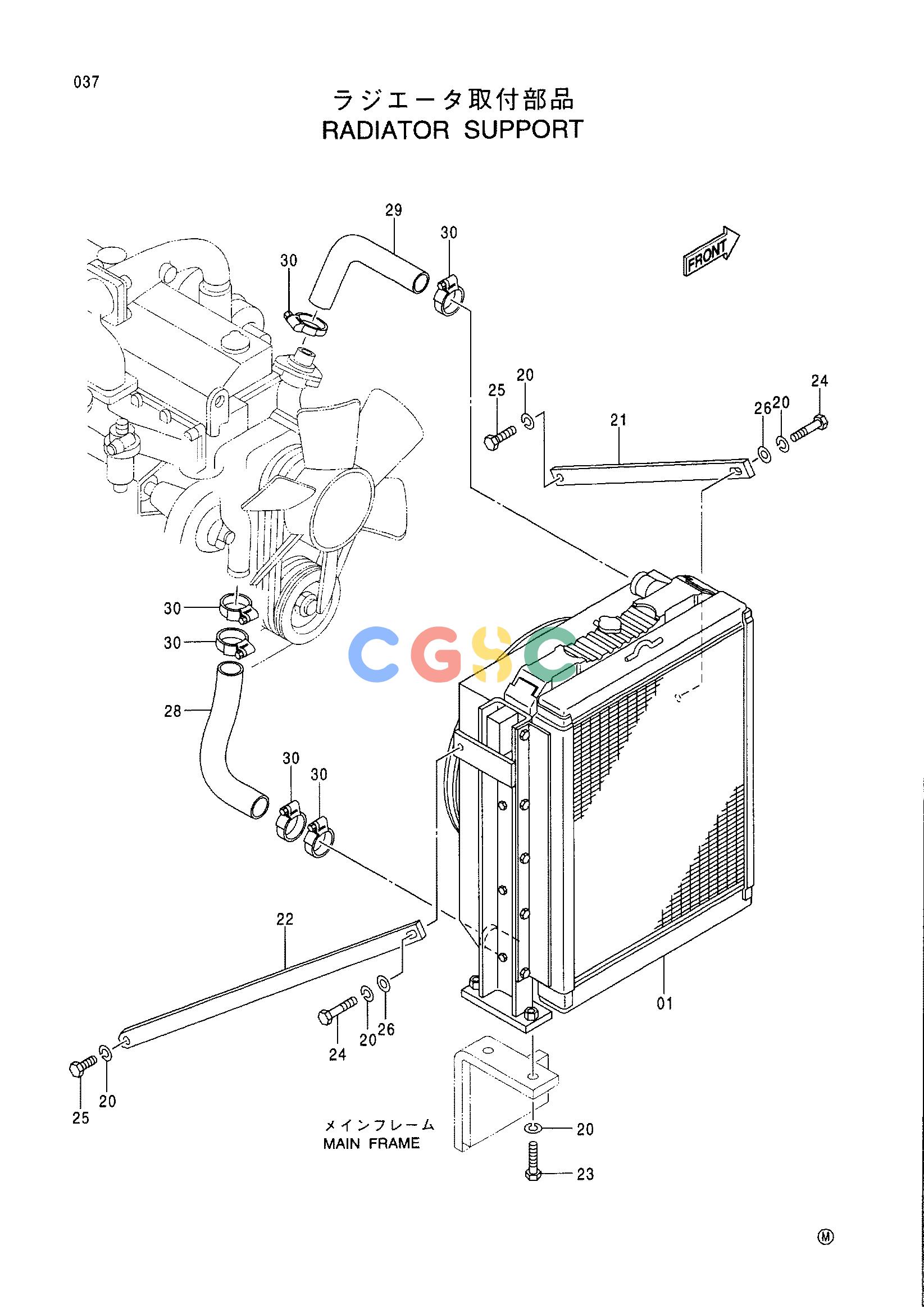

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 4388099 | [1] | RADIATOR | |
| 20. | A590916 | [8] | WASHER;SPRING | |
| 21. | 4241593 | [1] | STAY | |
| 22. | 4260362 | [1] | STAY | |
| 23. | J901650 | [4] | BOLT | |
| 24. | J901640 | [2] | BOLT | |
| 25. | J901635 | [2] | BOLT | |
| 26. | A590116 | [2] | WASHER;PLANE | |
| 28. | 4393087 | [1] | HOSE | |
| 29. | 3080741 | [1] | HOSE | |
| 30. | 4504491 | [6] | CLAMP;HOSE |
