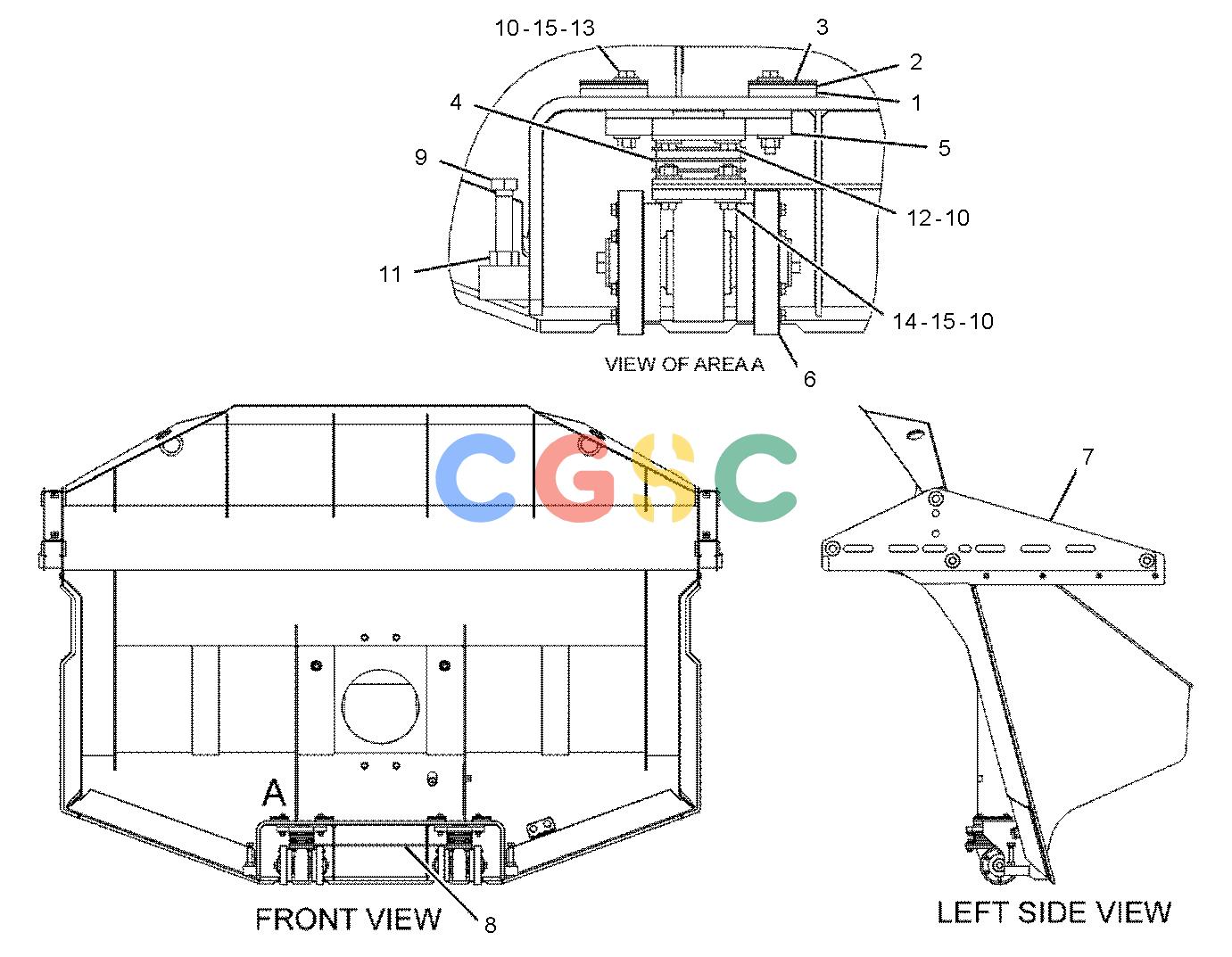

卡特零件查询（730） 251-7397: BLADE GP-EJECTOR
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 206-2414B | [8] | SHIM(10-MM THK) | |
| 2. | 206-2415B | [4] | SHIM(5-MM THK) | |
| 3. | 206-2416B | [8] | SHIM(2-MM THK) | |
| 4. | 206-3943 | [2] | BLOCK | |
| 5. | 206-4116 | [2] | PLATE-ADAPTER | |
| 6. | 292-7832Y | [2] | ROLLER GP-EJECTOR | |
| 7. | 254-3095 | [1] | BLADE AS(EJECTOR) | |
| 8. | 301-7713 | [1] | PLATE-REACTION | |
| 9. | 168-7790M | [2] | BOLT(M20X2.5X130-MM) | |
| 10. | 5P-1076 | [40] | WASHER-HARD(13.5X30X4-MM THK) | |
| 11. | 8T-4131M | [2] | NUT(M20X2.5-THD) | |
| 12. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 13. | 8T-4176M | [8] | BOLT(M12X1.75X90-MM) | |
| 14. | 8T-4184M | [8] | BOLT(M12X1.75X45-MM) | |
| 15. | 8T-4244M | [16] | NUT(M12X1.75-THD) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
![]()
