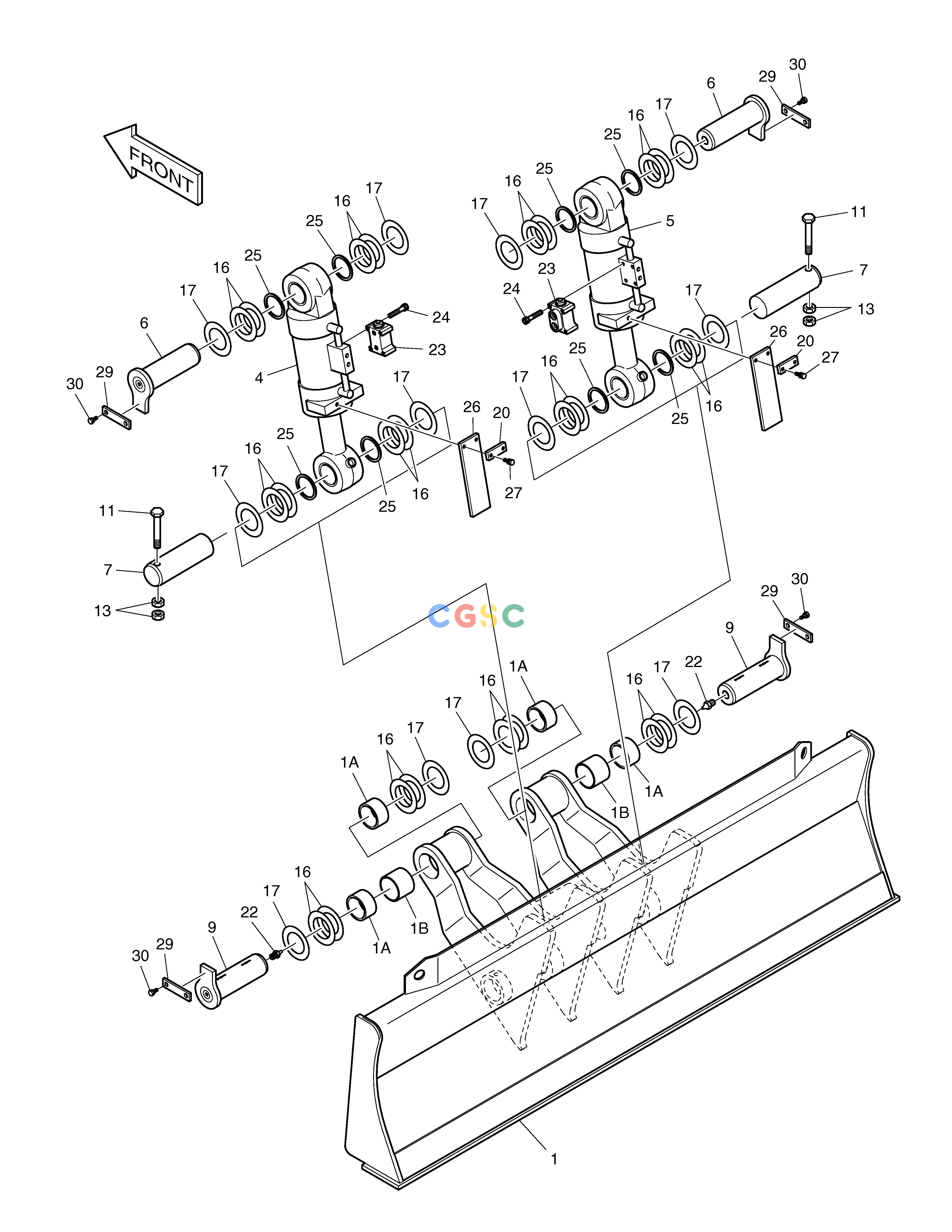

斗山零件查询BLADE SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
608-00029B
|
[-] |
BLADE ASS'Y
|
|
| -. |
230102-00053
|
[-] |
|
|
| 1. |
608-00028E
|
[1] |
BLADE;DOZER
|
|
| 11. |
S0571666
|
[2] |
BOLT M20X2.5X150
|
|
| 13. |
S4013133
|
[4] |
NUT
|
|
| 16. |
2114-1059D174
|
[24] |
SHIM
|
|
| 17. |
2114-1059D175
|
[12] |
SHIM
|
|
| 1A. |
2110-1027D21
|
[4] |
BUSHING
|
|
| 1B. |
114-00524
|
[2] |
SPACER
|
|
| 20. |
191-03733
|
[2] |
PLATE
|
|
| 22. |
S6710041
|
[2] |
NIPPLE,GREASE
|
|
| 23. |
2426-9026B
|
[2] |
VALVE;PILOT CHECK
|
|
| 24. |
S2212966
|
[8] |
BOLT;SOCKET M10X1.5X65
|
|
| 25. |
2180-9055
|
[8] |
SEAL;DUST
|
|
| 26. |
161-00629A
|
[2] |
PLATE
|
|
| 27. |
2120-2196D15
|
[4] |
BOLT;SET M10X1.5X35
|
|
| 29. |
621-02256
|
[4] |
PLATE
|
|
| 30. |
2120-2196D2
|
[8] |
BOLT;SET M10X1.5X25
|
|
| 4. |
440-00341
|
[1] |
CYLINDER;BLADE(L.H.)
|
|
| 5. |
440-00342
|
[1] |
CYLINDER;BLADE(R.H.)
|
|
| 6. |
123-00453
|
[2] |
PIN
|
120501-01013
|
| 6. |
120501-01013
|
[2] |
|
|
| 7. |
123-00431
|
[2] |
PIN
|
120501-01014
|
| 7. |
120501-01014
|
[2] |
|
|
| 9. |
123-00448A
|
[2] |
PIN
|
120501-01015
|
| 9. |
120501-01015
|
[2] |
|
|
![]()
