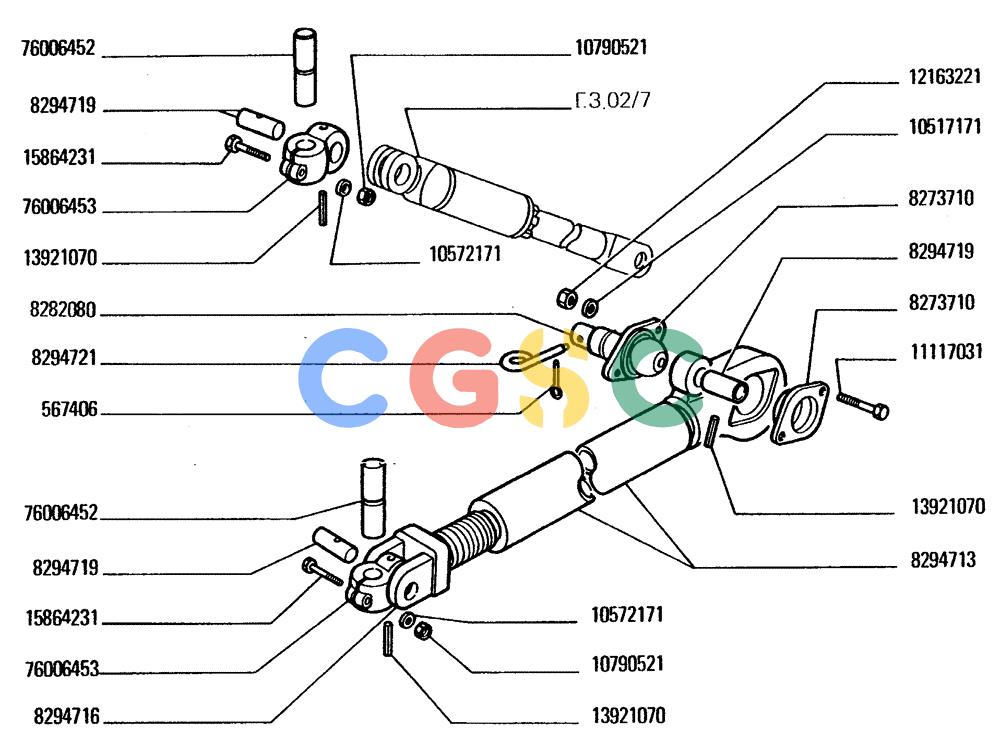

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.10/6[001]) - DOZER BLADE LIFTING ARMS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 567406. | 5112606 | [2] | COTTER PIN | TTFSPLIT PIN |
| 8273710. | 8273710 | [4] | FLANGE | LEC |
| 8282080. | 8282080 | [2] | PIN | LEC |
| 8294713. | 8294713 | [2] | STRUT | LEC |
| 8294716. | 8294716 | [2] | TRACK ROD END ASSY | LECEND Superseded by part number: 76092041 |
| 8294719. | 8294719 | [6] | PIN | LEC |
| 8294721. | 8294721 | [2] | PIN | LECTAPER PIN |
| 10517171. | 10517171 | [4] | LOCK WASHER,14.2mm ID x 24.1mm OD x 3.5mm Thk | MKTLOCKWASHER Superseded by part number: 10572074 |
| 10572171. | 10572171 | [4] | LOCK WASHER,M16 | HFILOCKWASHER Superseded by part number: 10572173 |
| 10790521. | 12164121 | [4] | NUT,M16 x 1.5, Cl 10 | TTF |
| 11117031. | 11117031 | [4] | BOLT,Hex, M14 x 90, 10.9 | LEC |
| 12163221. | 12163221 | [4] | NUT,M14, Cl 10 | LEC Superseded by part number: 87564740 |
| 13921070. | 13921070 | [6] | ROLL PIN,M12 x 95, Coiled | LECSPRING PIN |
| 15864231. | 15864231 | [4] | BOLT,Hex, M16 x 1.5 x 115mm, Cl 10.9 | LECSCREW Superseded by part number: 15864224 |
| 76006452. | 76006452 | [4] | PIN | LEC |
| 76006453. | 76006453 | [4] | PIVOT | LECEND |
![]()
