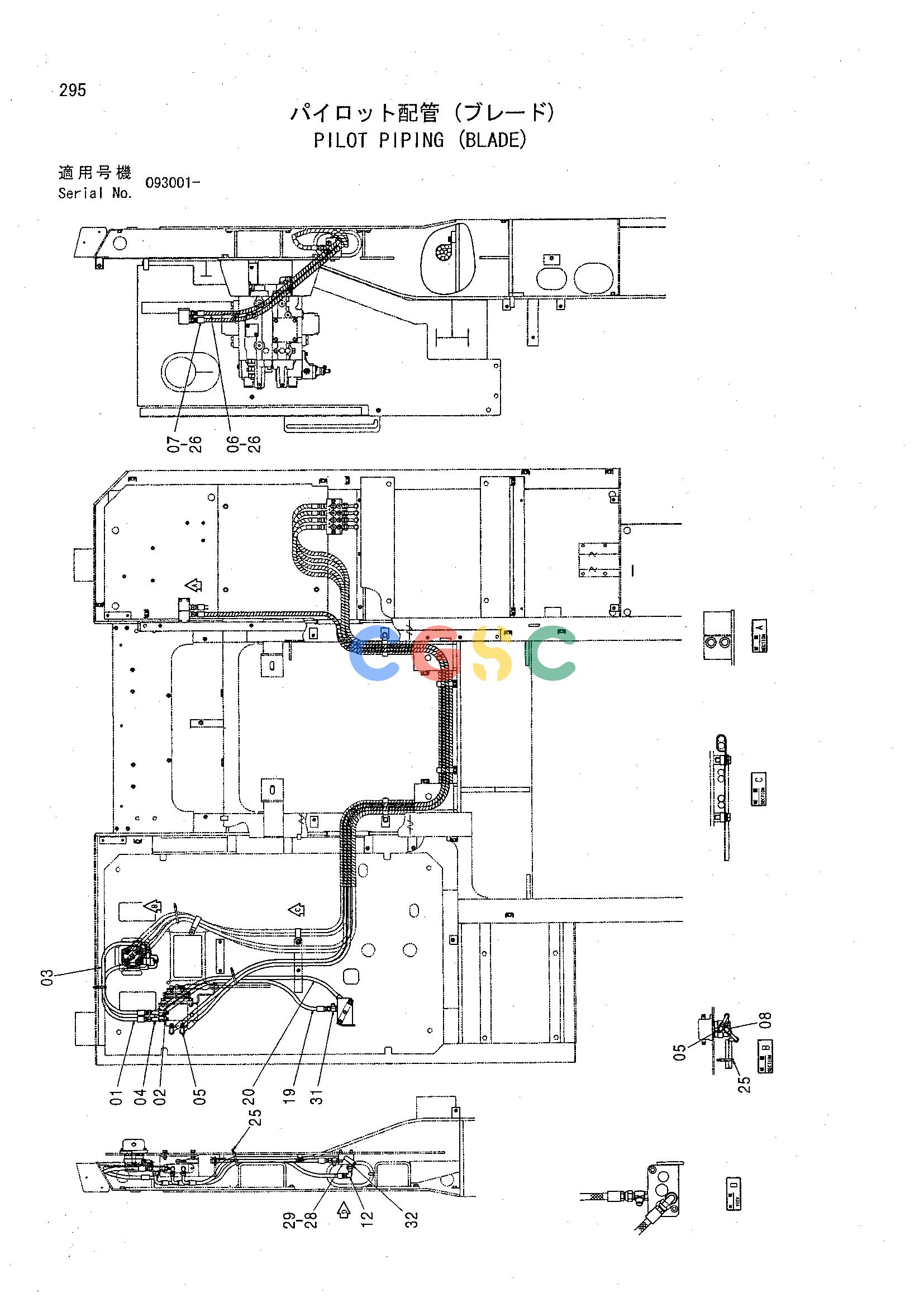

日立零件查询（CHR70）PILOT PIPING (BLADE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4282194 | [1] | HOSE | |
| 02. | 4200467 | [2] | ADAPTER;S | |
| 02A. | 957366 | [1] | O-RING | |
| 03. | 4332940 | [1] | HOSE | |
| 04. | 4246672 | [2] | UNION;M | |
| 05. | 4156434 | [3] | ELBOW;S | |
| 05A. | 957366 | [1] | O-RING | |
| 06. | 4376809 | [1] | HOSE (2) | |
| 07. | 4376808 | [1] | HOSE (1) | |
| 08. | 4278442 | [1] | ELBOW;S | |
| 08A. | 957366 | [1] | O-RING | |
| 12. | 4239976 | [1] | UNION;S | |
| 19. | 4360873 | [1] | HOSE | |
| 20. | 4346008 | [1] | HOSE;NYLON | |
| 25. | 4055312 | [2] | CLIP;BAND | |
| 26. | 4327293 | [10] | PROTECTOR | |
| 28. | 4334827 | [1] | VALVE;LOCK | |
| 29. | J781045 | [2] | BOLT;SOCKET | |
| 31. | 4367031 | [1] | FILTER | |
| 31A. | 4509180 | [1] | O-RING | |
| 32. | A852133 | [1] | ADAPTER;S | |
| 32A. | 4509180 | [1] | O-RING | |
![]()
