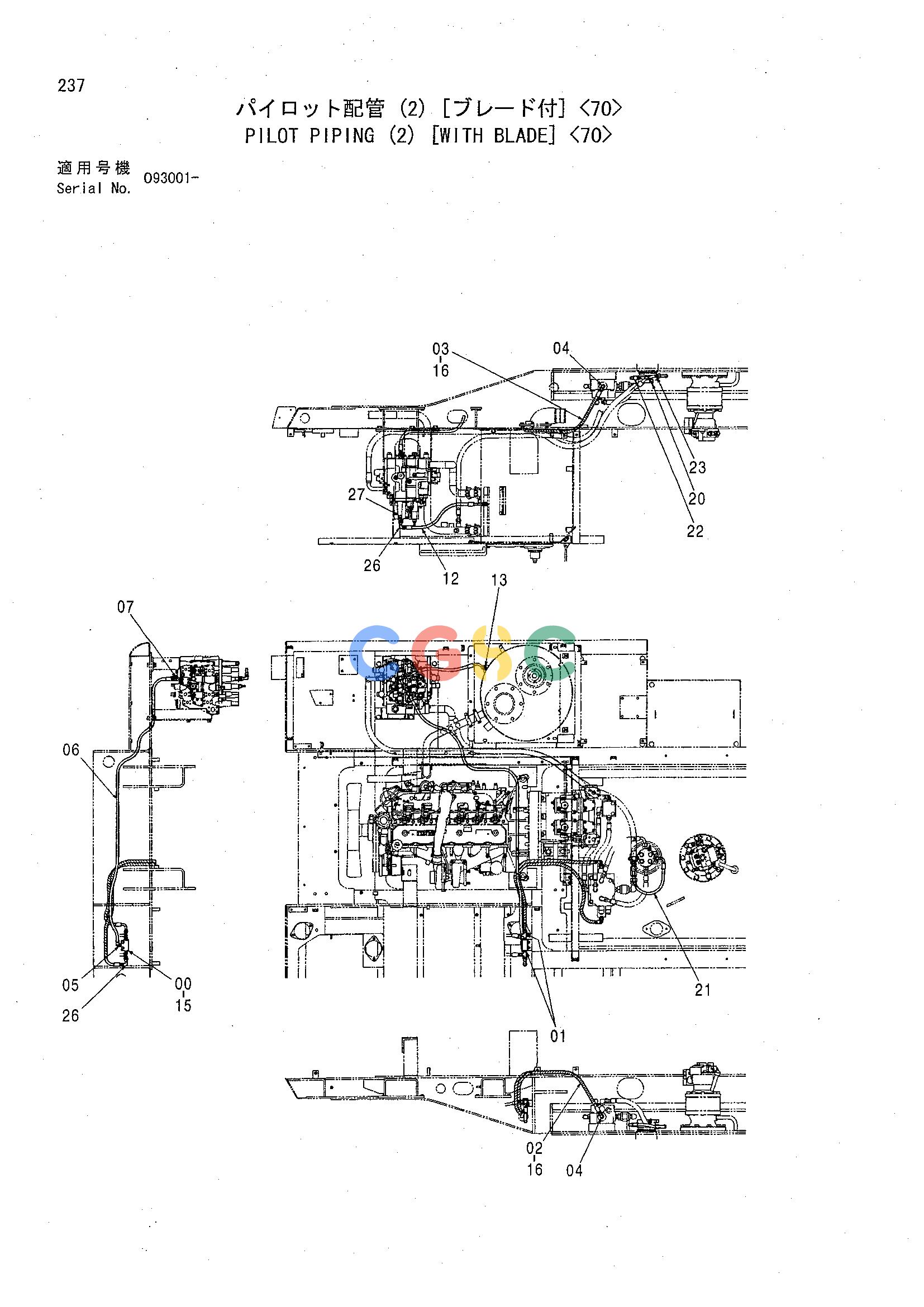

日立零件查询（CHR70）PILOT PIPING (2) [WITH BLADE] <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4203447 | [1] | VALVE;SHUTTLE | |
| 01. | 4207300 | [2] | TEE;S | |
| 01A. | 957366 | [1] | O-RING | |
| 02. | 4218430 | [1] | HOSE | |
| 03. | 4269849 | [1] | HOSE | |
| 04. | 4154671 | [2] | ELBOW;S | |
| 04A. | 4509180 | [1] | O-RING | |
| 05. | 4156434 | [1] | ELBOW;S | |
| 05A. | 957366 | [1] | O-RING | |
| 06. | 4270444 | [1] | HOSE | |
| 07. | 4200466 | [1] | ADAPTER;S | |
| 07A. | 4509180 | [1] | O-RING | |
| 12. | 4367855 | [1] | HOSE (T2) | |
| 13. | 4200466 | [1] | ADAPTER;S | |
| 13A. | 4509180 | [1] | O-RING | |
| 15. | J010850 | [2] | BOLT;SEMS | |
| 15. | J260850 | [2] | BOLT;SEMS | TJ900850 |
| 15. | J260850 | [2] | BOLT;SEMS | TA590108 |
| 16. | 4133527 | [4] | PROTECTOR | |
| 20. | 4154670 | [1] | ELBOW;S | |
| 20A. | 957366 | [1] | O-RING | |
| 21. | 4300565 | [1] | HOSE | |
| 22. | 4234371 | [1] | TEE;S | |
| 22A. | 4509180 | [1] | O-RING | |
| 23. | 4200467 | [1] | ADAPTER;S | |
| 23A. | 957366 | [1] | O-RING | |
| 26. | 4239976 | [2] | UNION;S | |
| 27. | 4202422 | [1] | ADAPTER;S | |
| 27A. | 4509180 | [1] | O-RING | |
![]()
