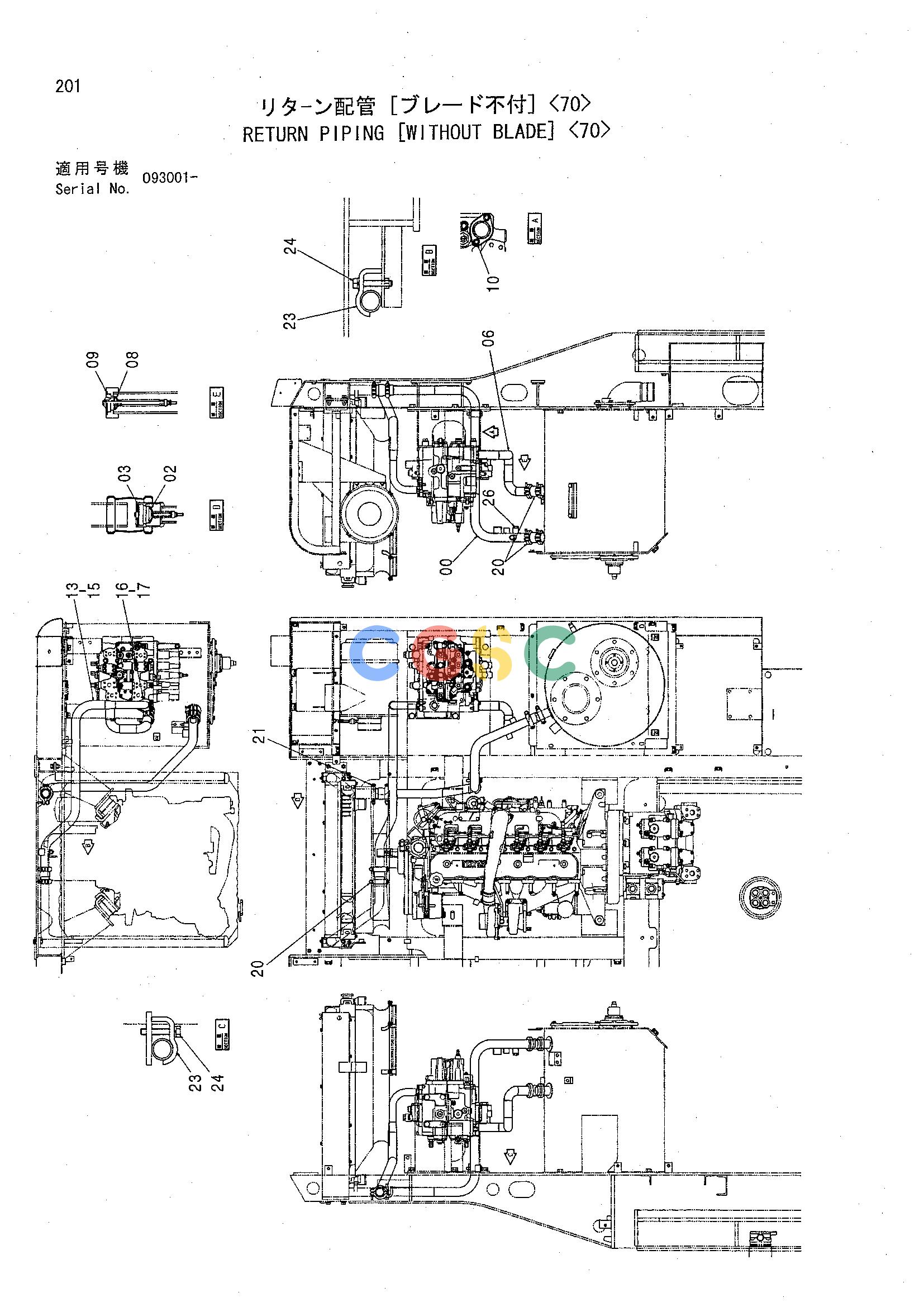

日立零件查询（CHR70）RETURN PIPING [WITHOUT BLADE] <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 7035796 | [1] | PIPE;RETURN | |
| 02. | 4276584 | [1] | VALVE | |
| 03. | 991718 | [1] | RING;RETAINING | |
| 06. | 8072130 | [1] | PIPE;RETURN | |
| 08. | 4266481 | [1] | VALVE | |
| 09. | A811040 | [1] | O-RING | |
| 10. | J781040 | [2] | BOLT;SOCKET | |
| 13. | 7035795 | [1] | PIPE;RETURN | |
| 15. | 966993 | [1] | O-RING | |
| 16. | 962453 | [2] | FLANGE;SPLIT | |
| 17. | J781030 | [4] | BOLT;SOCKET | |
| 20. | 4069801 | [3] | COUPLING | |
| 20A. | 4196259 | [2] | SEAL;RING | |
| 21. | 4067834 | [1] | COUPLING | |
| 21A. | 4196260 | [2] | SEAL;RING | |
| 23. | 4053698 | [2] | CLAMP;PIPE | |
| 24. | J011270 | [2] | BOLT;SEMS | |
| 24. | J271270 | [2] | BOLT;SEMS | TJ901270 |
| 24. | J271270 | [2] | BOLT;SEMS | TJ222012 |
| 26. | 4092534 | [1] | PLUG | |
| 26A. | 4509180 | [1] | O-RING | |
![]()
