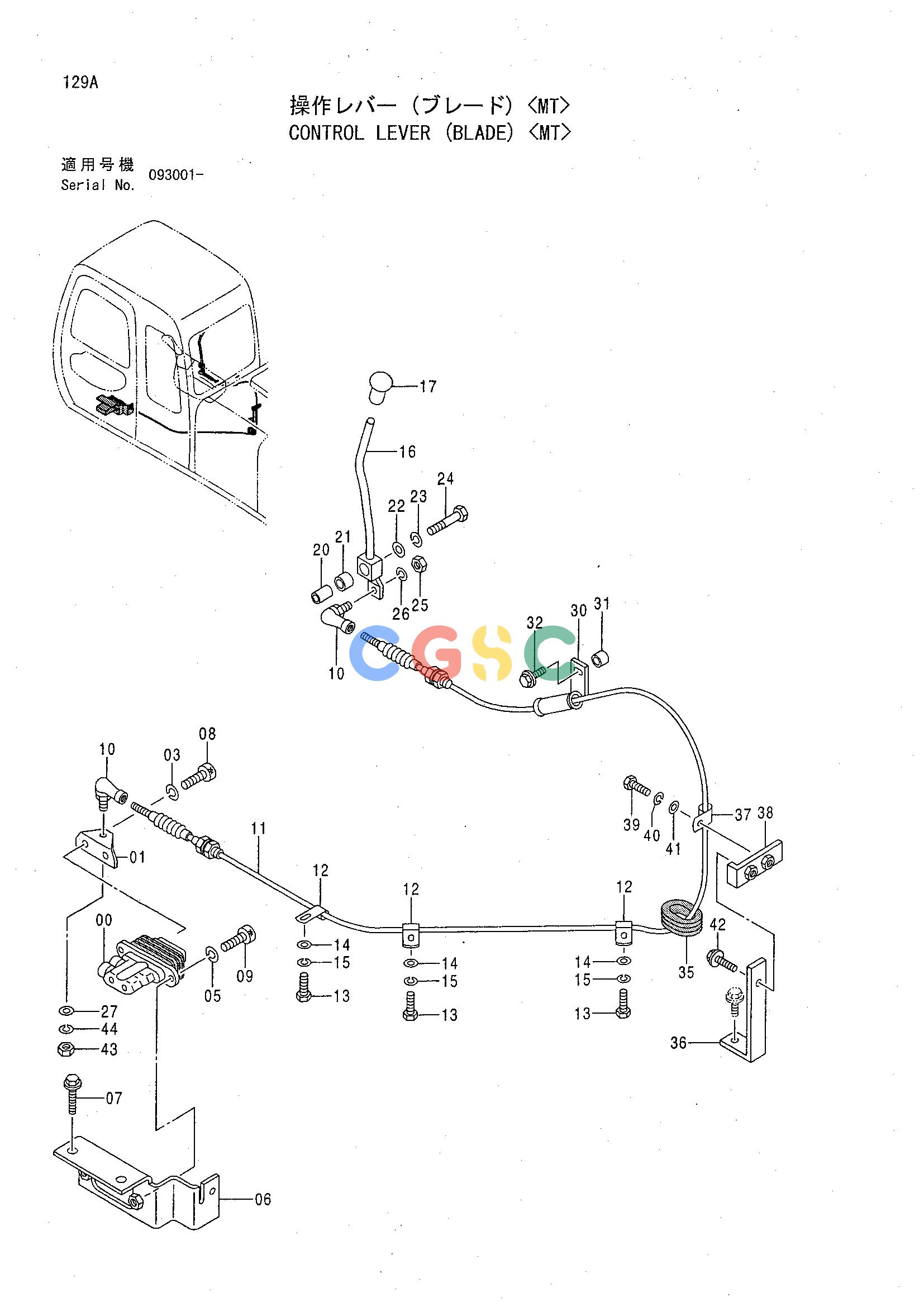

日立零件查询（CHR70）CONTROL LEVER (BLADE) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4330467 | [1] | VALVE;PILOT | |
| 01. | 4455732 | [1] | BRACKET | |
| 03. | A590910 | [2] | WASHER;SPRING | |
| 05. | A590910 | [2] | WASHER;SPRING | |
| 06. | 7033089 | [1] | BRACKET | |
| 07. | J021035 | [2] | BOLT;SEMS | |
| 07. | J271035 | [2] | BOLT;SEMS | TJ901035 |
| 07. | J271035 | [2] | BOLT;SEMS | TJ222010 |
| 08. | J781016 | [2] | BOLT;SOCKET | |
| 09. | J781030 | [2] | BOLT;SOCKET | |
| 10. | 4056017 | [2] | JOINT;BALL | |
| 11. | 4385352 | [1] | CABLE;CONTROL | |
| 12. | 4190261 | [3] | CLIP | |
| 13. | J901020 | [3] | BOLT | |
| 14. | A590110 | [3] | WASHER;PLANE | |
| 15. | A590910 | [3] | WASHER;SPRING | |
| 16. | 8069533 | [1] | LEVER | |
| 17. | 4280117 | [1] | GRIP | |
| 20. | 4279507 | [1] | COLLER | |
| 21. | 4280297 | [1] | BUSHING | |
| 22. | 449490 | [1] | WASHER | |
| 23. | A590912 | [1] | WASHER;SPRING | |
| 24. | J901250 | [1] | BOLT | |
| 25. | M500605 | [1] | NUT | |
| 26. | A590906 | [1] | WASHER;SPRING | |
| 27. | A590106 | [1] | WASHER;PLANE | |
| 30. | 8068766 | [1] | BRACKET | |
| 31. | 4383309 | [1] | SPACER | |
| 32. | J020830 | [1] | BOLT;SEMS | |
| 32. | J260830 | [1] | BOLT;SEMS | TJ900830 |
| 32. | J260830 | [1] | BOLT;SEMS | TA590108 |
| 35. | 4276794 | [1] | BUSHING;RUBBER | |
| 36. | 4384264 | [1] | PLATE | |
| 37. | 4190261 | [1] | CLIP | |
| 38. | 9748549 | [1] | BRACKET | |
| 39. | J901030 | [1] | BOLT | |
| 40. | A590910 | [1] | WASHER;SPRING | |
| 41. | A590110 | [1] | WASHER;PLANE | |
| 42. | J021030 | [1] | BOLT;SEMS | |
| 42. | J271030 | [1] | BOLT;SEMS | TJ901030 |
| 42. | J271030 | [1] | BOLT;SEMS | TJ222010 |
| 43. | M500605 | [1] | NUT | |
| 44. | A590906 | [1] | WASHER;SPRING | |
![]()
