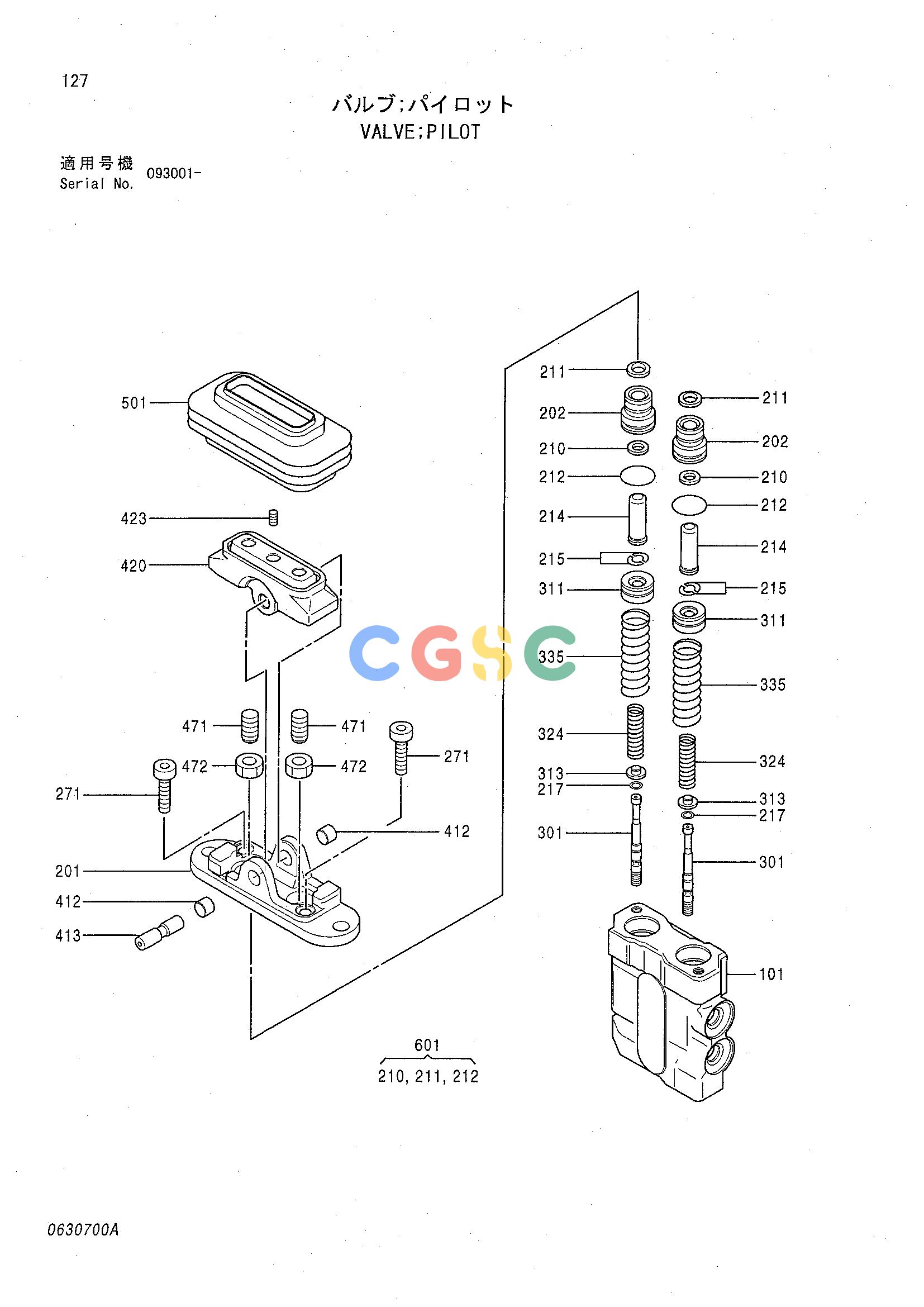

日立零件查询（CHR70）VALVE;PILOT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4330467 | [1] | VALVE;PILOT | 0630700A
|
| 101. | +++++++ | [1] | CASING | |
| 201. | 0630701 | [1] | COVER | |
| 202. | 0630702 | [2] | PLUG | |
| 210. | 0628908 | [2] | SEAL | |
| 211. | 0630703 | [2] | SCRAPER | |
| 212. | 4506420 | [2] | O-RING | |
| 214. | 0630704 | [2] | ROD;PUSH | |
| 215. | 0428906 | [4] | WASHER | |
| 217. | 0428907 | [2] | WASHER | |
| 271. | 0630705 | [2] | BOLT;SOCKET | |
| 301. | +++++++ | [2] | SPOOL | |
| 311. | 0630706 | [2] | SEAT;SPRING | |
| 313. | 0428910 | [2] | WASHER;SPRING | |
| 324. | 0630707 | [2] | SPRING | |
| 335. | 0630708 | [2] | SPRING | |
| 412. | 0630709 | [2] | BUSHING | |
| 413. | 0630710 | [1] | SHAFT;CAM | |
| 420. | 0630711 | [1] | CAM | |
| 423. | 0179001 | [1] | SCREW | |
| 471. | 0630712 | [2] | SCREW;SET | |
| 472. | 0630713 | [2] | NUT;LOCK | |
| 501. | 0630714 | [1] | BELLOWS | |
| 601. | 4345769 | [1] | KIT;SEAL | |
![]()
