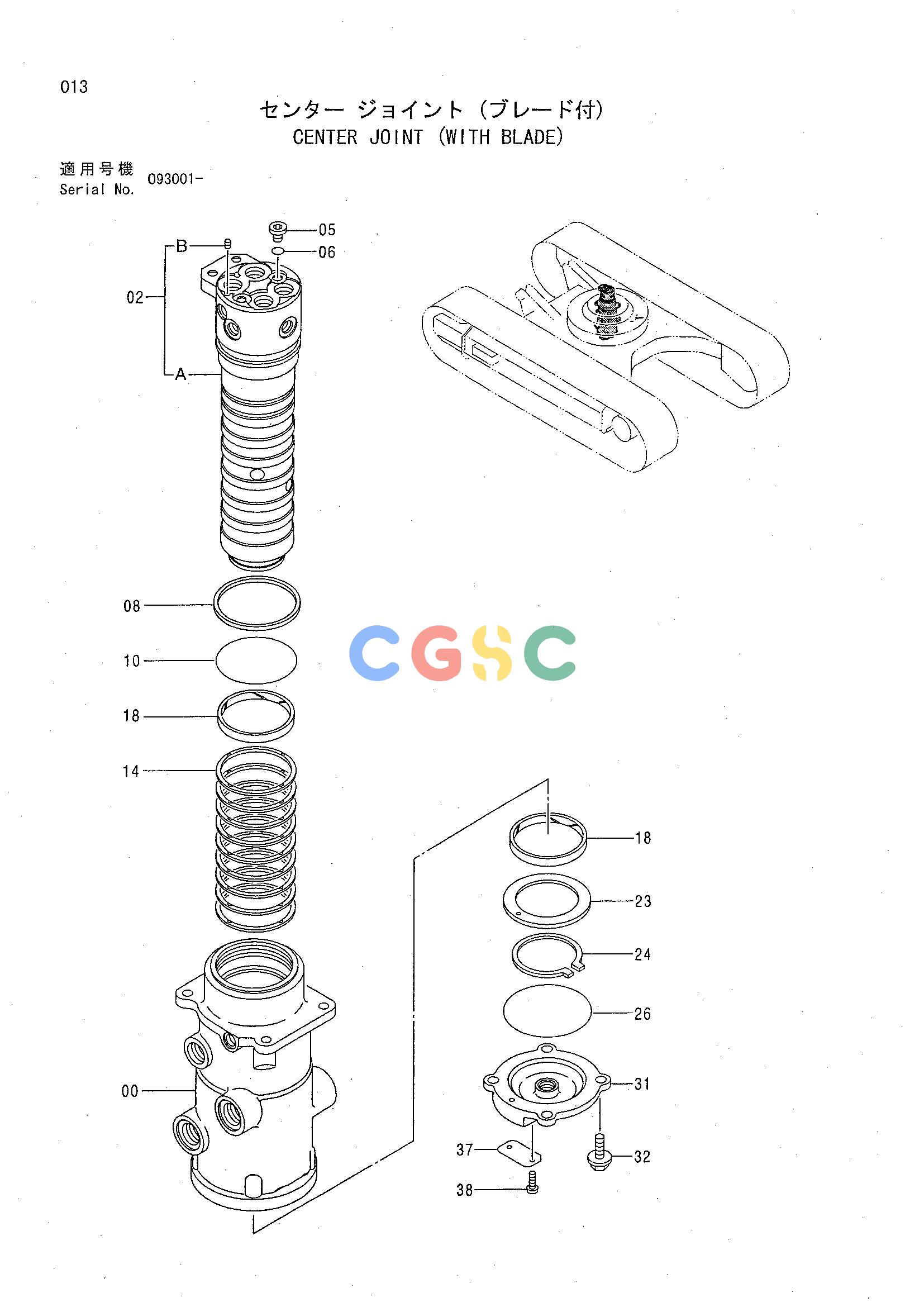

日立零件查询（CHR70）CENTER JOINT (WITH BLADE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9145933 | [1] | JOINT;CENTER ASS'Y | |
| 00. | 0002050 | [1] | BODY | |
| 02. | 9145934 | [1] | SPINDLE | |
| 02A. | +++++++ | [1] | SPINDLE | |
| 02B. | +++++++ | [2] | PLUG | |
| 05. | 4336167 | [2] | PLUG | |
| 06. | 4509180 | [2] | O-RING | |
| 08. | 4359551 | [1] | SEAL;DUST | |
| 10. | 4359552 | [1] | O-RING | |
| 14. | 4359550 | [9] | SEAL;OIL | |
| 18. | 4359549 | [2] | BUSHING | |
| 23. | 4359548 | [1] | RING | |
| 24. | 991350 | [1] | RING;RETAINING | |
| 26. | A810125 | [1] | O-RING | |
| 31. | 3074241 | [1] | COVER | |
| 32. | J011230 | [4] | BOLT;SEMS | |
| 32. | J271230 | [4] | BOLT;SEMS | TJ901230 |
| 32. | J271230 | [4] | BOLT;SEMS | TJ222012 |
| 37. | +++++++ | [1] | NAME-PLATE | |
| 38. | M492564 | [2] | SCREW;DRIVE | |
![]()
