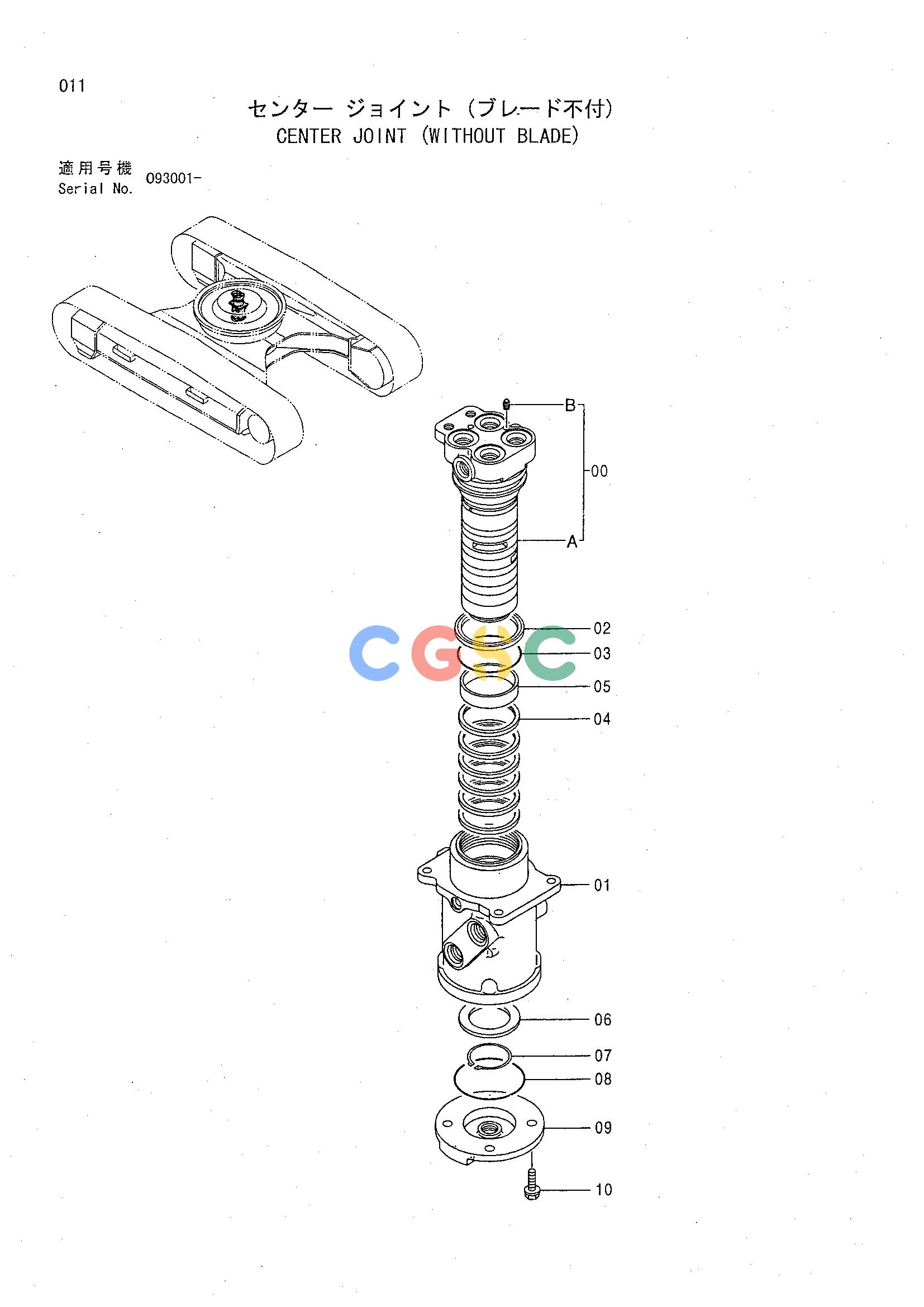

日立零件查询（CHR70）CENTER JOINT (WITHOUT BLADE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9101521 | [1] | JOINT;CENTER ASS'Y | |
| 00. | 9145787 | [1] | SPINDLE ASS'Y | |
| 00A. | 0001193 | [1] | SPINDLE | |
| 00B. | 4239611 | [1] | PLUG | |
| 01. | 0003542 | [1] | BODY | |
| 02. | 4390776 | [1] | SEAL;DUST | |
| 03. | 4367664 | [1] | O-RING | |
| 04. | 4231543 | [6] | SEAL;OIL | |
| 05. | 4241780 | [1] | BUSHING | |
| 06. | 3070250 | [1] | RING | |
| 07. | 991347 | [1] | RING;RETAINING | |
| 08. | A810100 | [1] | O-RING | |
| 09. | 2034607 | [1] | COVER | |
| 10. | J011030 | [4] | BOLT;SEMS | |
| 10. | J271030 | [4] | BOLT;SEMS | TJ901030 |
| 10. | J271030 | [4] | BOLT;SEMS | TJ222010 |
![]()
