| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

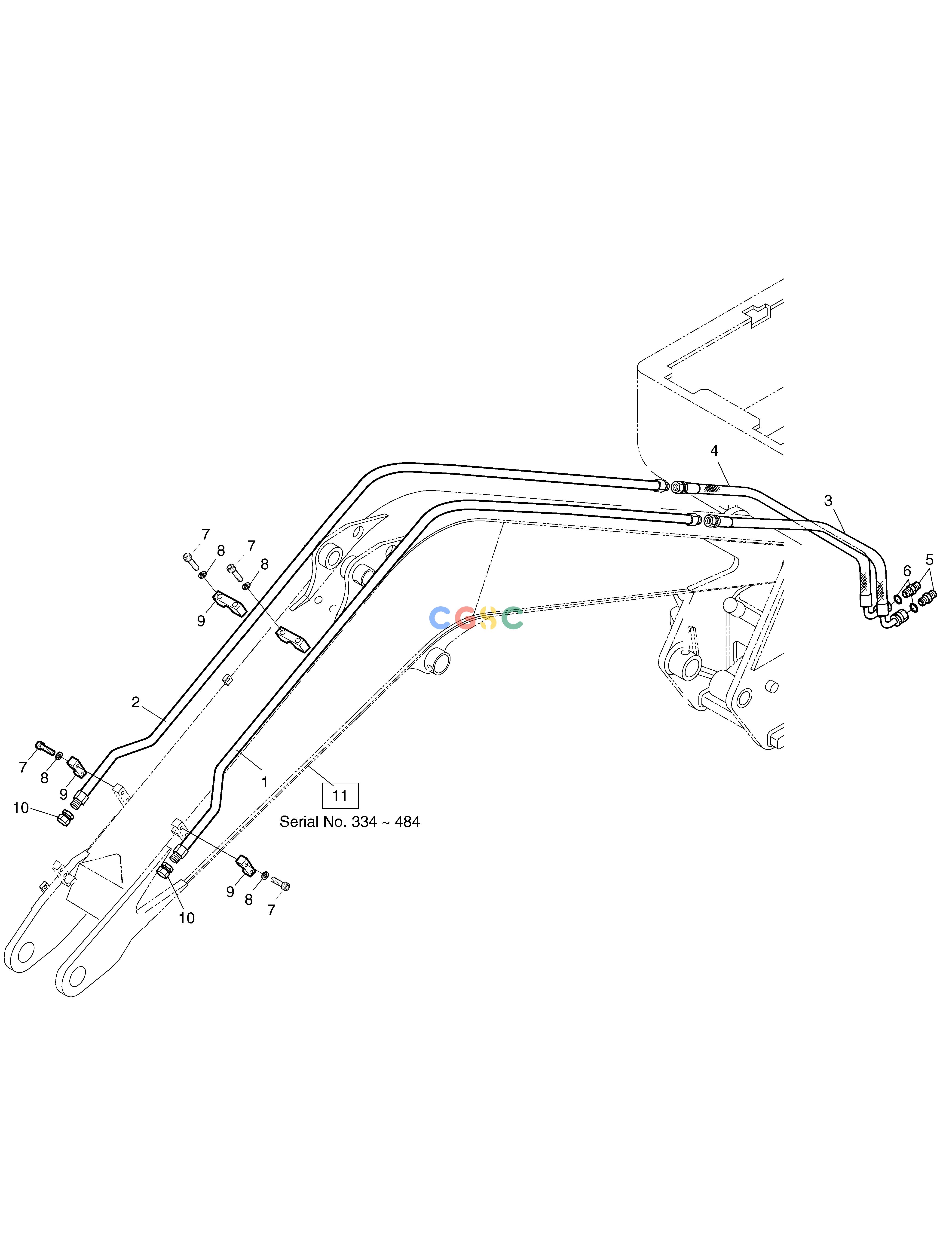

| -. | 2400-2148 | [-] | BREAKER PIPING-ONE WAY | |
| 1. | 2140-1687 | [1] | PIPE | |
| 10. | 2181-2820D2 | [2] | PLUG | |
| 11. | 2701-1773 | [1] | BOOM ASS'Y | |
| 2. | 2140-1688 | [1] | PIPE | |
| 3. | 2184-1036D376 | [1] | HOSE PF3/8xPF3/8-900L | |
| 4. | 2184-1036D377 | [1] | HOSE PF3/8-1000L | |
| 5. | 2181-1126D23 | [2] | ADAPTER | |
| 6. | S8000181 | [2] | O-RING | |
| 7. | S2209263 | [12] | BOLT;SOCKET M8X1.25X30 | |
| 8. | S5110503 | [12] | WASHER | |
| 9. | 2124-1698 | [12] | CLAMP;PIPE |
