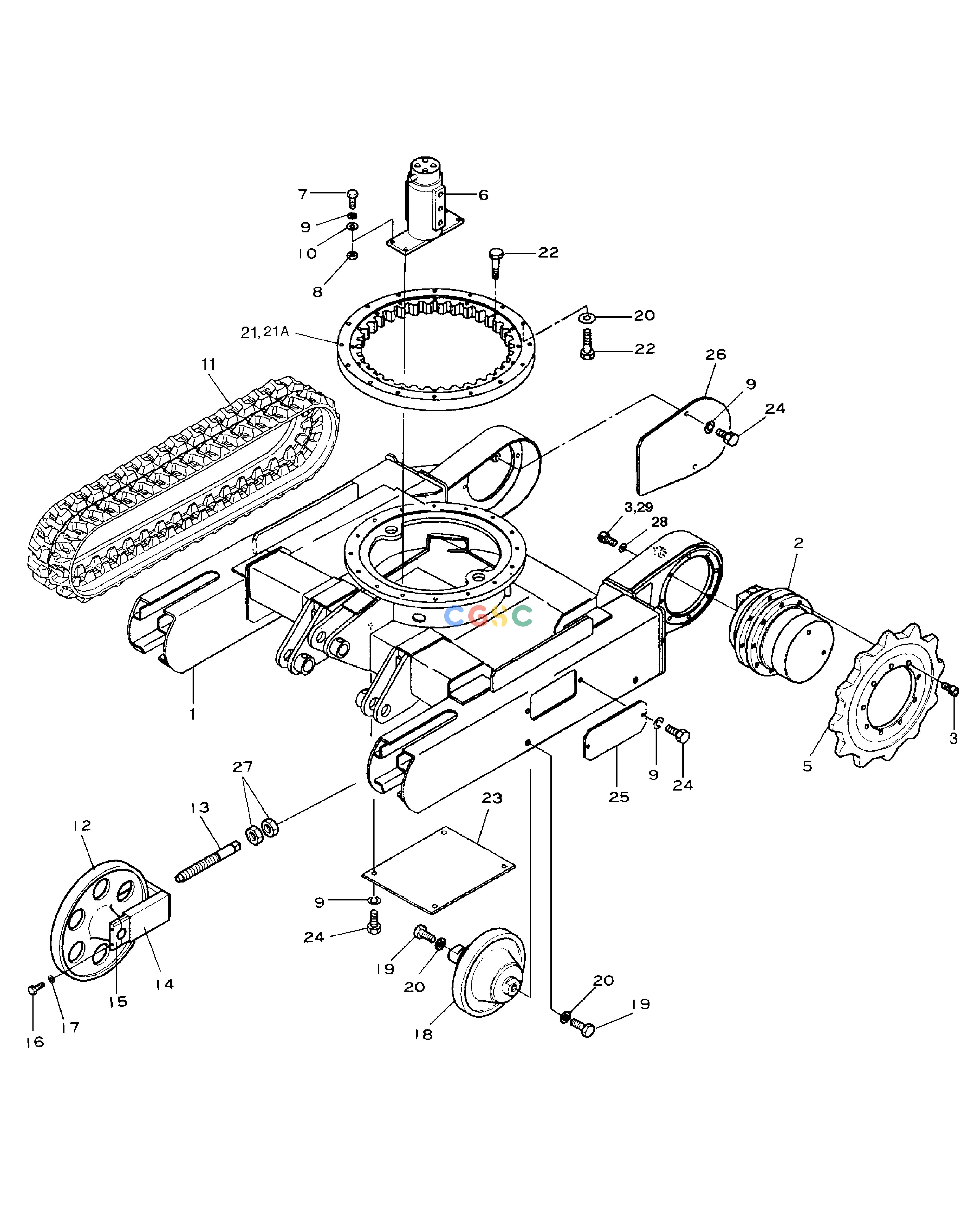

斗山零件查询TRACK ASS'Y-WIDTH 900mm SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2604-1339
|
[-] |
TRACK ASS'Y
|
|
| 1. |
2604-1353
|
[1] |
FRAME;TRACK
|
|
| 1. |
2604-1353A
|
[1] |
FRAME;TRACK
|
|
| 10. |
S5010513
|
[4] |
WASHER
|
|
| 11. |
2272-9034
|
[2] |
RUBBER;TRACK
|
2272-9056
|
| 11. |
2272-9056
|
[2] |
RUBBER;TRACK
|
|
| 12. |
2270-9006
|
[2] |
IDLER ASS'Y
|
|
| 13. |
2120-1476A
|
[2] |
BOLT;ADJUSTER
|
|
| 14. |
2157-1025
|
[2] |
YOKE
|
2157-1025A
|
| 14. |
2157-1025A
|
[2] |
YOKE
|
|
| 15. |
2124-1511
|
[4] |
CLAMP
|
|
| 16. |
S2205261
|
[8] |
BOLT
|
|
| 17. |
S5102303
|
[8] |
. WASHER
|
|
| 18. |
2270-9008
|
[4] |
ROLLER;LOWER
|
|
| 19. |
S0515053
|
[8] |
BOLT M12X1.75X25
|
|
| 2. |
2401-9170
|
[2] |
MOTOR;TRAVEL
|
|
| 20. |
S5102703
|
[20] |
WASHER
|
|
| 21. |
2109-9049
|
[1] |
BEARING;SWING
|
|
| 21A. |
180-00297D1
|
[1] |
SEAL
|
|
| 22. |
S0560853
|
[24] |
BOLT M12X1.75X55
|
|
| 23. |
2213-1072A
|
[1] |
COVER;UNDER
|
|
| 23. |
2213-1072B
|
[1] |
COVER;UNDER
|
|
| 24. |
S0508653
|
[12] |
BOLT
|
|
| 25. |
2213-1073A
|
[2] |
COVER;SIDE
|
|
| 25. |
2213-1073B
|
[2] |
COVER;SIDE
|
|
| 26. |
2213-1074A
|
[2] |
COVER;MOTOR
|
|
| 26. |
2213-1074B
|
[2] |
COVER;MOTOR
|
|
| 27. |
S4035231
|
[4] |
NUT M22X1.5
|
|
| 28. |
S5110601
|
[16] |
WASHER;SPRING M10
|
|
| 29. |
S2212061
|
[14] |
BOLT;SOCKET M10X1.5X25
|
|
| 3. |
S2211961
|
[20] |
BOLT M10X1.5X22
|
|
| 5. |
2108-9001A
|
[2] |
SPROCKET
|
|
| 6. |
2181-9085B
|
[1] |
JOINT;CENTER
|
|
| 7. |
S0509353
|
[4] |
BOLT M8X1.25X35
|
|
| 8. |
S4012533
|
[4] |
NUT
|
|
| 9. |
S5102503
|
[16] |
. WASHER
|
|
![]()
