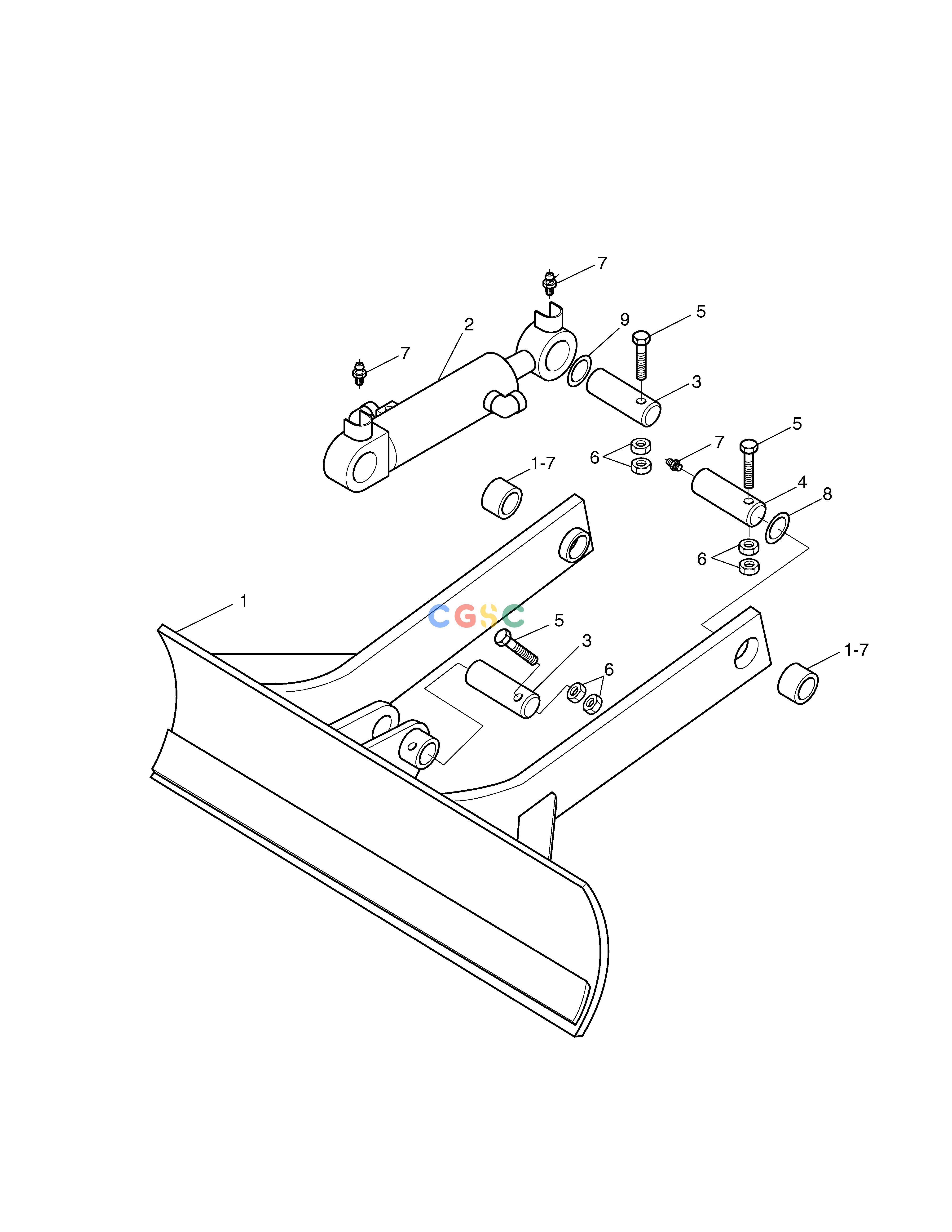

斗山零件查询BLADE-1100mm SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2608-1050
|
[-] |
BLADE ASS'Y
|
|
| 1. |
2608-1057A
|
[1] |
BLADE;DOZER-1100mm
|
2608-1057B
|
| 1. |
2608-1057B
|
[1] |
BLADE;DOZER-1100mm
|
|
| 1. |
2608-1057
|
[1] |
BLADE;DOZER-1100mm
|
|
| 1-7. |
2110-1211
|
[2] |
BUSH
|
|
| 2. |
2440-9177B
|
[1] |
CYLINDER;DOZER
|
|
| 2. |
2440-9177C
|
[1] |
CYLINDER;DOZER
|
|
| 3. |
2123-1843
|
[2] |
PIN
|
|
| 4. |
2123-1844
|
[2] |
PIN
|
|
| 5. |
S0509753
|
[4] |
BOLT M8X1.25X55
|
|
| 6. |
S4012533
|
[8] |
NUT
|
|
| 7. |
S6710042
|
[4] |
NIPPLE;GREASE
|
|
| 8. |
2114-1059D211
|
[4] |
SHIM
|
|
| 9. |
2114-1059D205
|
[4] |
SHIM
|
|
![]()
